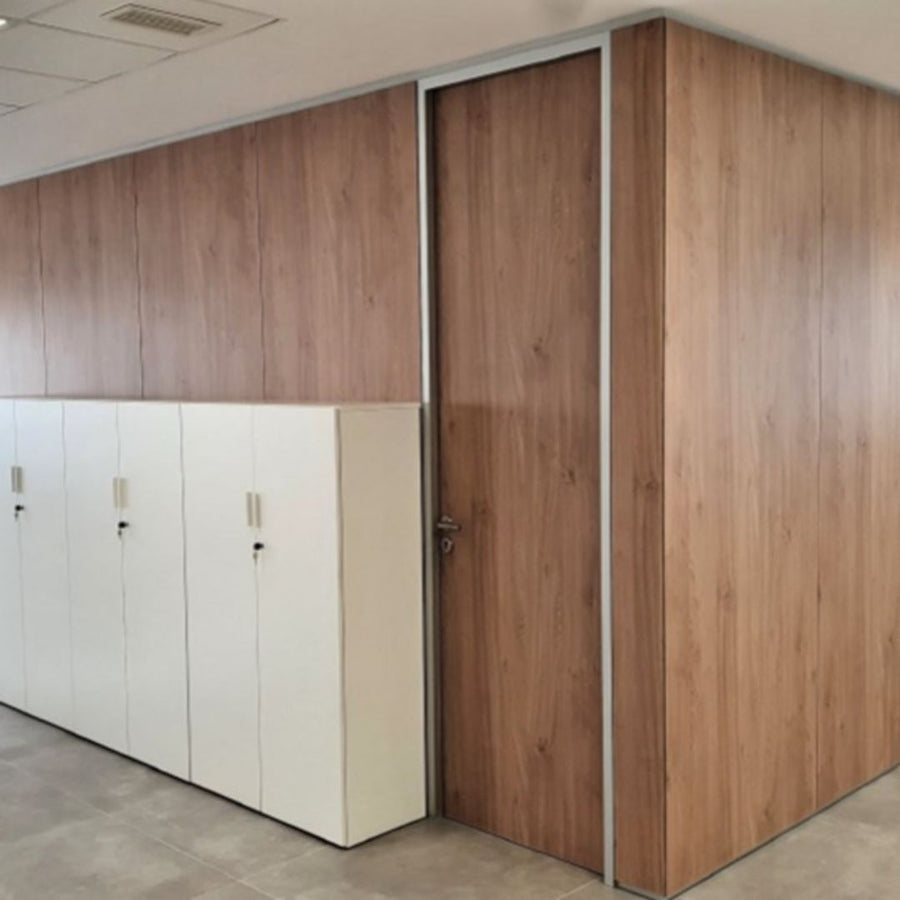

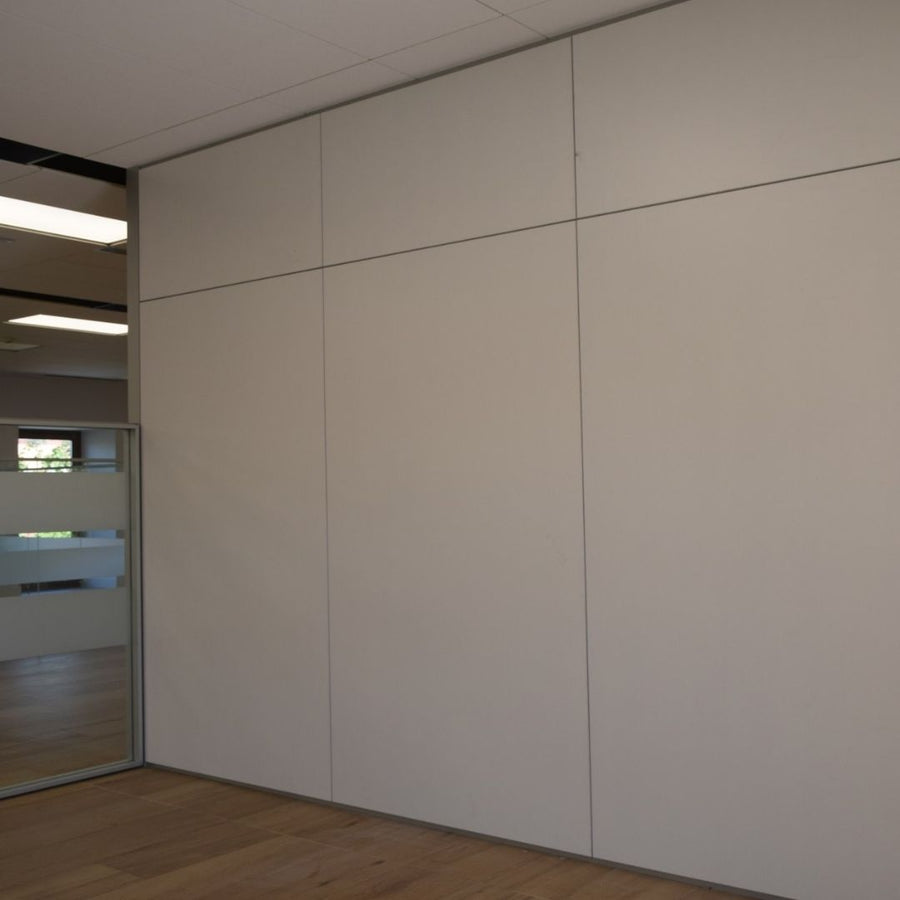

SOLID 90 OFFICE SCREENS | BLIND

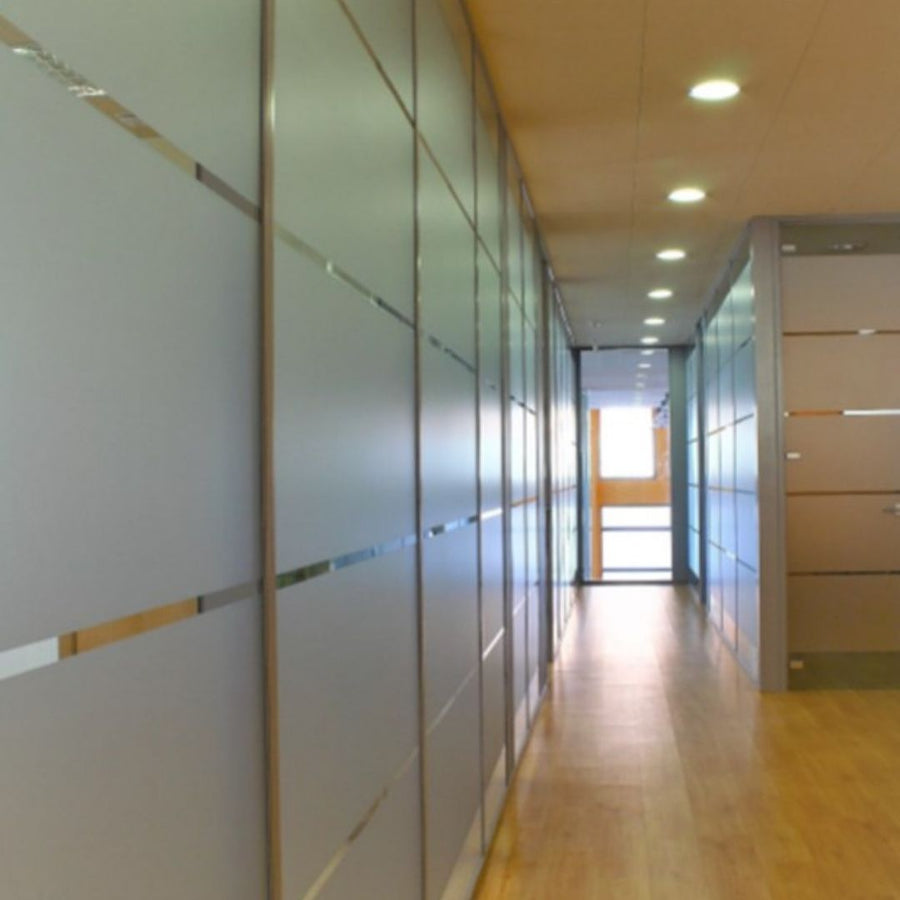

SOLID 90 3+3 DOUBLE GLASS SCREENS.

IDM Series modular glass screen of 90, Glass elevation dividing partition up to 90 mm thick ceiling in variable vertical modulation up to a maximum width of 1200 mm. With SOLID series screen with a hidden interior structure of extruded aluminum formed by a perimeter frame, neoprene sealing joints anchored to resistant elements and a system of pilasters and crossbars fixed by means of steel tensioners to the perimeter frame, with visible aluminum channel in standard finish between modules .

Exposed aluminum skirting board in anodized finish, EN-AW-6060 quality.

Glass frames on both sides, 16.. thick, formed by a 3+3 mm thick glass pane, mounted on an aluminum perimeter frame in an anodized or standard lacquered finish, fixed to the aluminum supporting structure, including all elements necessary for installation.

Complies with the structural safety requirements of the New Building Code Sound Reduction, Rw=38 dB.

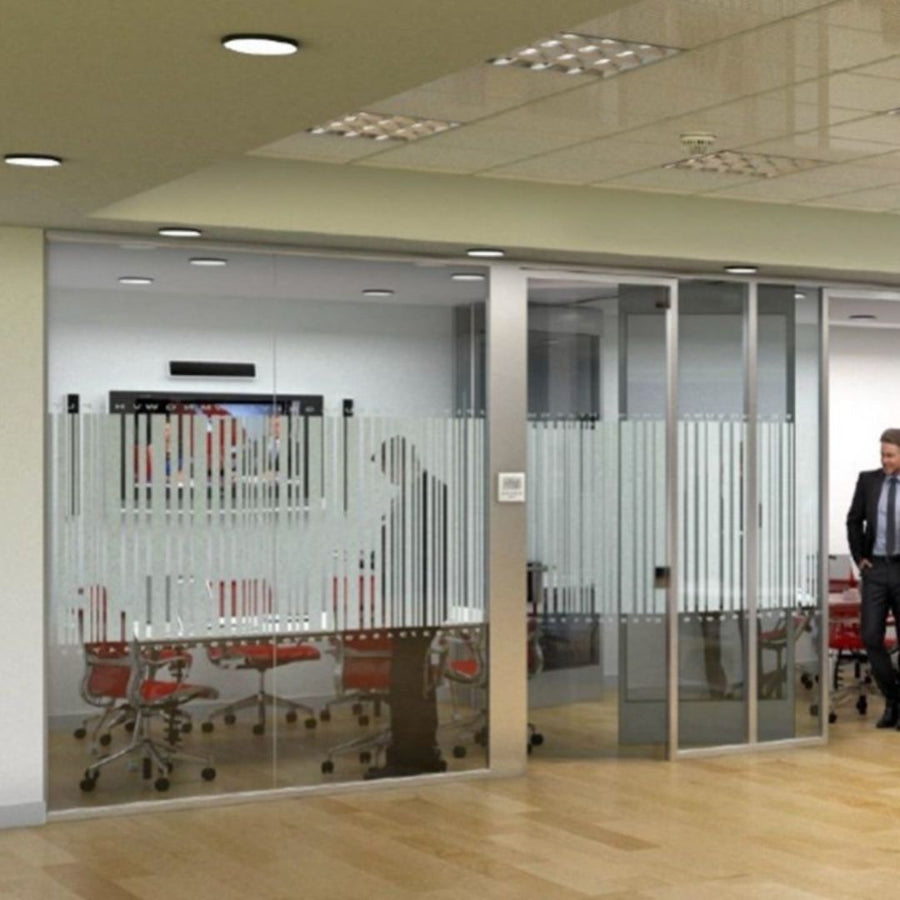

SCREEN 1 SOLID GLASS 90 (5+5 OR 6+6).
IDM Series modular glass screen of 90, Glass elevation dividing partition up to 90 mm thick ceiling in variable vertical modulation up to a maximum width of 1200 mm. With SOLID series screen with a hidden interior structure of extruded aluminum formed by a perimeter frame, neoprene sealing joints anchored to resistant elements and a system of pilasters and crossbars fixed by means of a special bracket to the perimeter frame, with visible aluminum channel in standard finish between modules.

Exposed aluminum skirting board in anodized finish, EN-AW-6060 quality.

Aluminum frames on both sides measuring 16 x 38 mm. Thick, made up of a 3+3 mm thick glass pane and a 5+5 or 6+6 mm thick central glass pane, mounted on an aluminum perimeter frame in an anodized or standard lacquered finish, fixed to the supporting structure of aluminum. Including all the elements necessary for installation.

Sound reduction, Rw=34 dB (5+5)/ 35 dB (6+6).

TYPES OF SOLID 90 SCREENS SYSTEMS

• SOLID 90 BLIND SYSTEM (FLOOR - CEILING).
• SOLID LUX 90 BLIND SYSTEM (FLOOR - CEILING) SCREEN.
• SOLID LUX 90 DOUBLE GLASS SYSTEM (FLOOR - CEILING).
• SOLID 90 DOUBLE GLASS SYSTEM (FLOOR-CEILING).
• SOLID LUX 90 SYSTEM 1 GLASS (FLOOR-CEILING).
• SOLID 90 SYSTEM 1 GLASS SCREEN.
• SOLID 90 HORIZONTAL BLIND SYSTEM.
• SOLID 90 DOUBLE HORIZONTAL GLASS SYSTEM (FLOOR - CEILING).
• SOLID 90 SYSTEM 1 HORIZONTAL GLASS (FLOOR - CEILING).
• SOLID 90 MIXED BLIND-DOUBLE GLASS SYSTEM (FLOOR - CEILING)
• SOLID 90 MIXED BLIND SYSTEM -1 GLASS.
• SOLID 90 MIXED DOUBLE BLIND SYSTEM -1 GLASS (FLOOR - CEILING).
• SOLID 90 SYSTEM 1 CONTINUOUS GLASS.
• SOLID 90 DOUBLE GLASS BIOMBO SYSTEM.
• SOLID 90 MIXED DOUBLE BLIND - DOUBLE GLASS SYSTEM.
• SOLID 90 MIXED DOUBLE BLIND - DOUBLE GLASS SYSTEM.

TYPES OF SOLID 90 SCREENS DOOR SYSTEMS

• SOLID 90 SYSTEM FOLDING GLASS DOOR—PV10.
• SOLID 90 SYSTEM BLIND FOLDING DOOR PC45.
• SOLID 90 SYSTEM DOUBLE GLASS FOLDING DOOR—PVD45.
• SOLID 90 SYSTEM FOLDING DOOR 1 GLASS—PV45.
