SANITARY CABINS

Sanitary cabins are a widely used element for the rapid construction of toilets for public use. For a correct planning of the work, the sanitary cabins can be installed after having done all the work, even after having installed the toilets. Since it is a bespoke product, it will adjust to the work once it is done. It is interesting that the position of the toilets is evenly distributed to achieve aesthetic uniformity in the position of the doors and central panels.

Countertops made of phenolic with installation of sinks, blinds/urinal dividers installed on the wall or even large flags for greater privacy at the entrance and exit to the bathrooms.

main features

  • Sanitary cubicle made up of a compact phenolic panel and AISI304 stainless steel fittings.
  • The standard width of a door is 625mm. and the total width of one cabin is about 900mm.
  • The depth, in case the doors open inwards, is usually about 1600mm and we can reduce it to 1400 or less if we open the doors outwards. The most common way is usually with an inward opening to prevent us from hitting another person when opening.
  • Phenolic resin panel with a 12mm thick black core, completely resistant to water and easy to clean.
  • Height adjustable stainless steel legs
  • Overall panel height 1800mm. Total height including legs and top rail 2000mm.

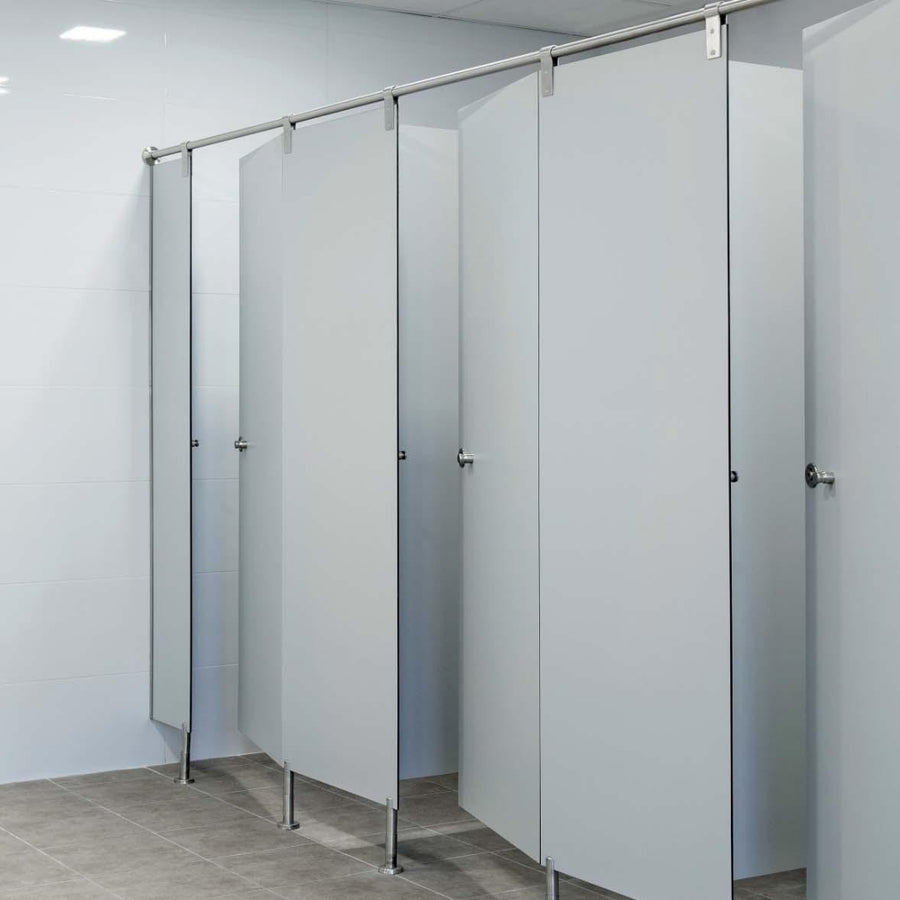

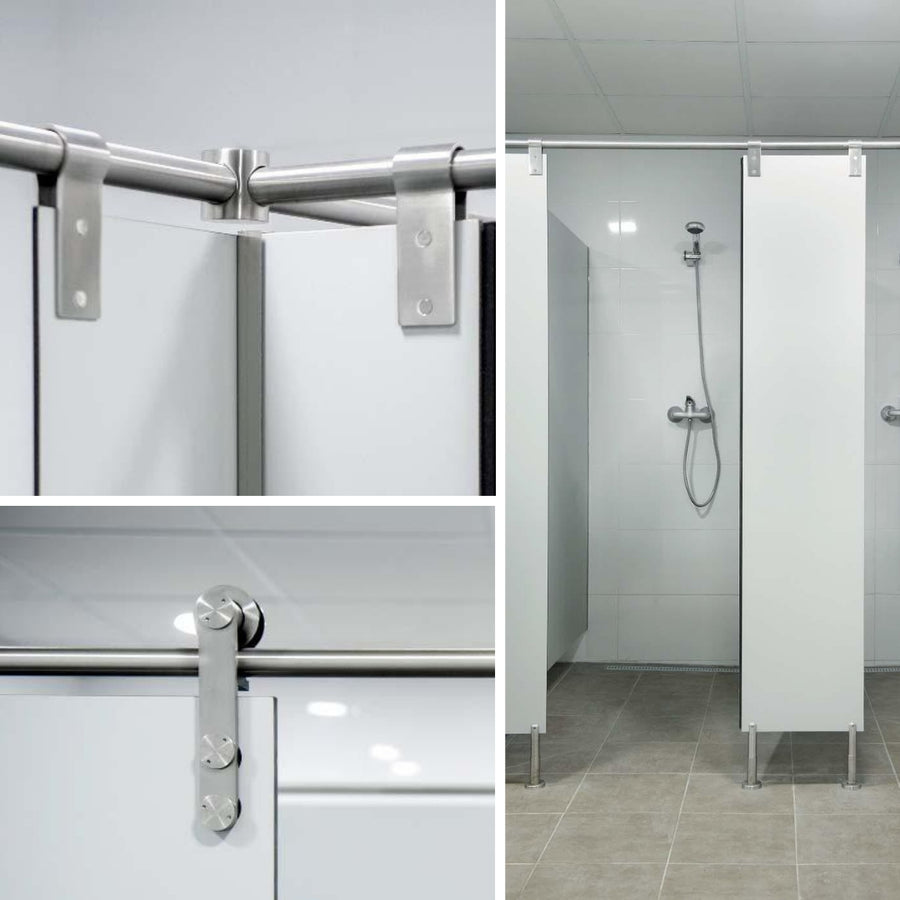

  • The panel's upper fastening system can be by means of an aluminum profile or by means of a stainless steel tube and clip.
  • The phenolic panels are milled so that they overlap each other for greater privacy.
  • The stainless steel hinges can have an internal spring for automatic closing.
  • The closing sentence has an external free-occupied indicator and a self-locking system that allows it to be opened from the outside if necessary.
  • The wall starts are made by means of a U rail screwed to the wall and riveted against the panel.
  • The corners are finished with an angular profile in stainless steel or anodized aluminum.
  • The doors have a handle and can be equipped with a stainless steel coat rack stopper.

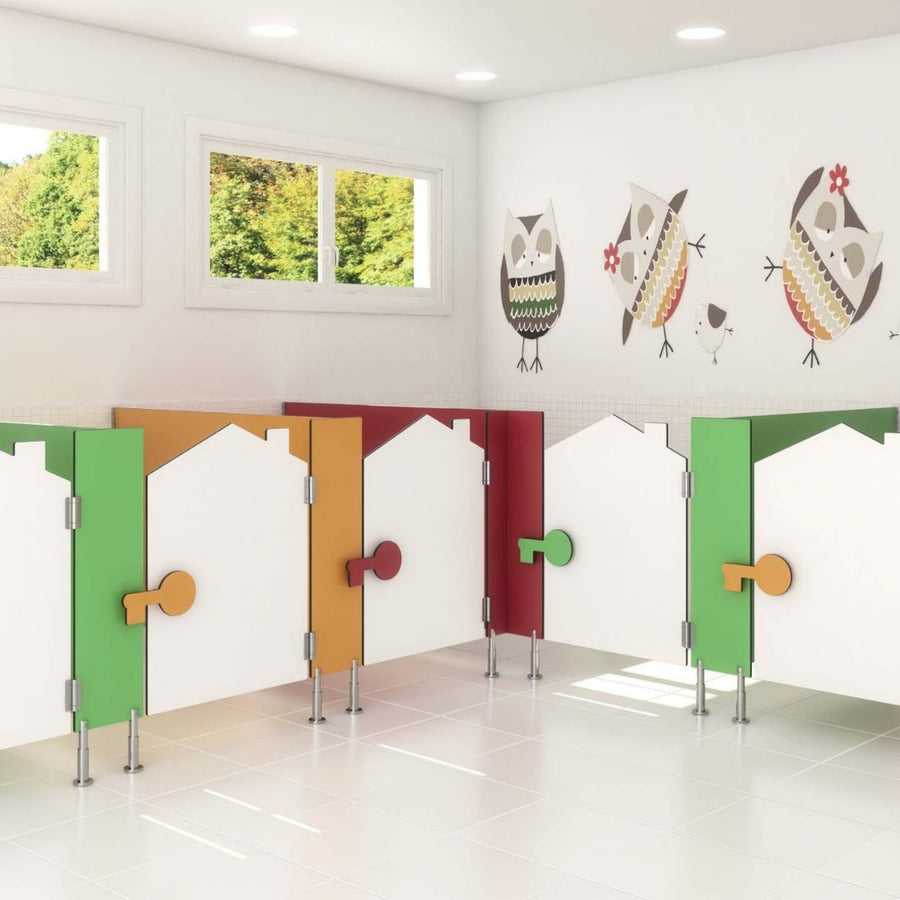

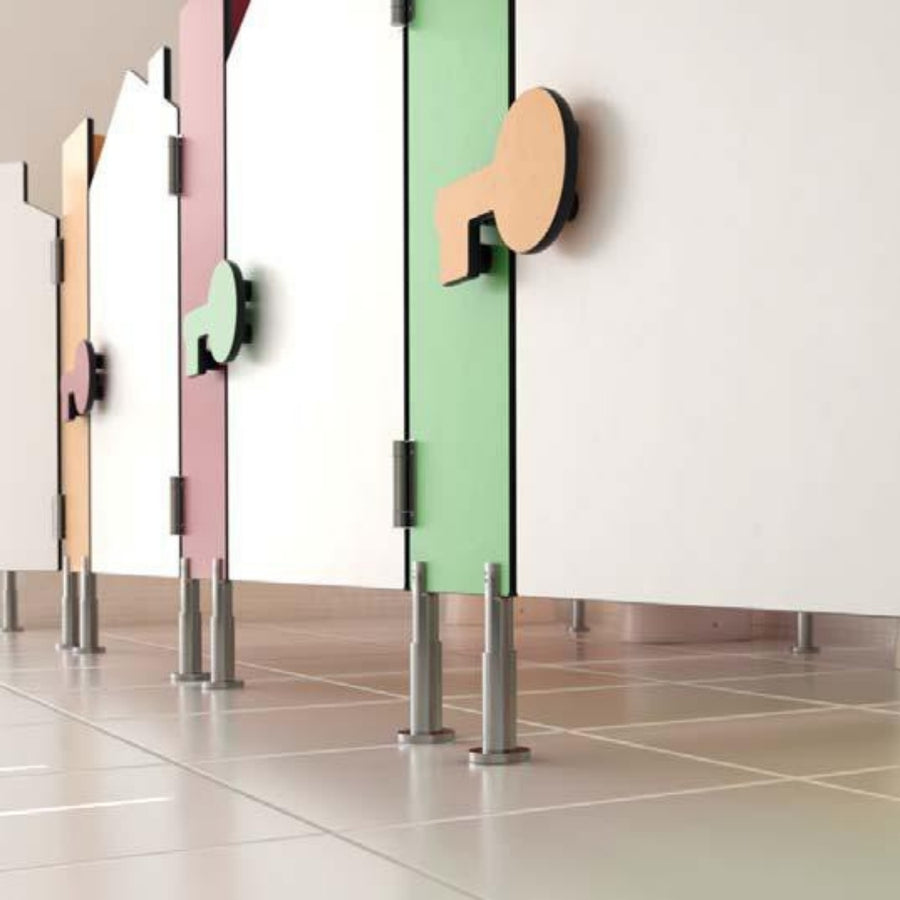

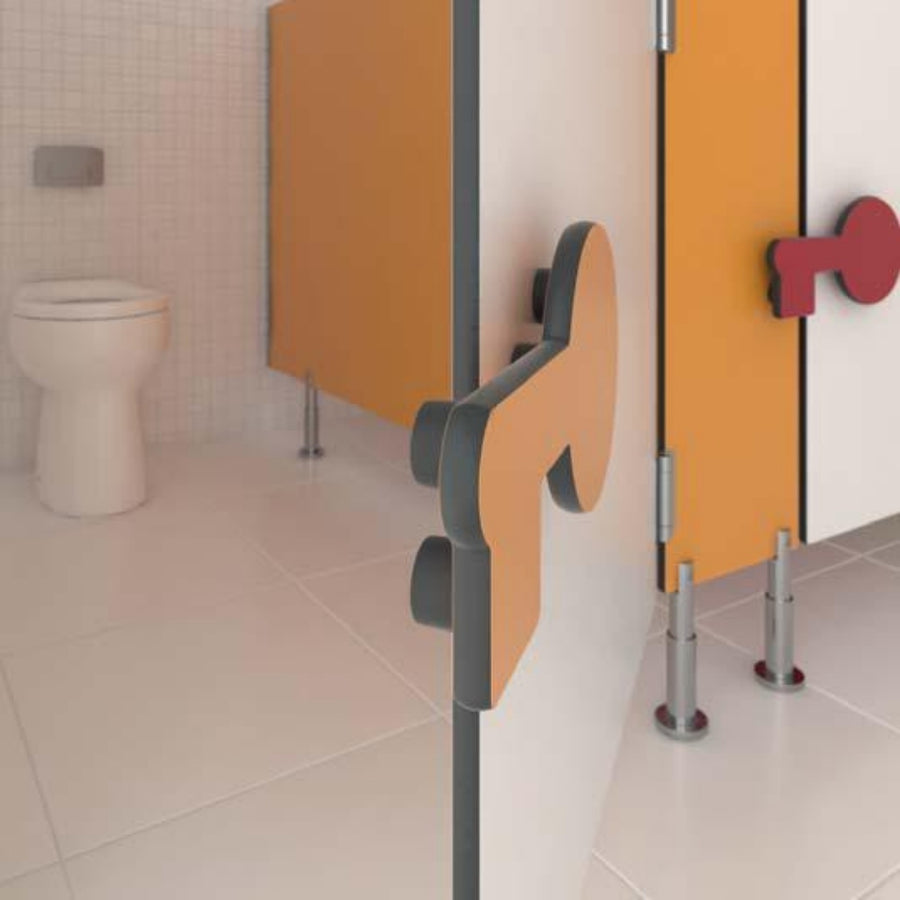

  • We have designed a system of Laluilolo children's cabins for the little ones for use in nurseries and kindergartens.
  • The sanitary cabin system allows the use of wider sliding doors for people with reduced mobility.


    Delivery Time: Consult
    Place of Origin: Spain
    Type of Shipping: Sea and Air (Note: The actual time of transport will be defined at the time of purchase).
