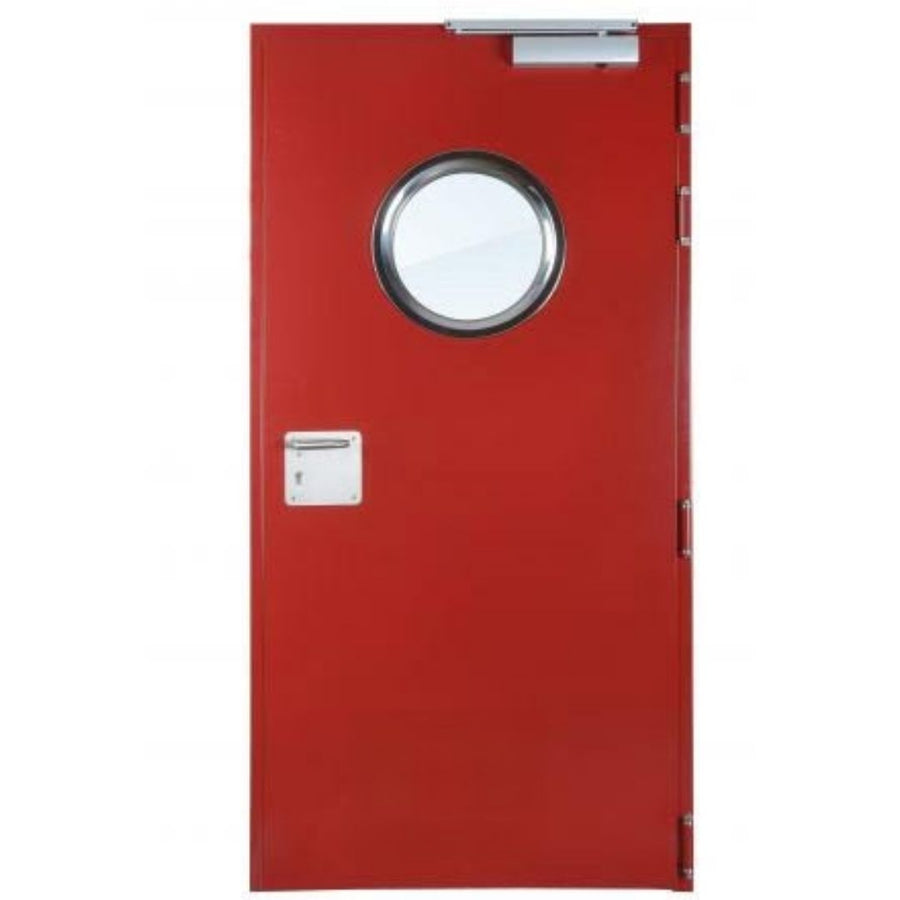

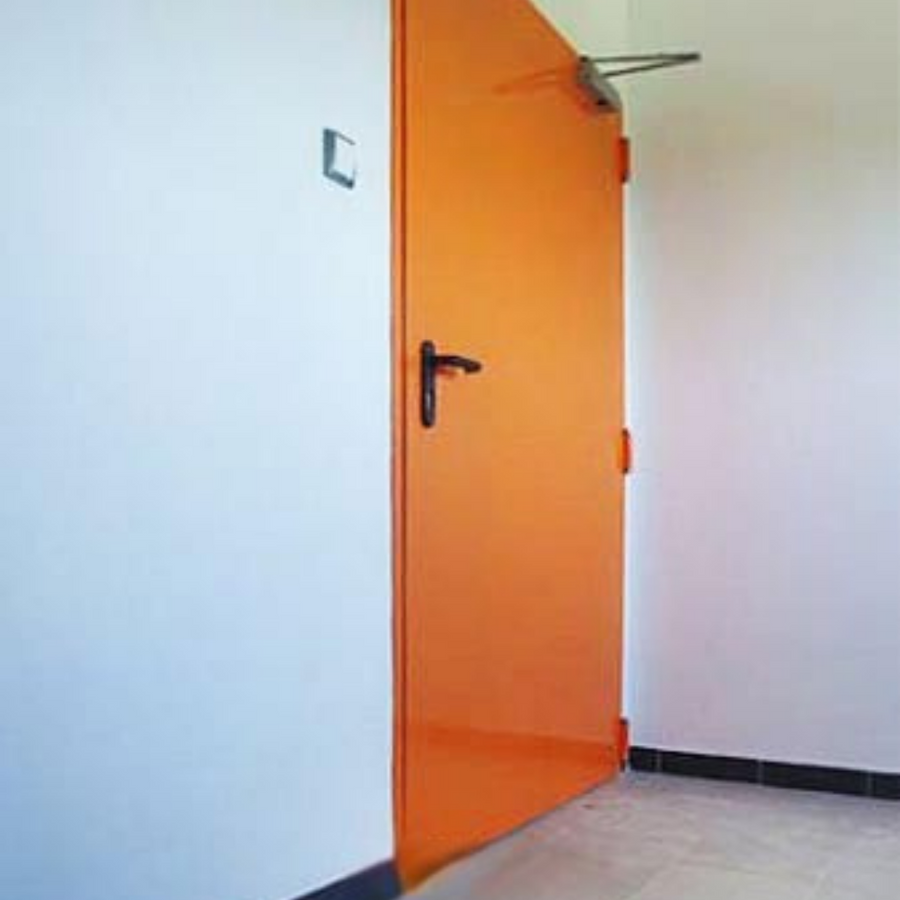

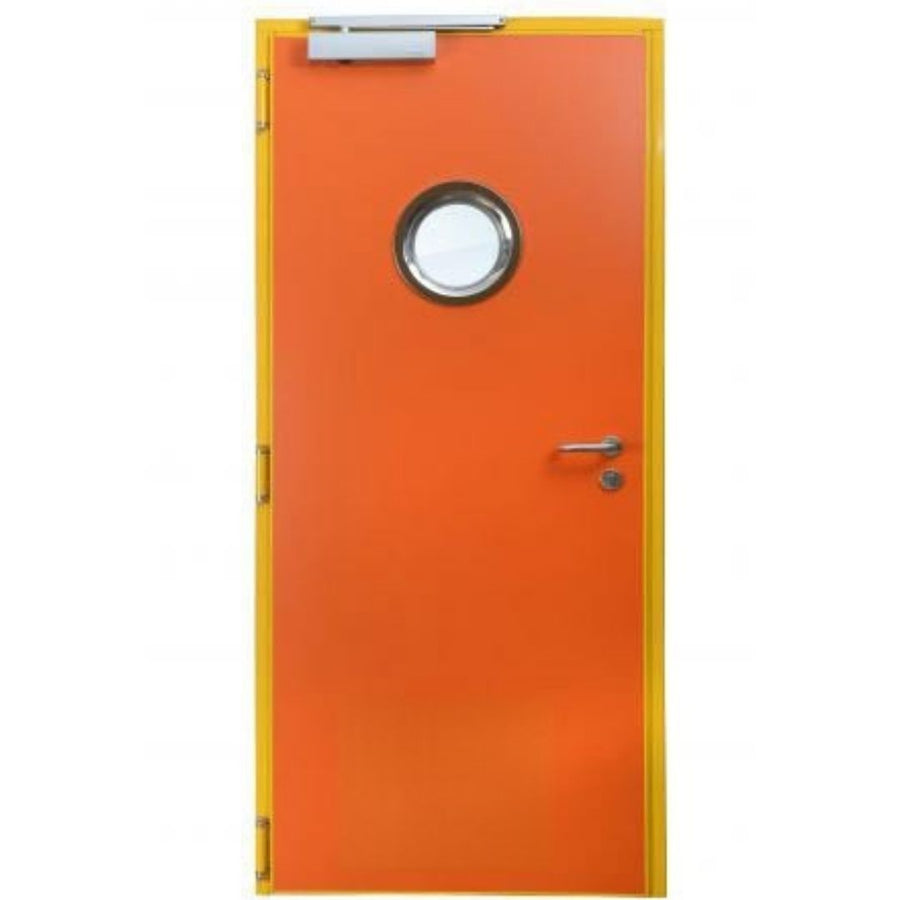

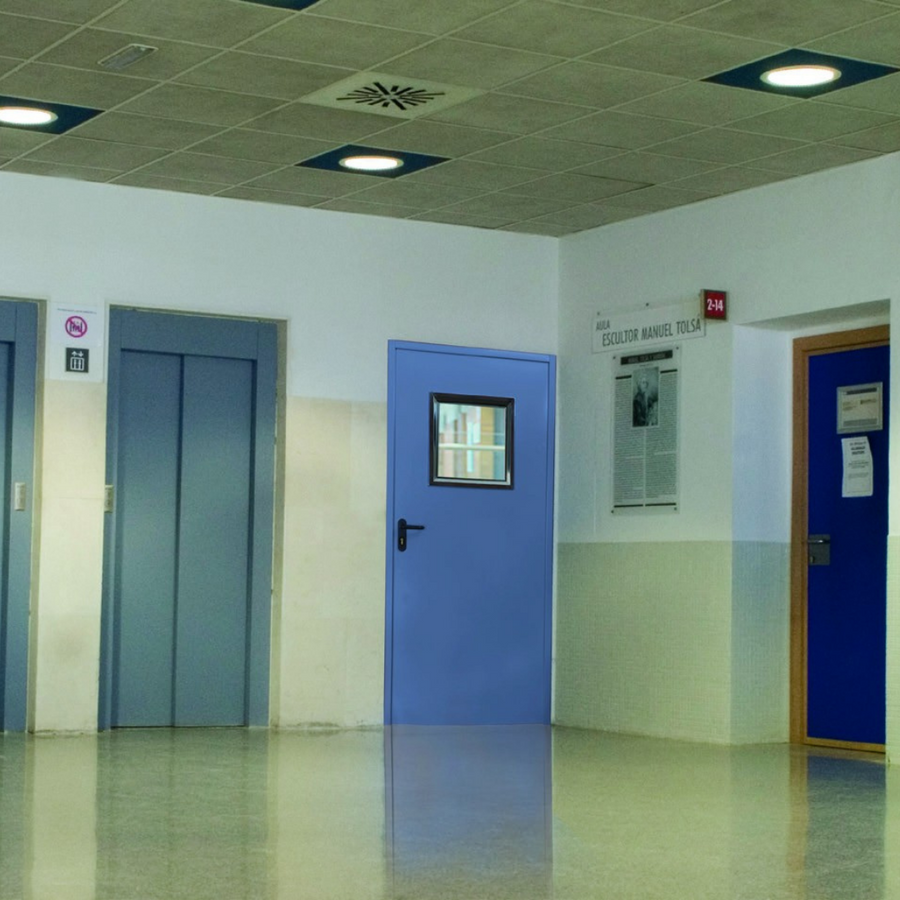

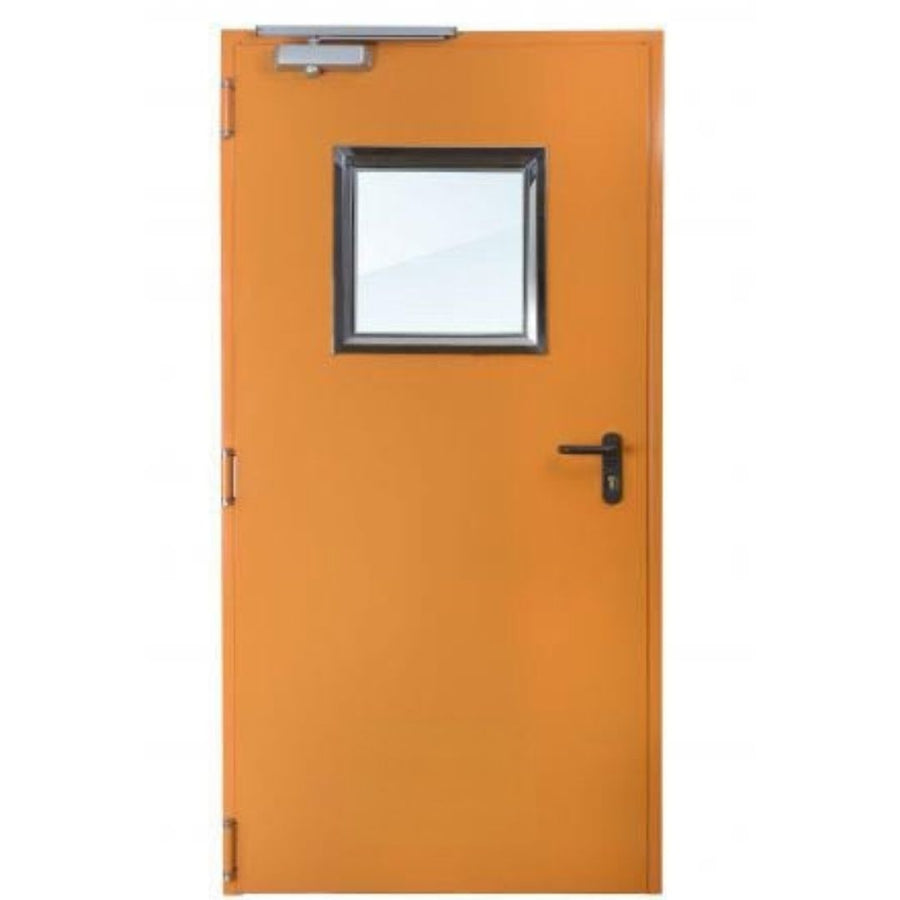

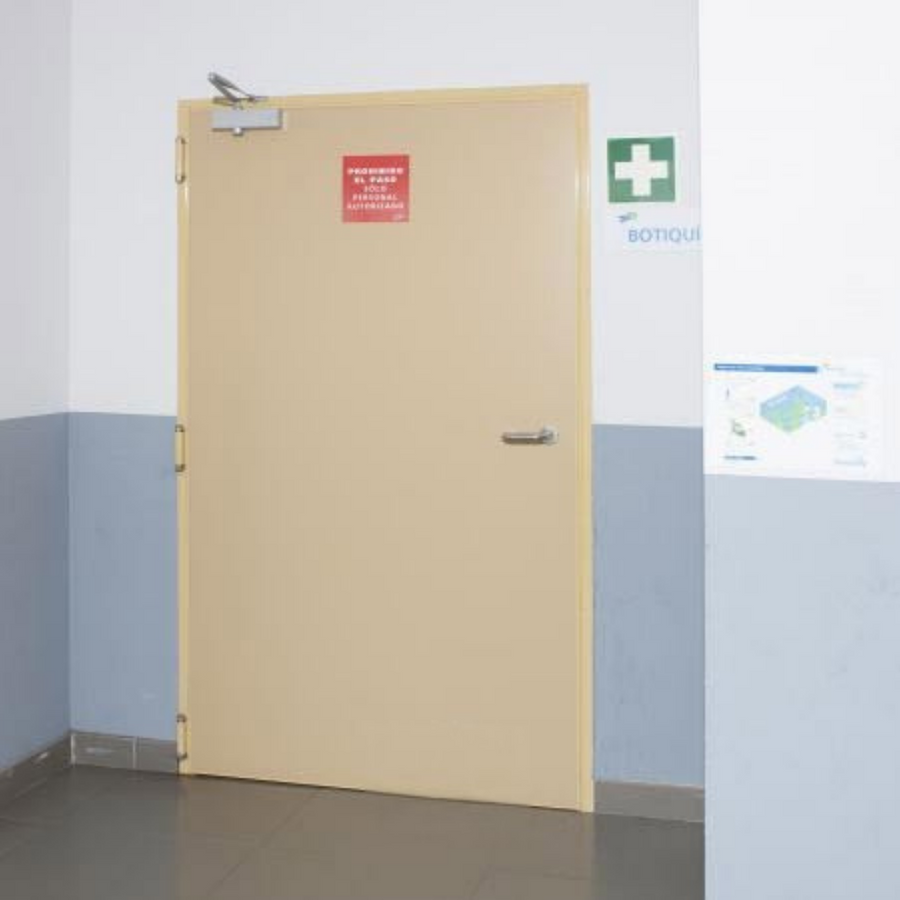

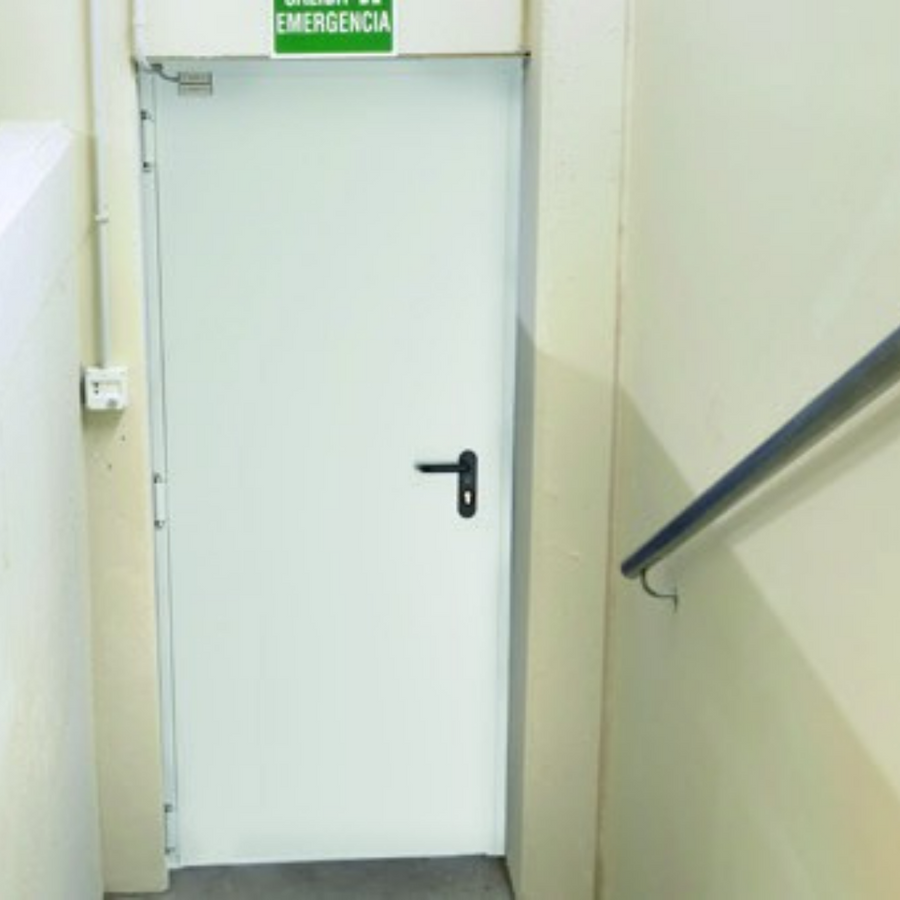

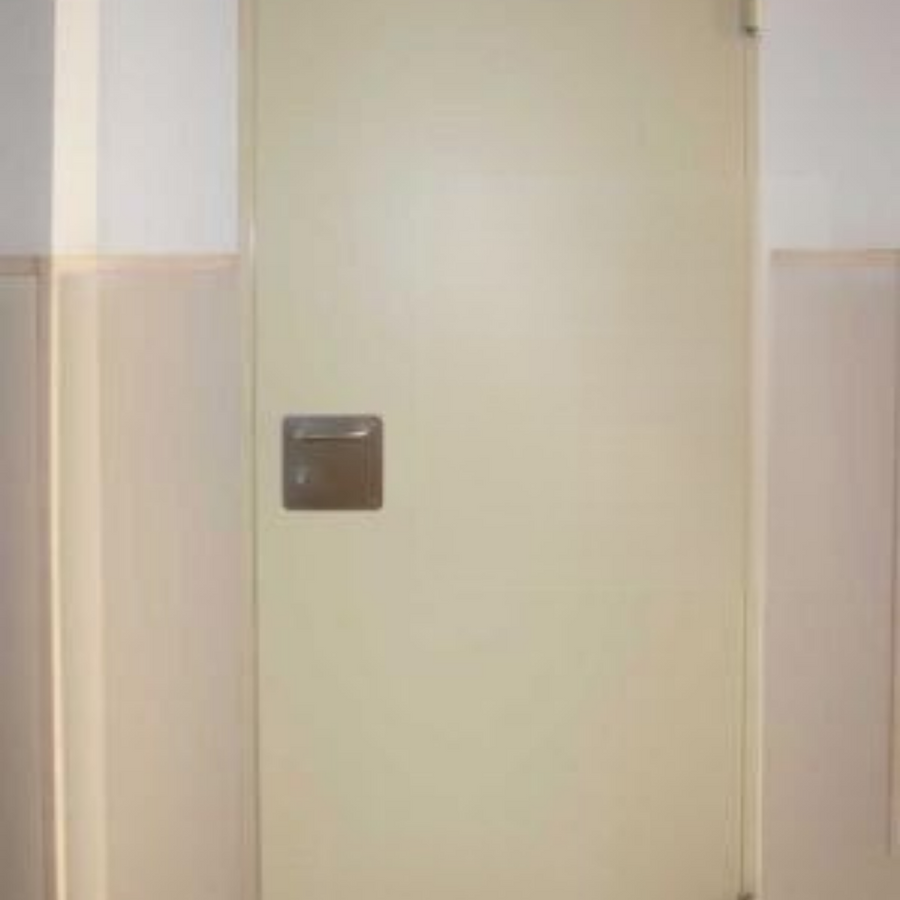

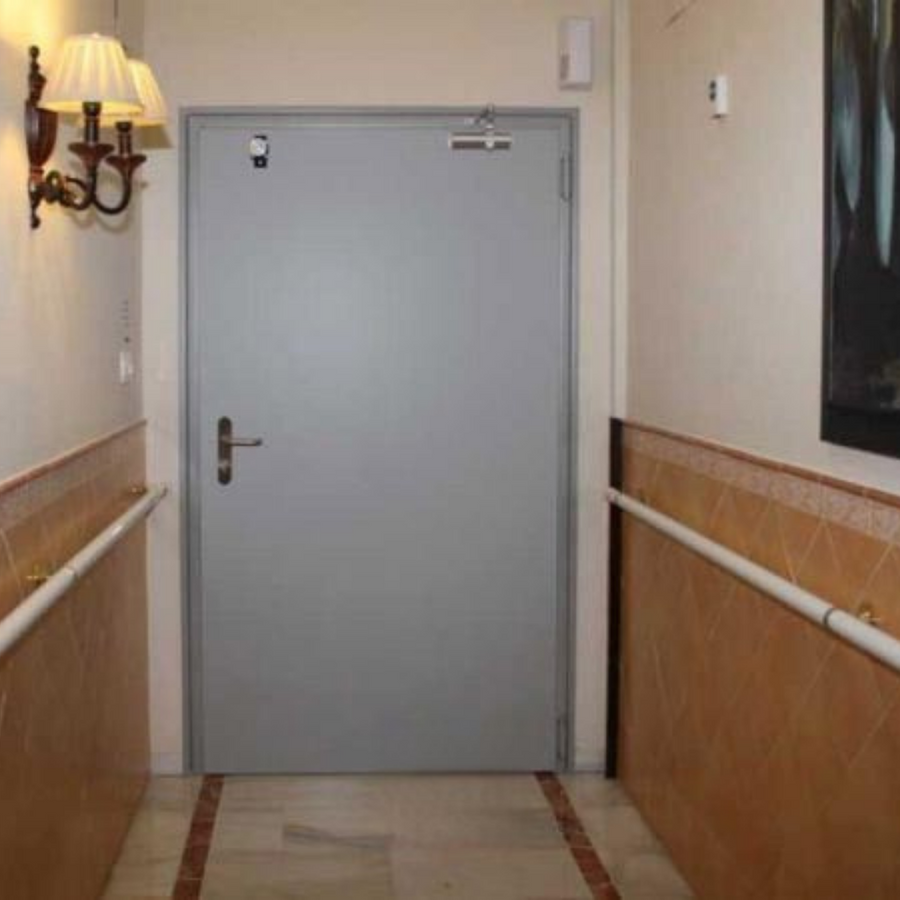

ACOUSTIC FIRE DOOR | TURIA PHONE

 Fire-rated door, with acoustic insulation of 33, 34, 35, 36 and 39 dB. Available in 1 sheet. With built-in automatic draft excluder.


Characteristics:
  • Fire-rated door with acoustic performance EI 2 00 of 35 dB, EI 2 60 of 36 dB, EI 2 90 of 36 dB, EI 2 120 of 39 dB, available in a sheet, tested under UNE-EN ISO 10140 standards. 2:2011 and UNE-EN 1191:2000.

  • Door with Peephole EI 2 60 of 33 dB, EI 2 90 of 33 dB, EI 2 120 of 34 dB.
  • 63 mm thick blade, built with two 0.8 mm steel plates, mounted on a corner CS5 frame.
  • Mounts 3 hinges of its own design with CE marking.
  • It has an automatic weatherstripping embedded in the leaf.

    1. Single Leaf Door - Technical Details:
      Nominal Light Frame (Int.Frame) Total (Ext.Frame)
      Frame Broad High Broad High Broad High Broad High
      CS5 900 2050 800 2000 880 2040 936 2068
      900 2100 800 2050 880 2090 936 2118
      900 2150 800 2100 880 2140 936 2168
      1000 2050 900 2000 980 2040 1036 2068
      1000 2100 900 2050 980 2090 1036 2118
      1000 2150 900 2100 980 2140 1036 2168
      1100 2050 1000 2000 1080 2040 1136 2068
      1100 2100 1000 2050 1080 2090 1136 2118
      1100 2150 1000 2100 1080 2140 1136 2168
      1200 2050 1100 2000 1180 2040 1236 2068
      1200 2100 1100 2050 1180 2090 1236 2118
      1200 2150 1100 2100 1180 2140 1236 2168






    Delivery Time: Consult
    Place of Origin: Spain
    Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
