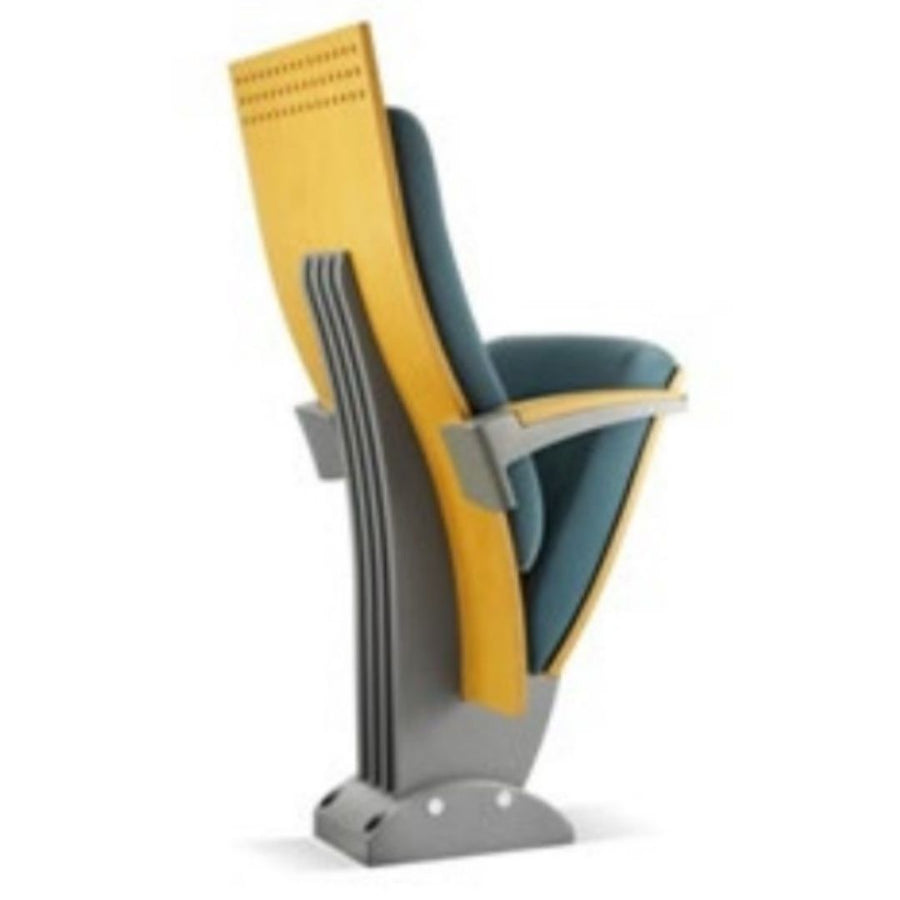

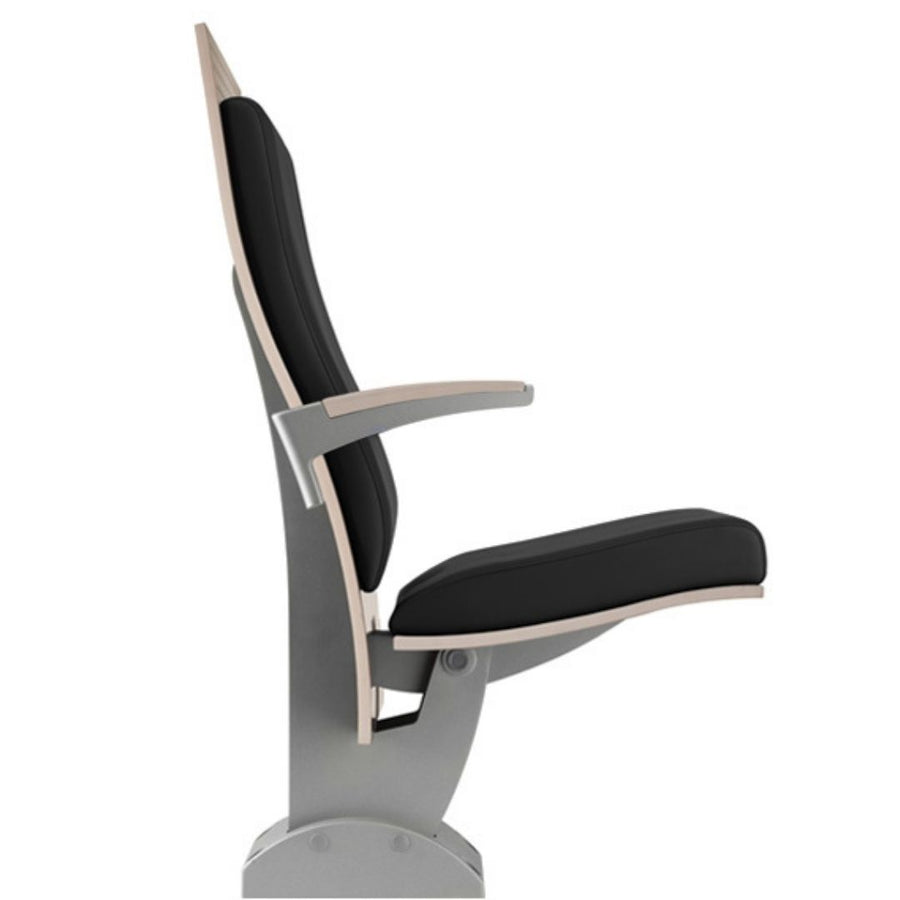

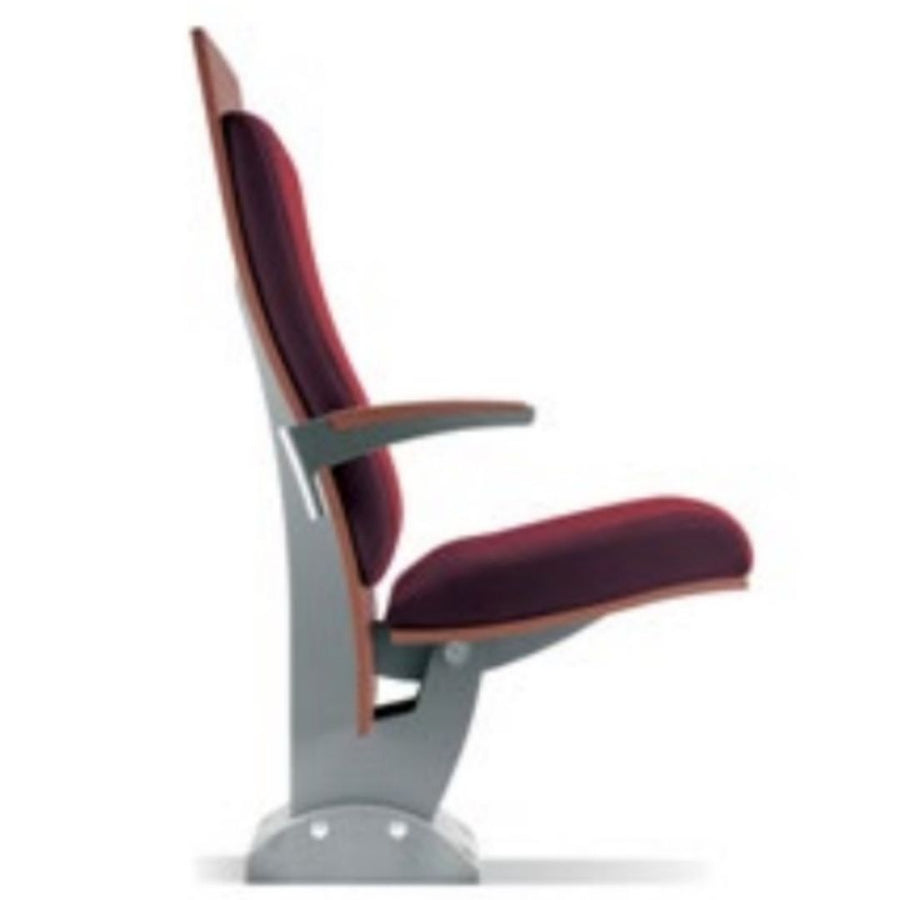

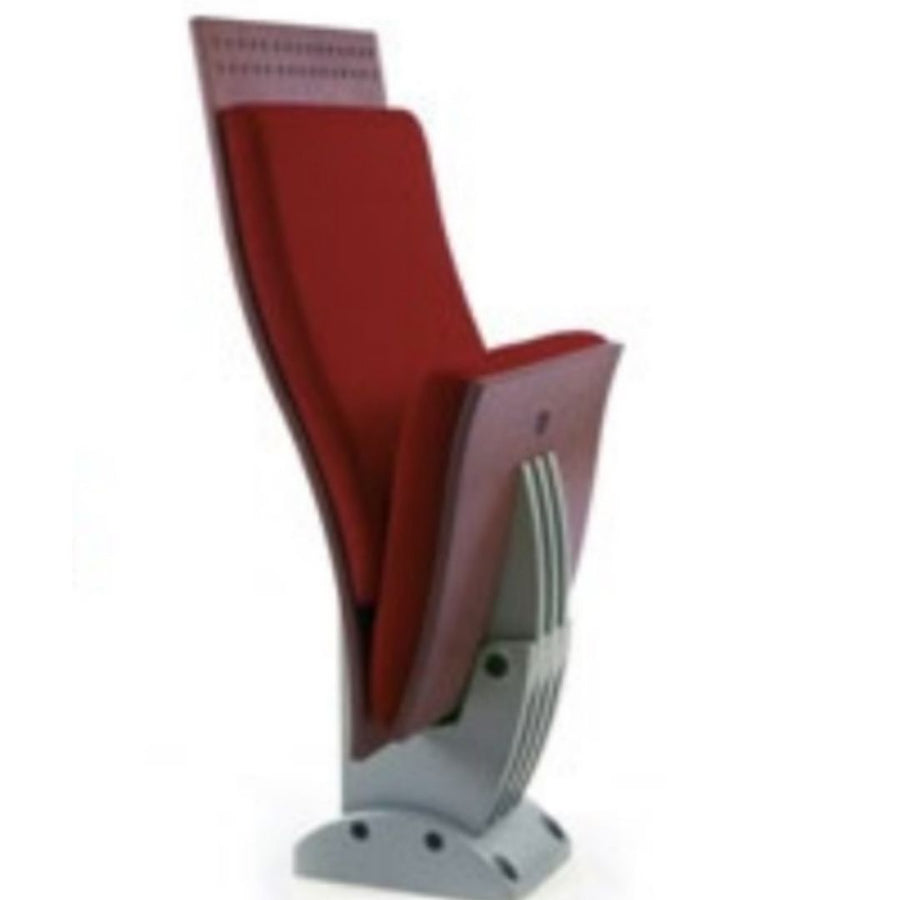

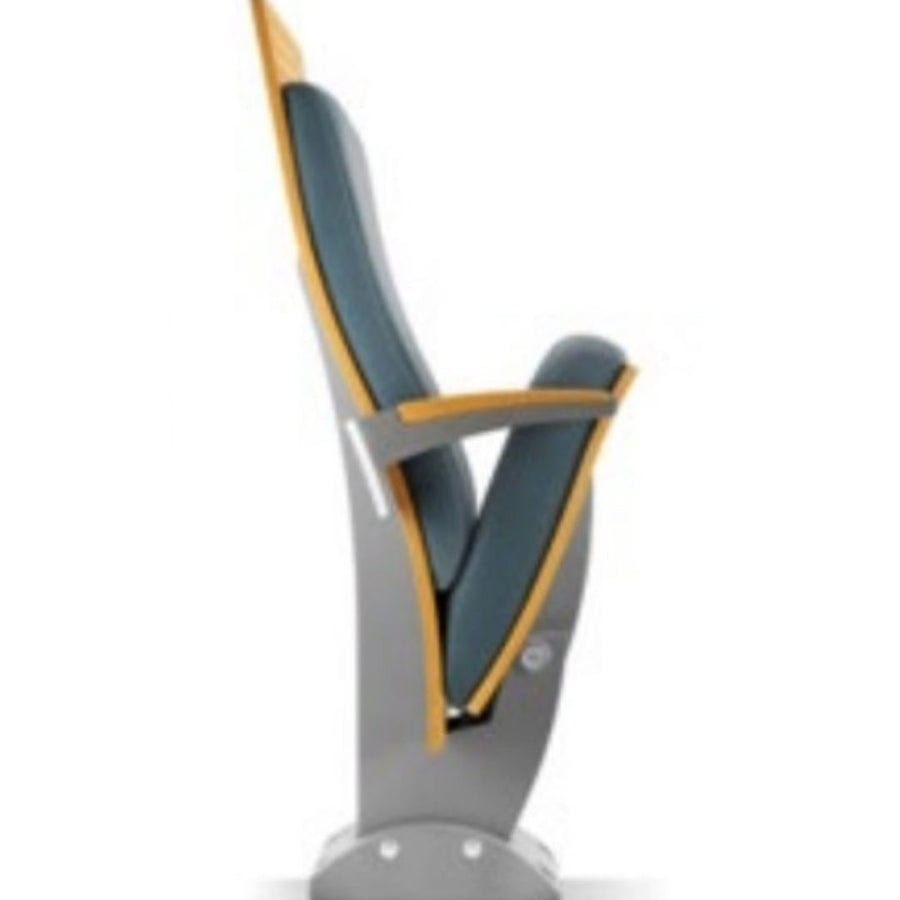

ARMCHAIR FLAME 13107 | COMMERCIAL ARMCHAIRS

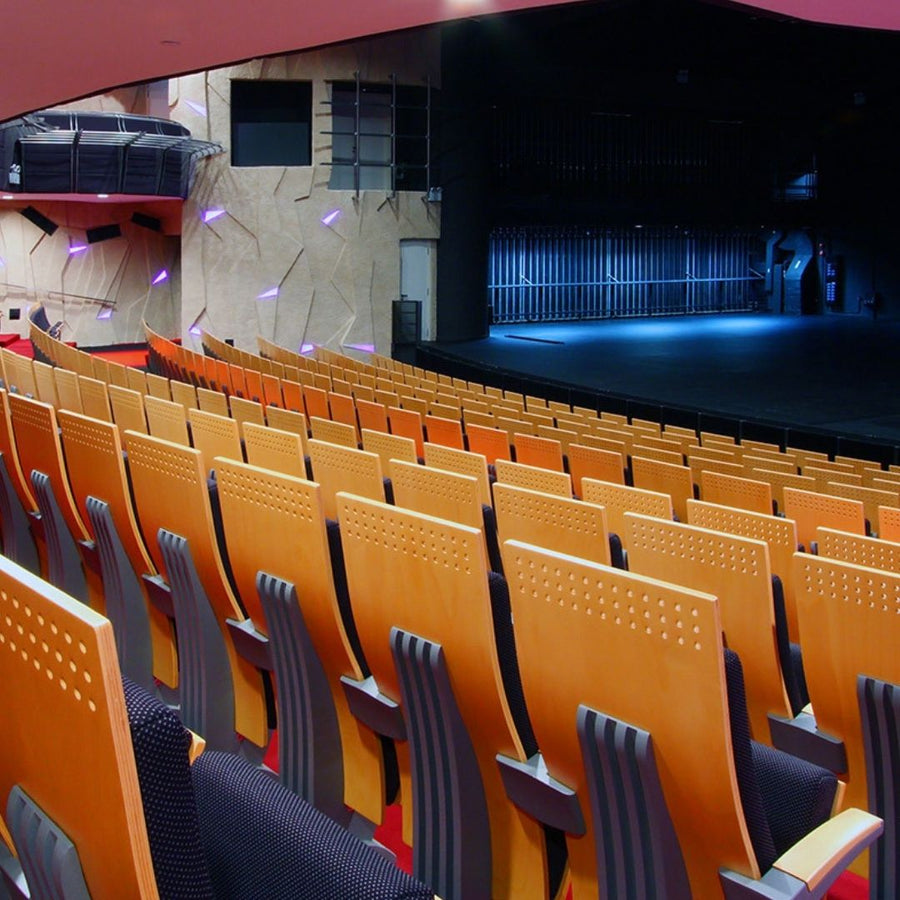

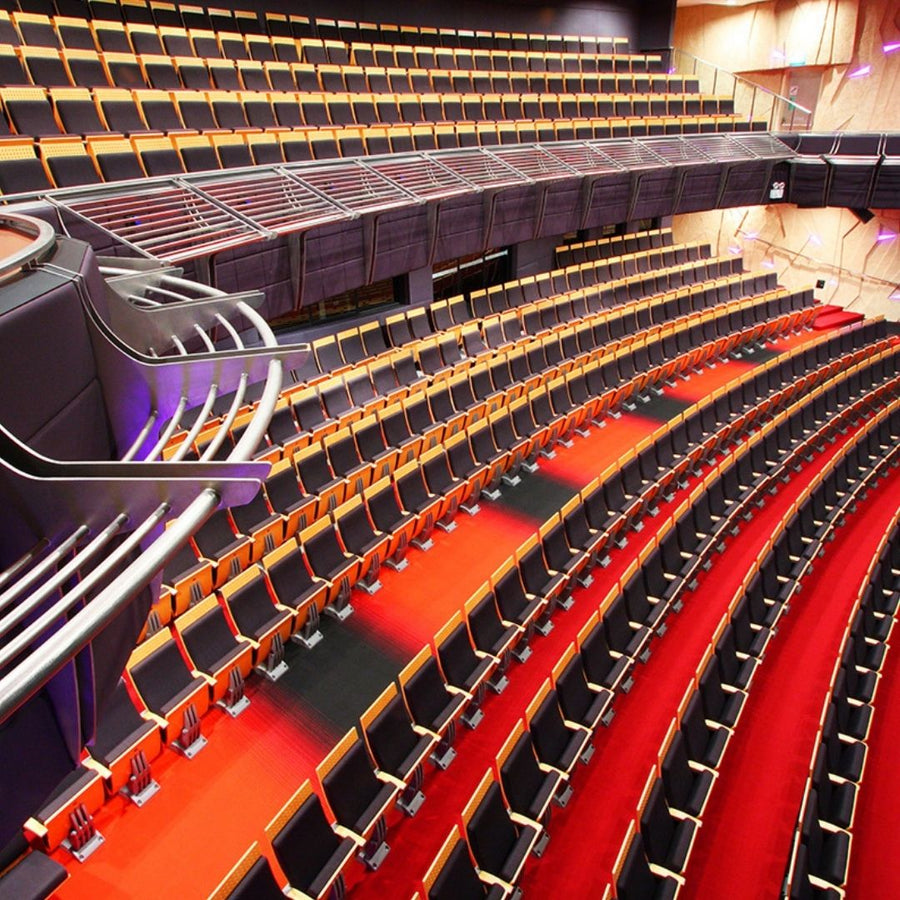

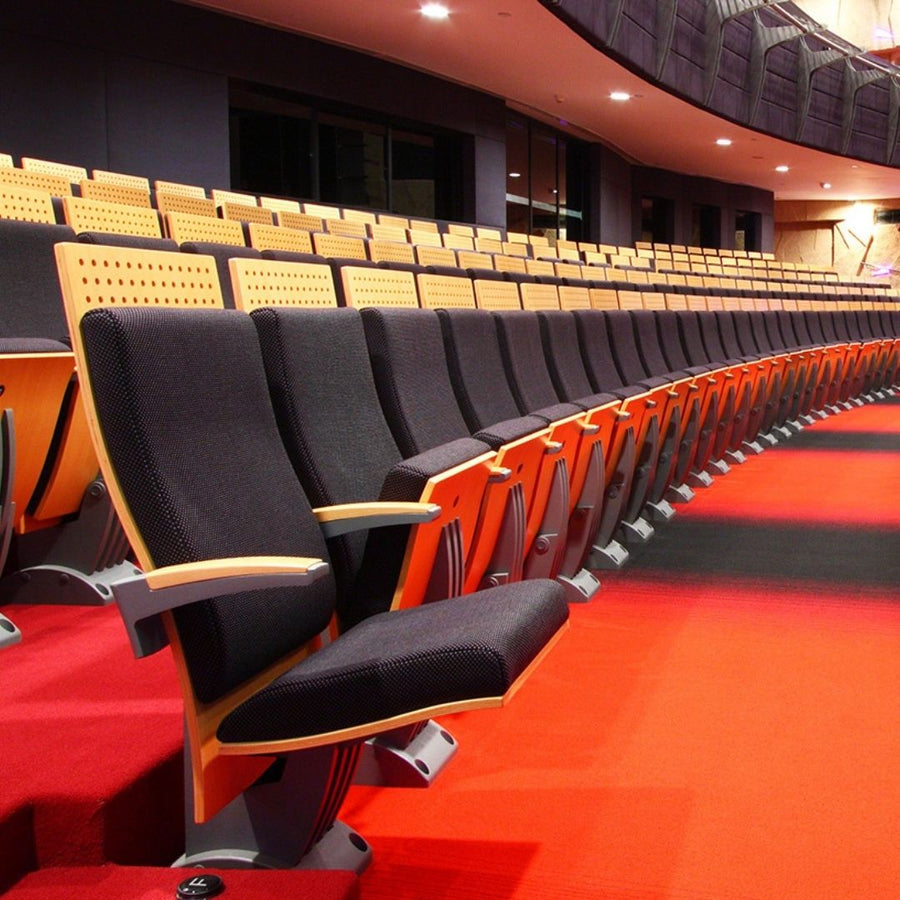

The Flame 13107 is an elegant armchair with clean and simple lines. This unique seat provides excellent sound absorption qualities, suitable for theaters, auditoriums and conference centers.
This folding armchair has been specially designed with materials that allow the product to easily adapt to the acoustic requirements of a wide range of spaces.

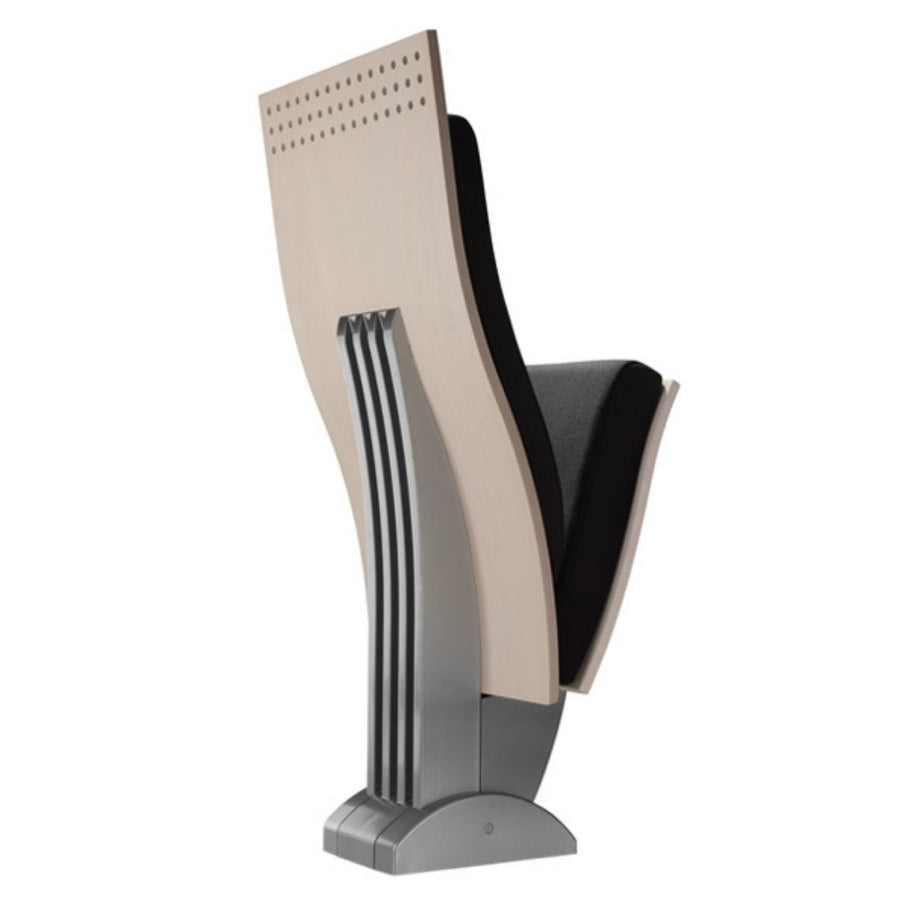

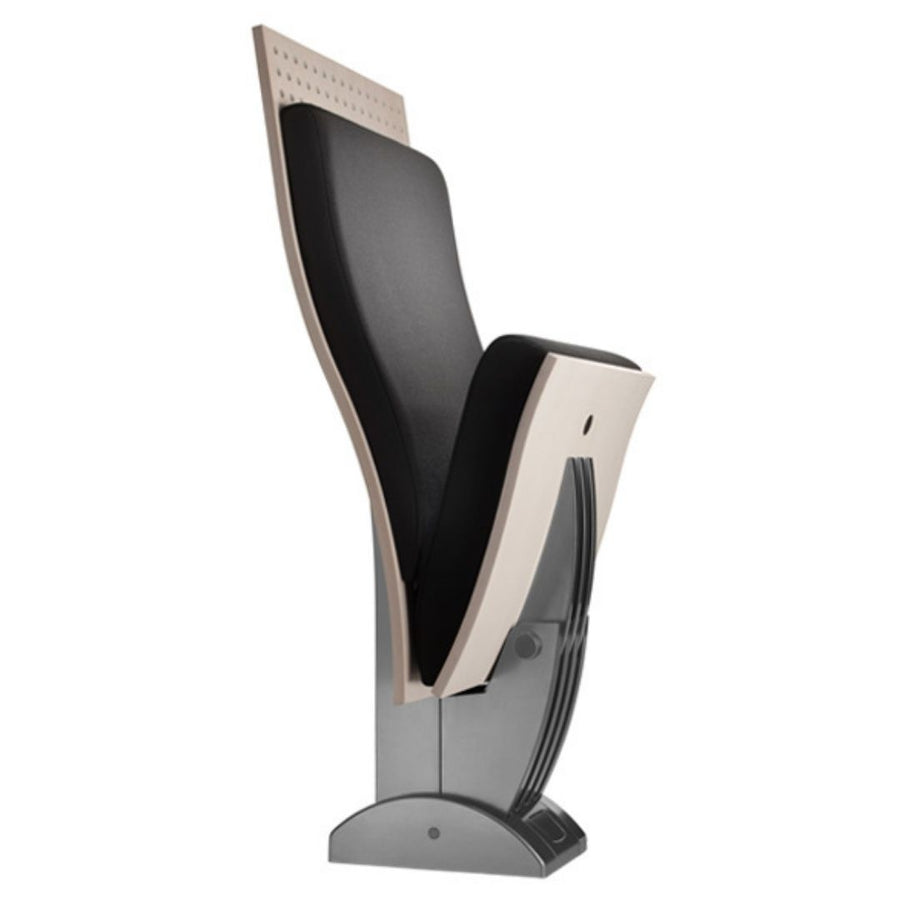

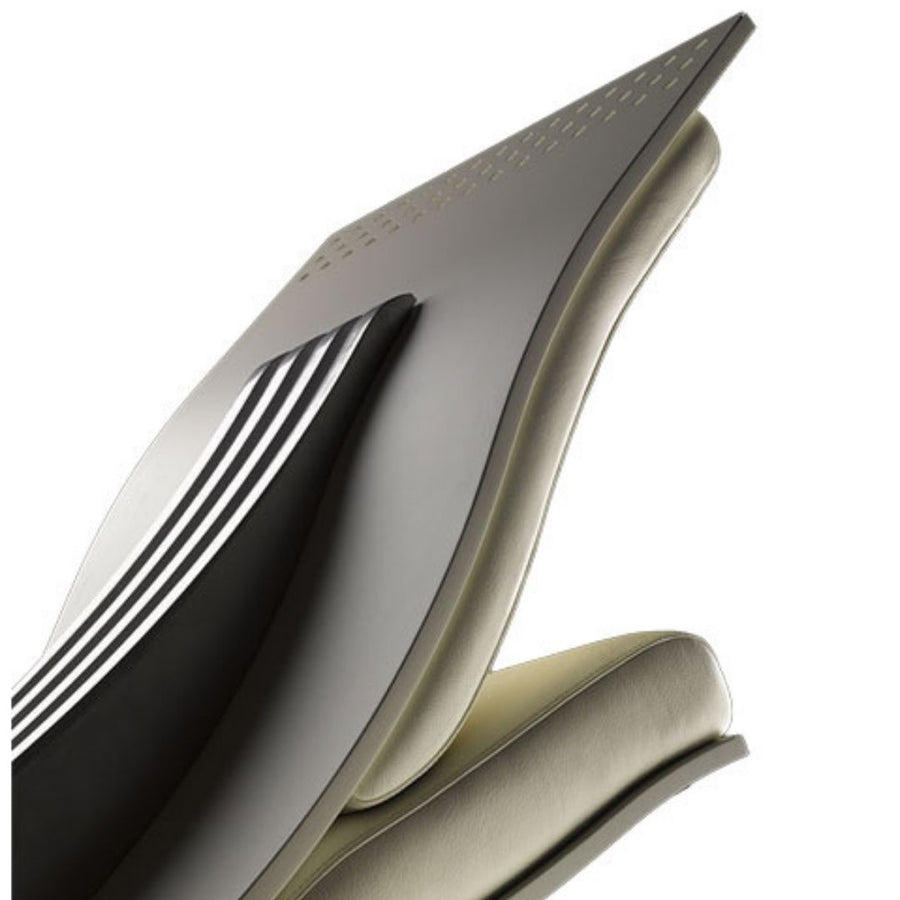

The backrest is made of 15 mm thick beech plywood, with a curve in the lumbar area that considerably increases user comfort. The top of the backrest is finished with three rows of perforations.
The seat and backrest are made of open cell polyurethane mounted on plywood panels, making them easy to remove and replace. The upholstery also has special acoustic qualities.

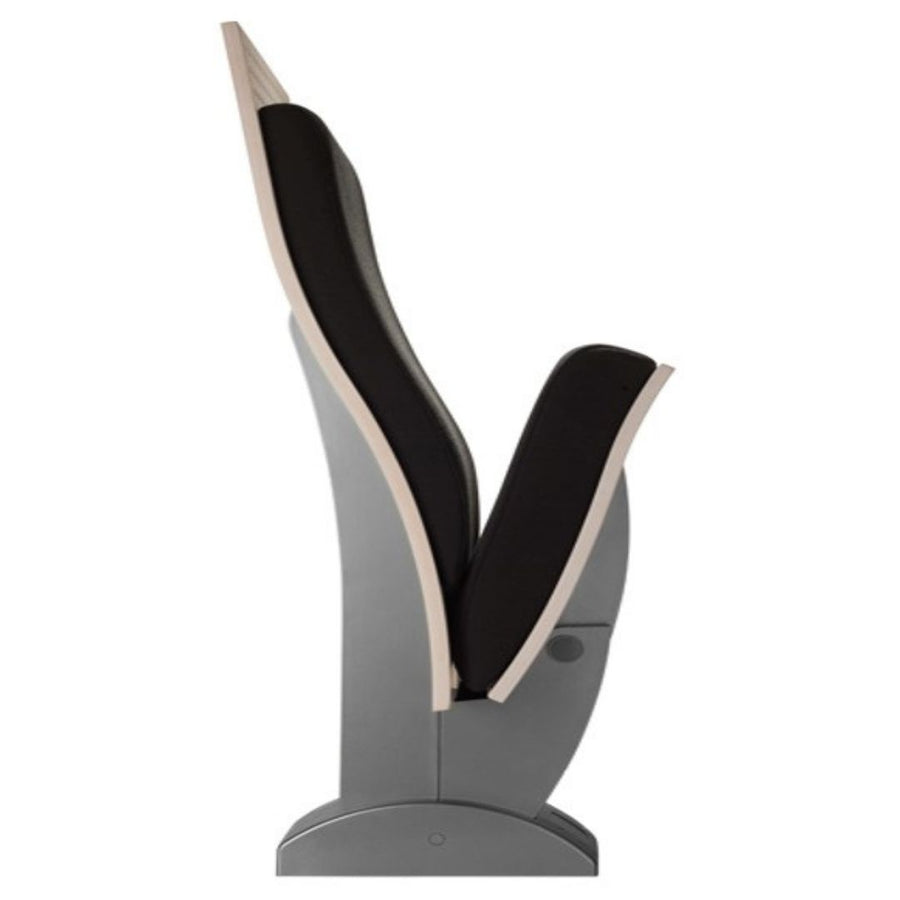

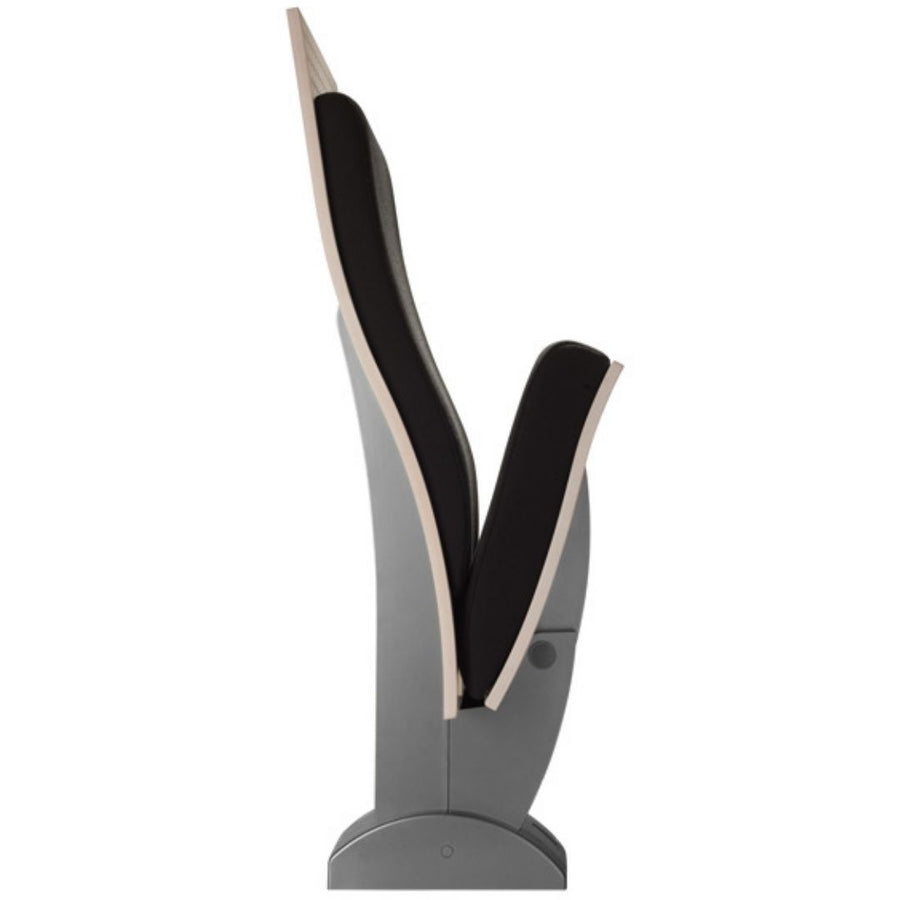

The seat folds automatically using an extremely quiet system (CSRT - Controlled Soft Rise Technology ) that prevents noise or bumps when the seat is unoccupied.
Mounted on a central aluminum structure and a support to which the backrest is fixed, it articulates the seat and serves to fix it to the floor with four anchor points. The seat is installed individually, making it easily adaptable to all types of linear or curved layouts.
Technical specifications
› Types of environments
- Congress Center.
- Auditoriums and Conferences
- Corporate Rooms.
- Art Centers.
- Theater.
- University.
- Worship Center.
> Structure
- Extruded aluminum structure.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
>Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
› Wooden components
- Pressed beech plywood.
› Varnish
- Material: Two-component polyurethane varnish (Water or solvent based).
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
› Cutting foam (Polyurethane foam)
- Seat density: 40 Kg/m3.
- Backrest density: 35-39 Kg/m3.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
