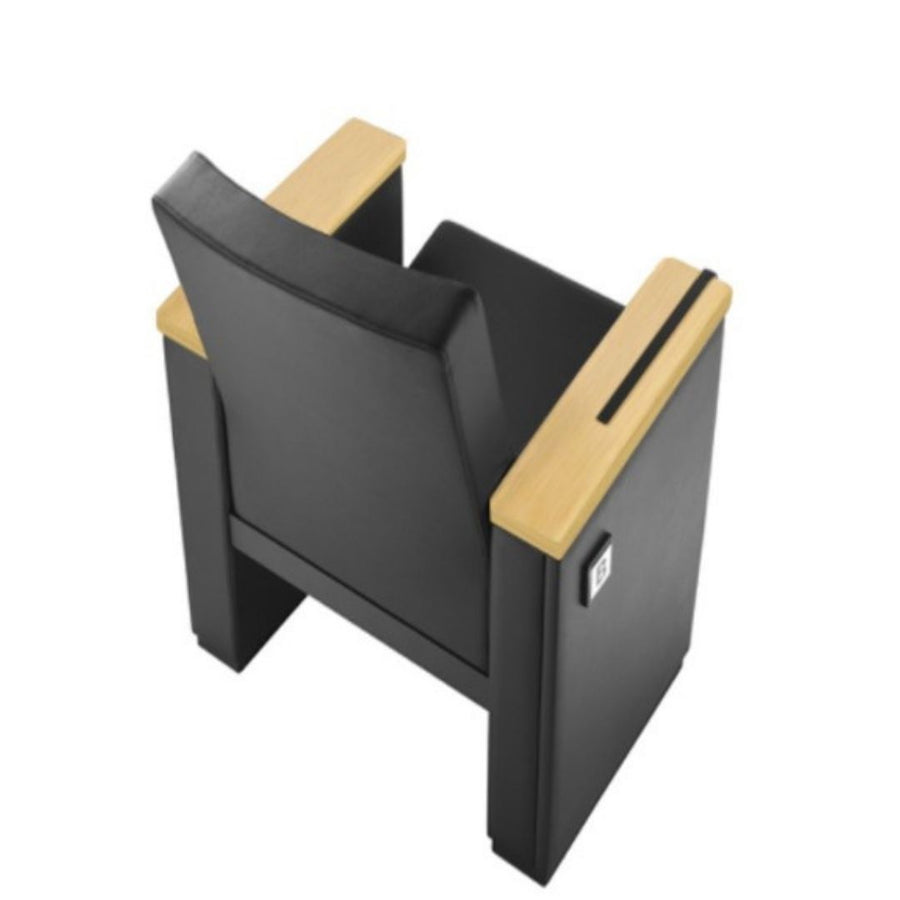

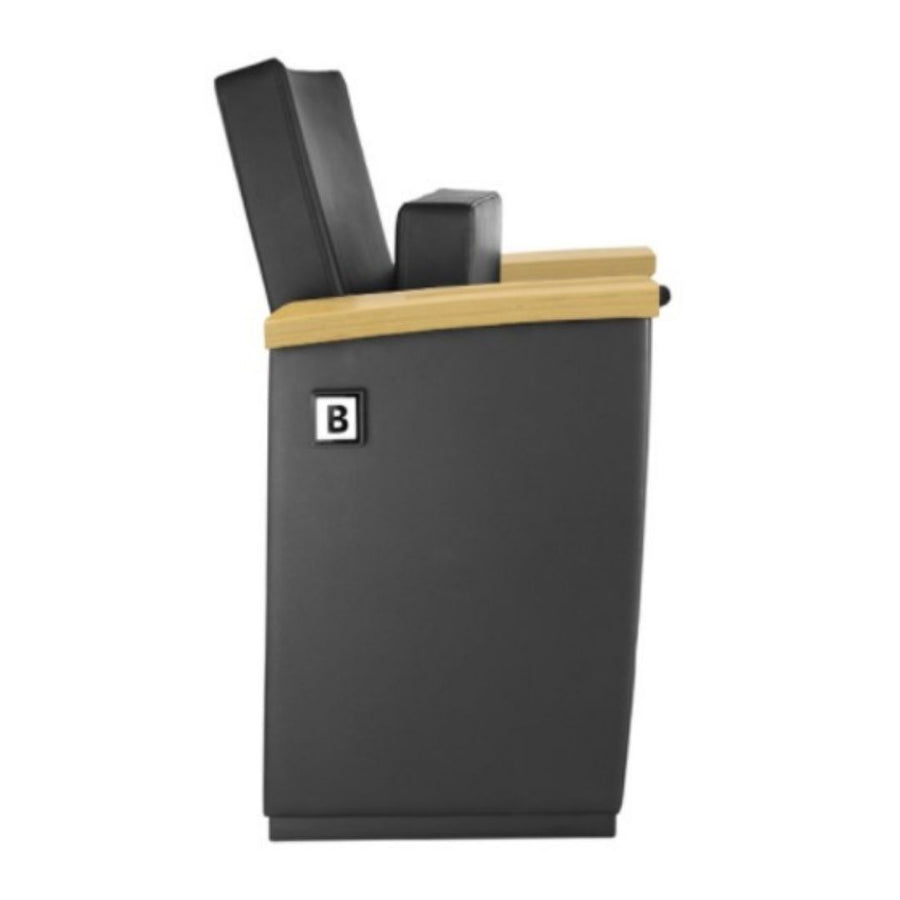

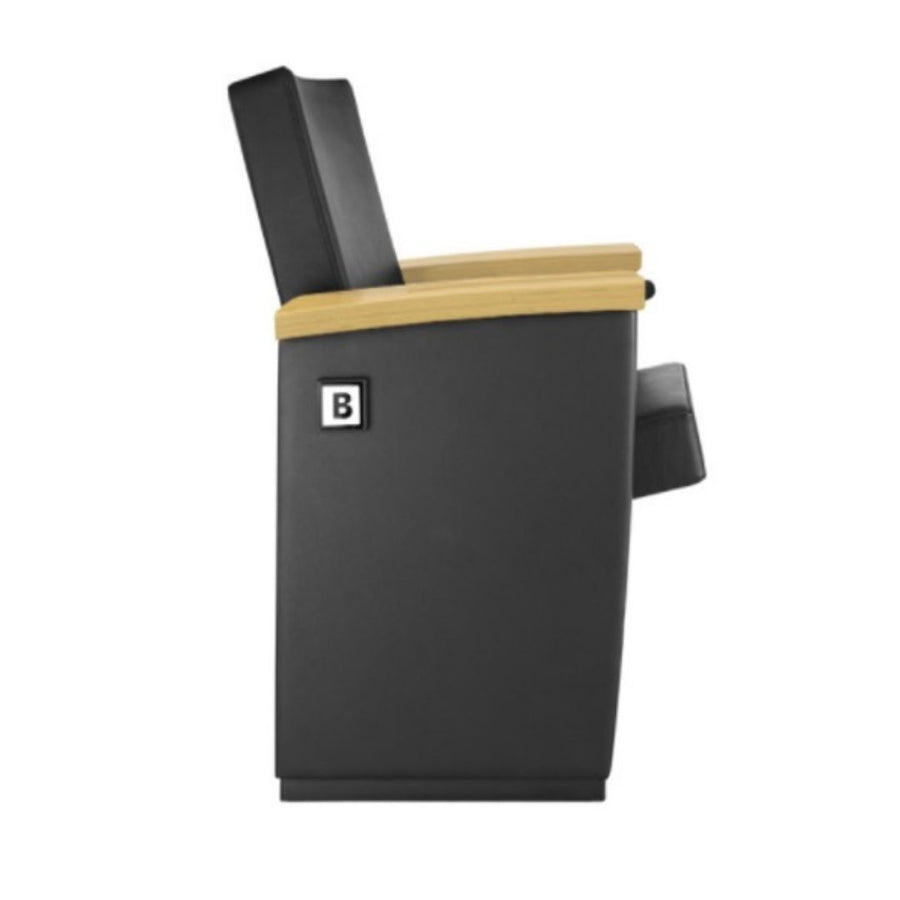

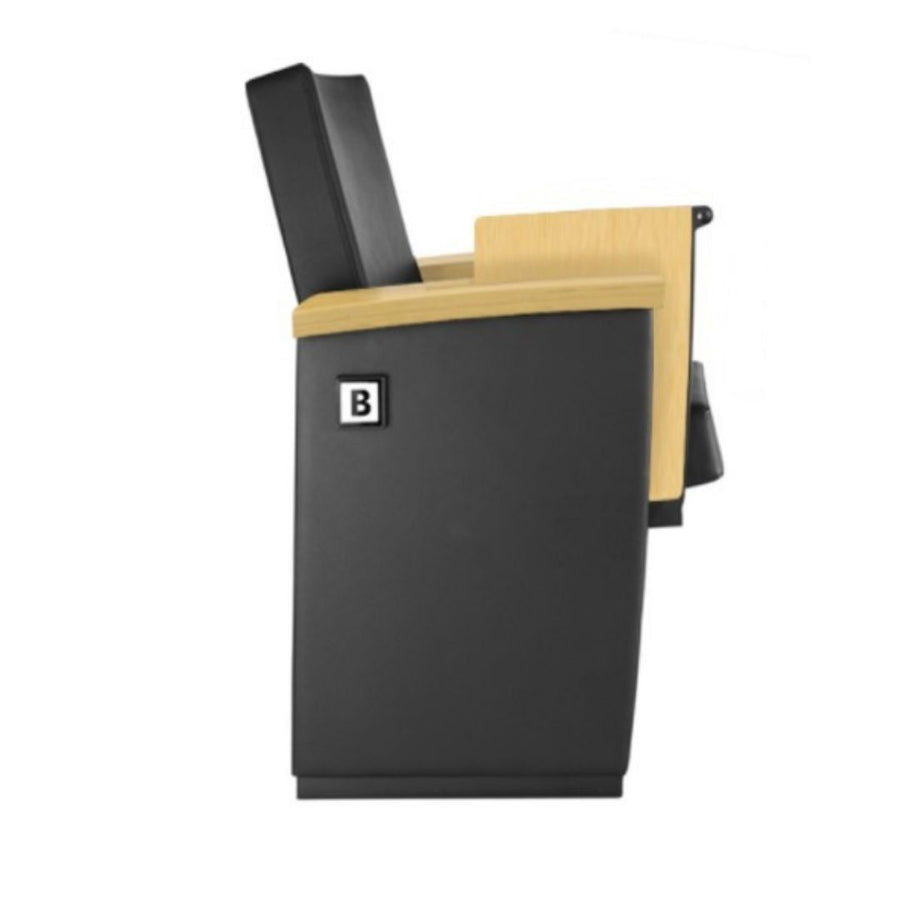

FLEX ARMCHAIR 6040 GPL | COMMERCIAL ARMCHAIRS

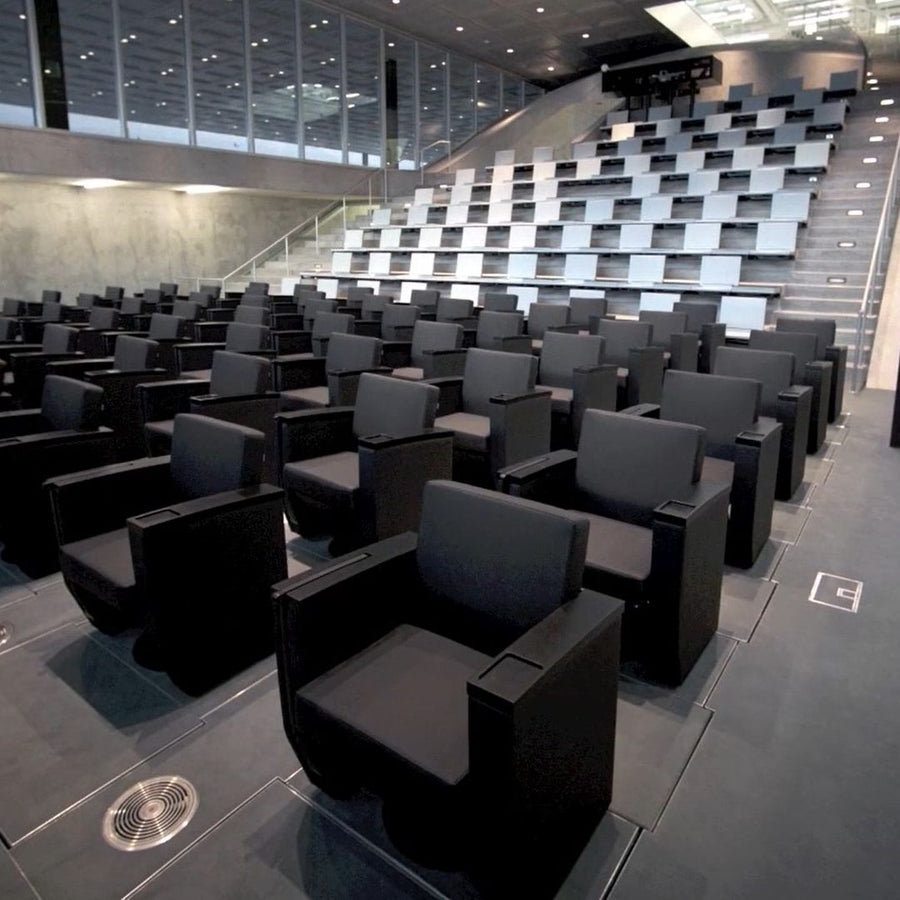

The Flex 6040 GPL seat stands out for its exceptional balance between performance, comfort, aesthetics and use of space. Thanks to its large lectern, it becomes the perfect solution for conference centers, auditoriums, corporate rooms and higher education centers.

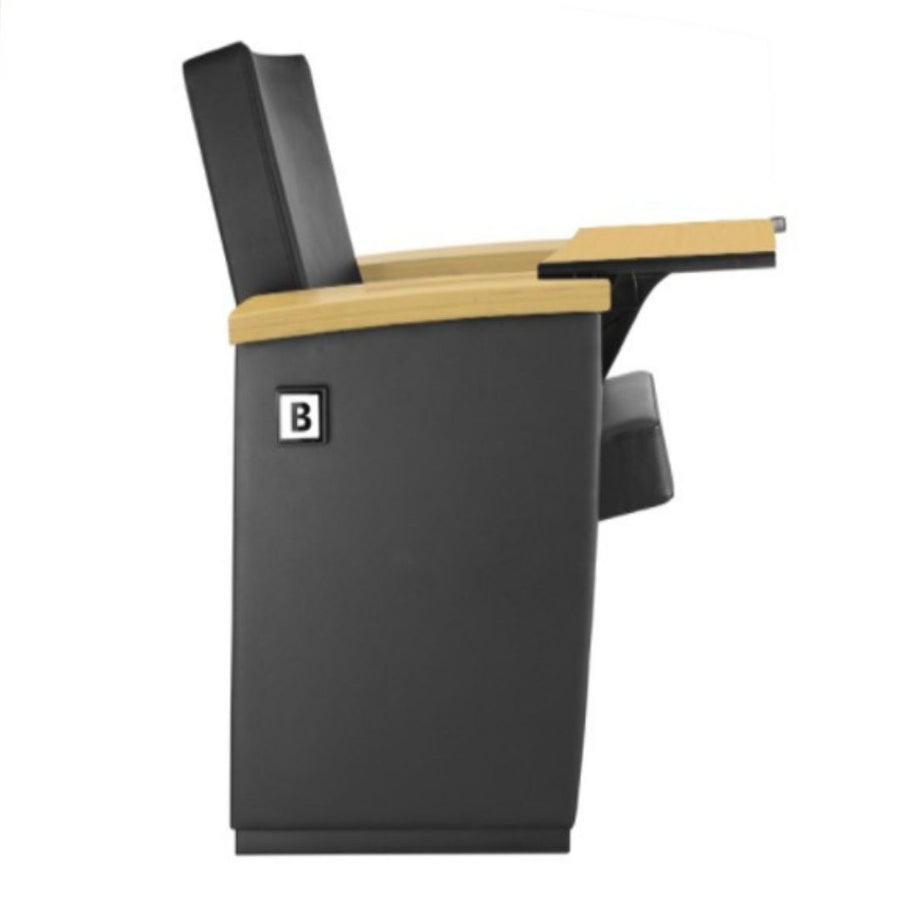

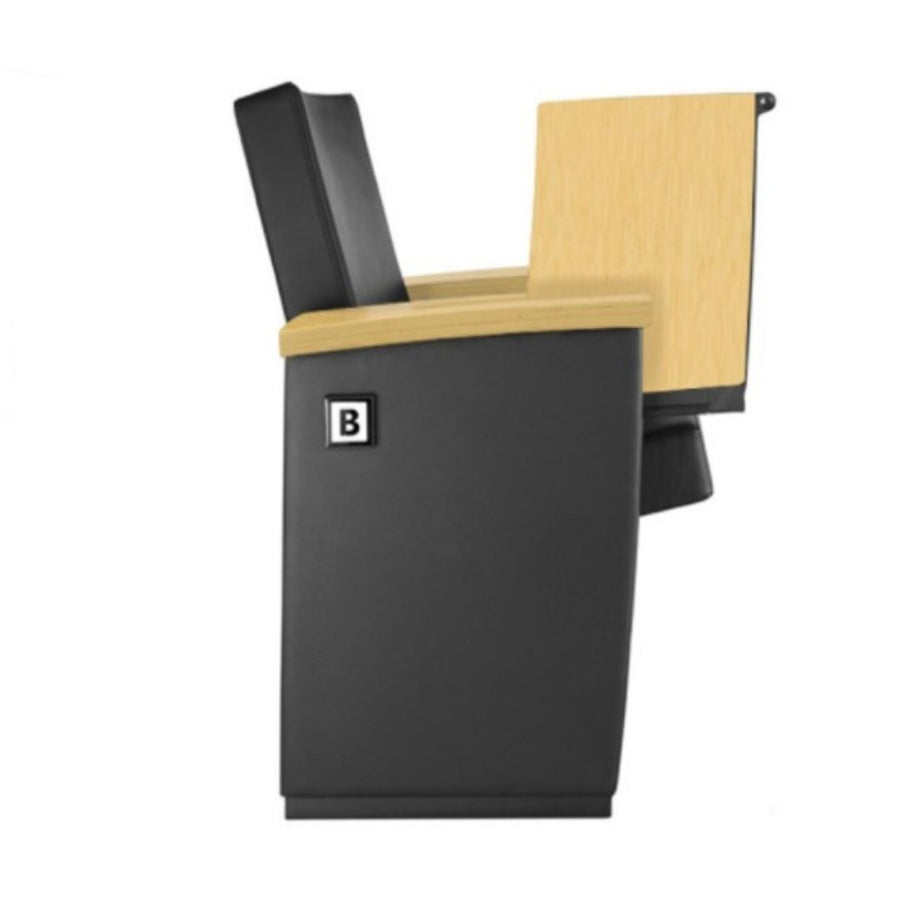

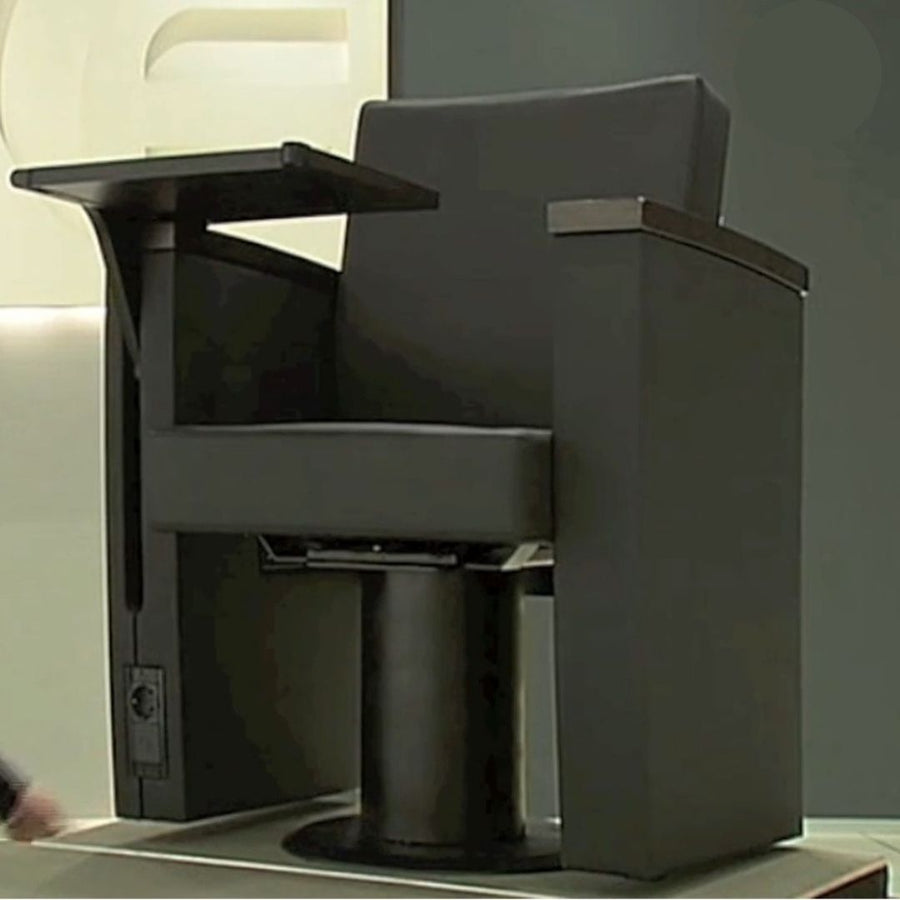

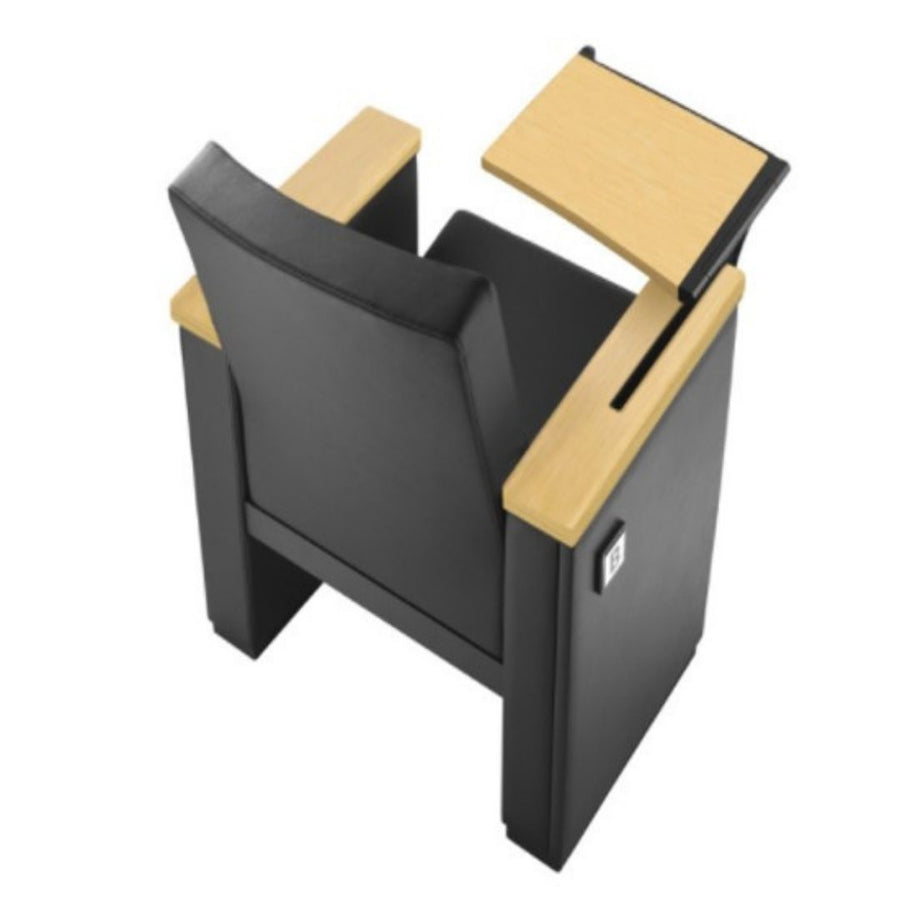

The panels of this stylish folding seat have an integrated workstation consisting of a large, sturdy lectern. This GPL writing table, measuring 42x36cm, is made of varnished wood that folds using a rail mounted on an aluminum profile. The movement is smooth and completely silent.
Thanks to its anti-panic folding system, when the seat is unoccupied, the lectern automatically folds to the side of the seat. The room can be vacated quickly and the corridors are always free and tidy.
The side panels are fully upholstered and include a wooden armrest. They have a steel base, where the chair is fixed to the floor using hidden metal expansion bolts or the type of anchor appropriate for each type of surface.
Great durability is ensured as the seat consists of a single block of cold-molded polyurethane foam that covers a metal structure, composed of a curved tube frame, a frame of flat springs and articulation pivots for rotation.
The backrest is made of PU foam with an internal metal structure. The seat and backrest are covered by an easily interchangeable upholstery with a zipper system. Optionally, you can add decorative wood to the backrest.
The seat returns to the vertical position automatically through a double ball joint with springs and the CSRT (Controlled Soft Rise Technology) system that prevents noise or shocks when the seat returns to its original position.
Technical specifications
› Types of environments
- Multipurpose spaces.
- Congress Center.
- Corporate Rooms.
- Arts Centers.
- Theaters.
- Universities.
- Worship Centers.
- Auditoriums and Conferences.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3. · Backrest density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint. ·
- Paint thickness: 70-80 microns. · Grid adhesion according to UNE-EN ISO 2409: 100%
› Upholstery
Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
› Wooden components
- Pressed beech plywood.
› Varnish
- Material: Two-component polyurethane varnish (Water or solvent based).
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
> Fur
- Adhesion of the finish according to UNE-EN ISO 11644: >2.5 N/cm2.
- Color fastness according to UNE-EN ISO 11640: (Dry, 1,000 Cycles) >4.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
› Ergonomics and Comfort
- Seat tested in official laboratory - IBV - Institute of Biomechanics of Valencia.
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
