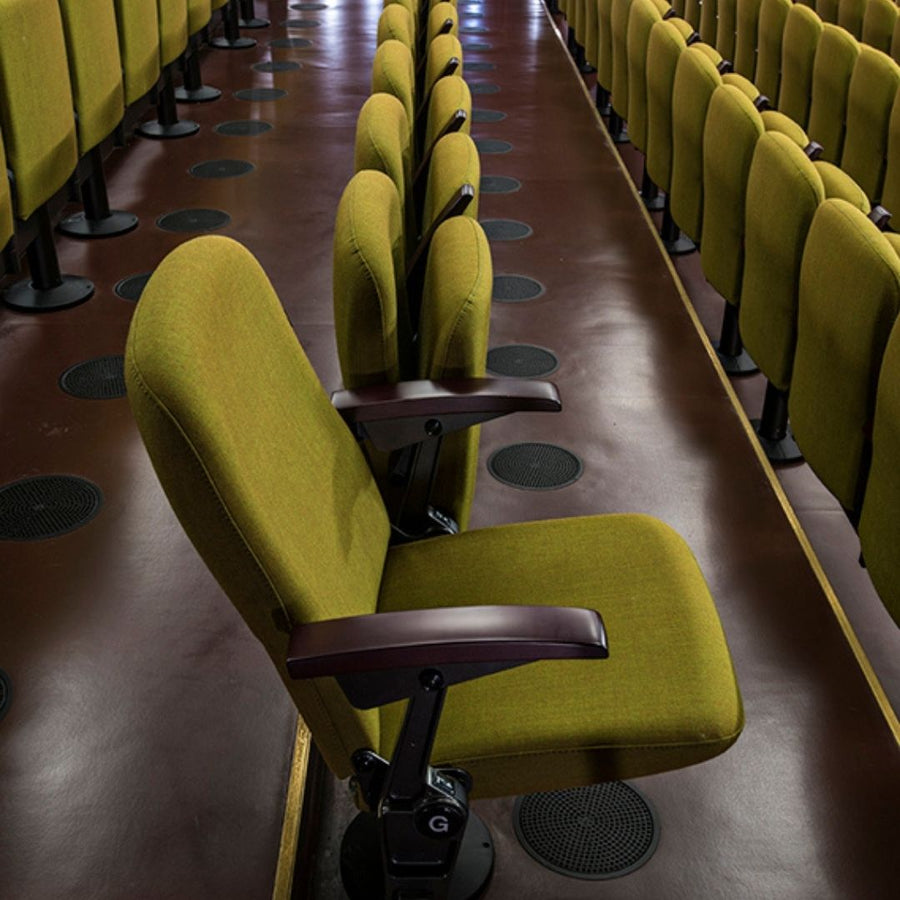

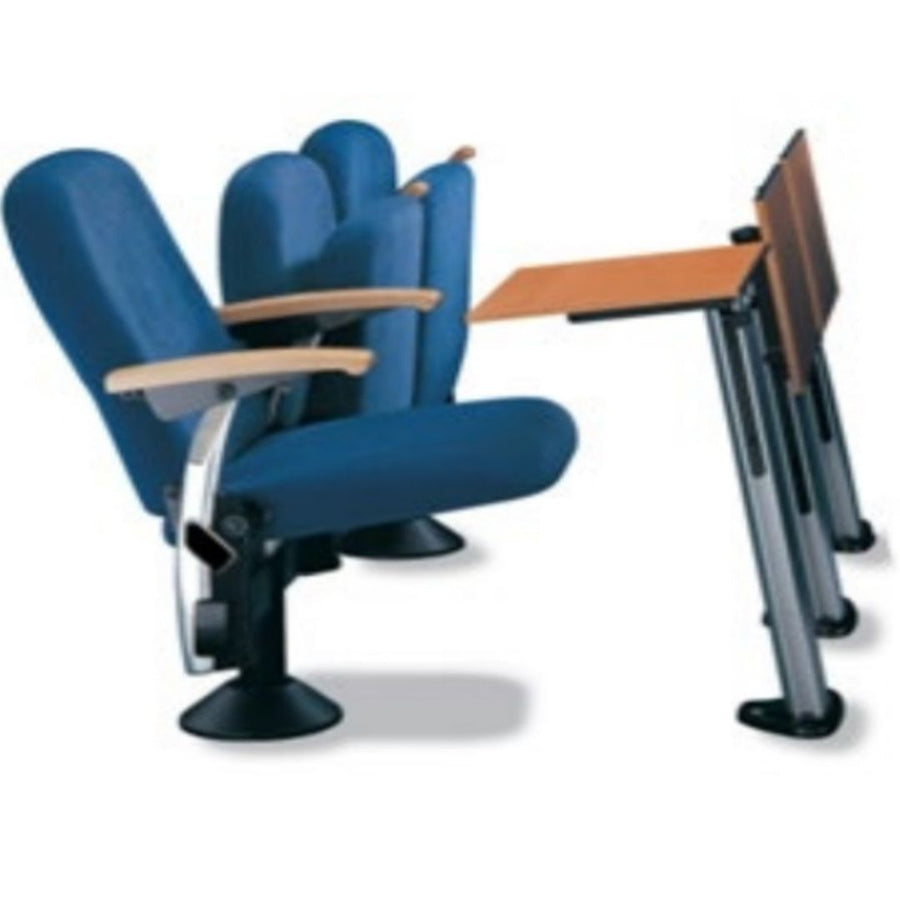

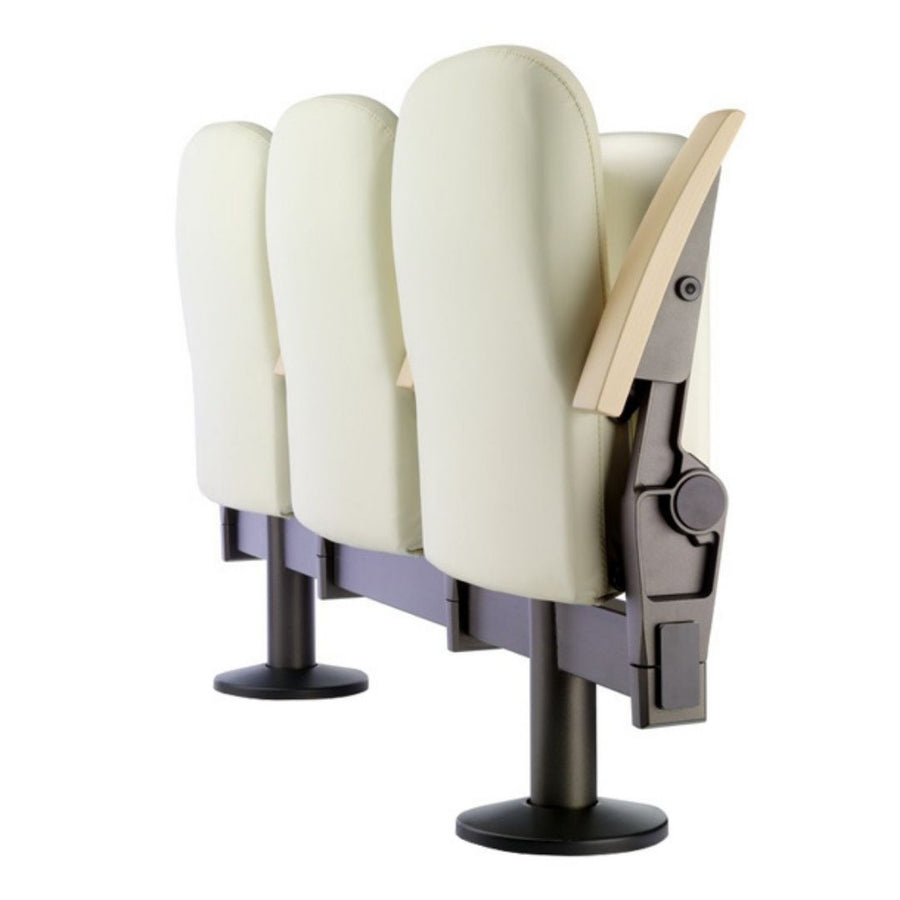

MINISPACE ARMCHAIR 5064 | COMMERCIAL ARMCHAIRS

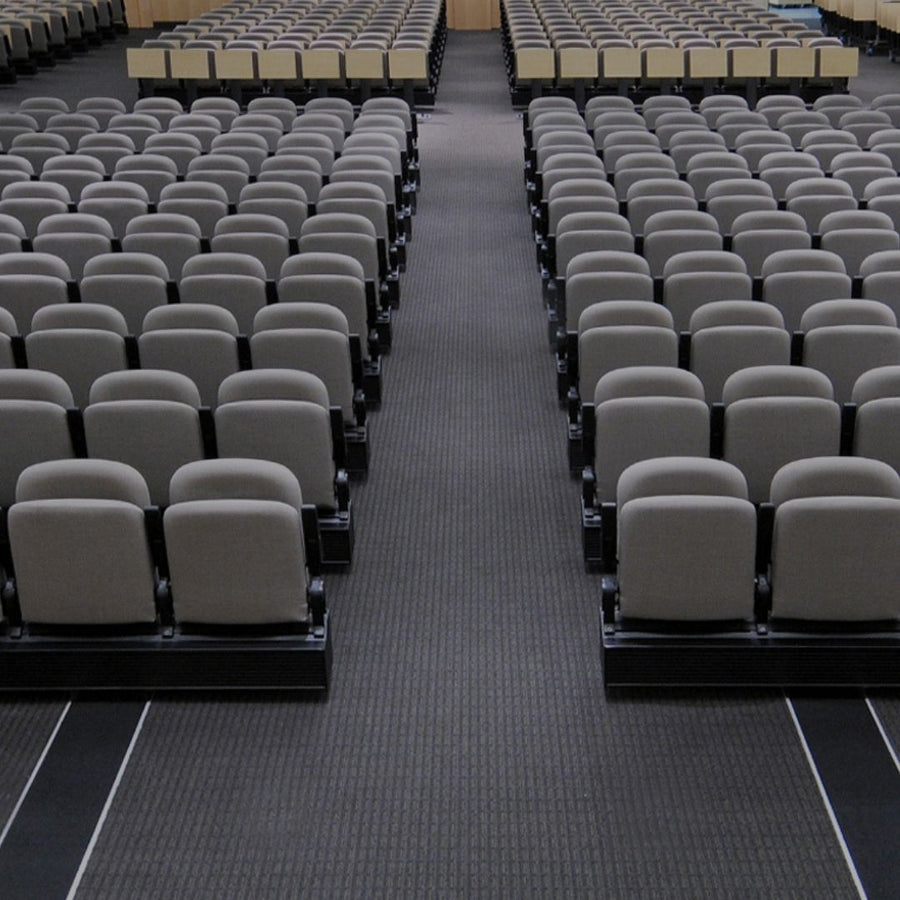

The Minispace 5064 is a chair that stands out for its compact size and elegant design. This seat is an optimal solution for conference rooms, auditoriums, corporate areas and VIP areas of stadiums and arenas.

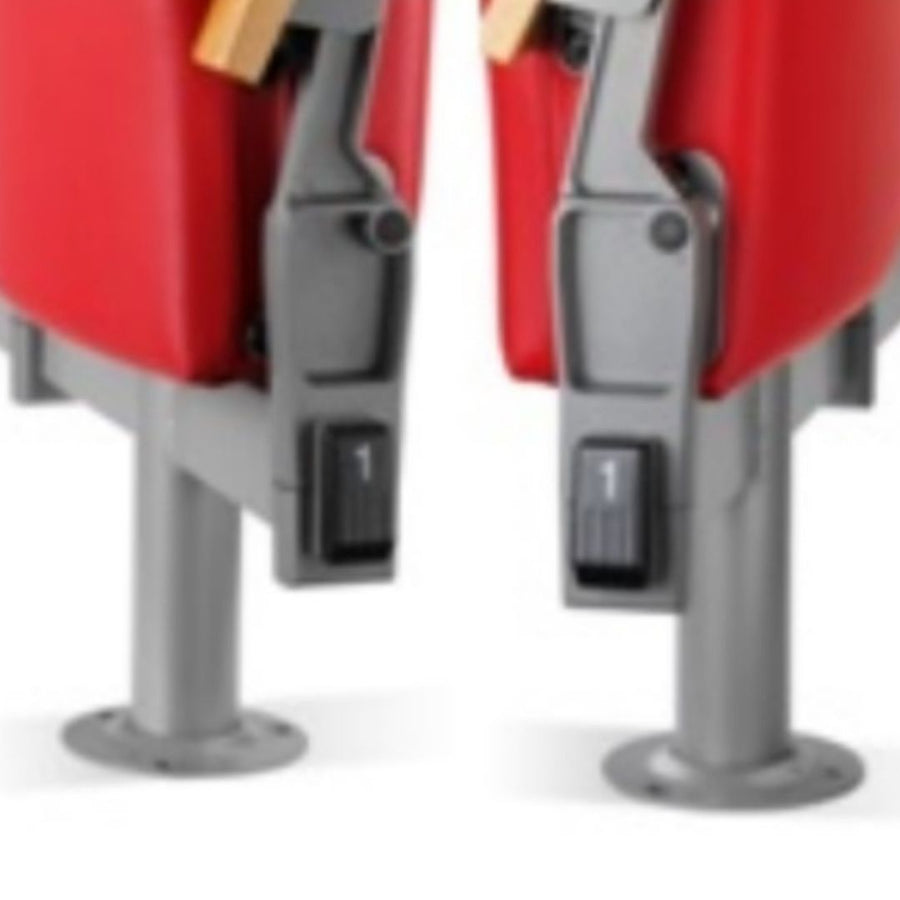

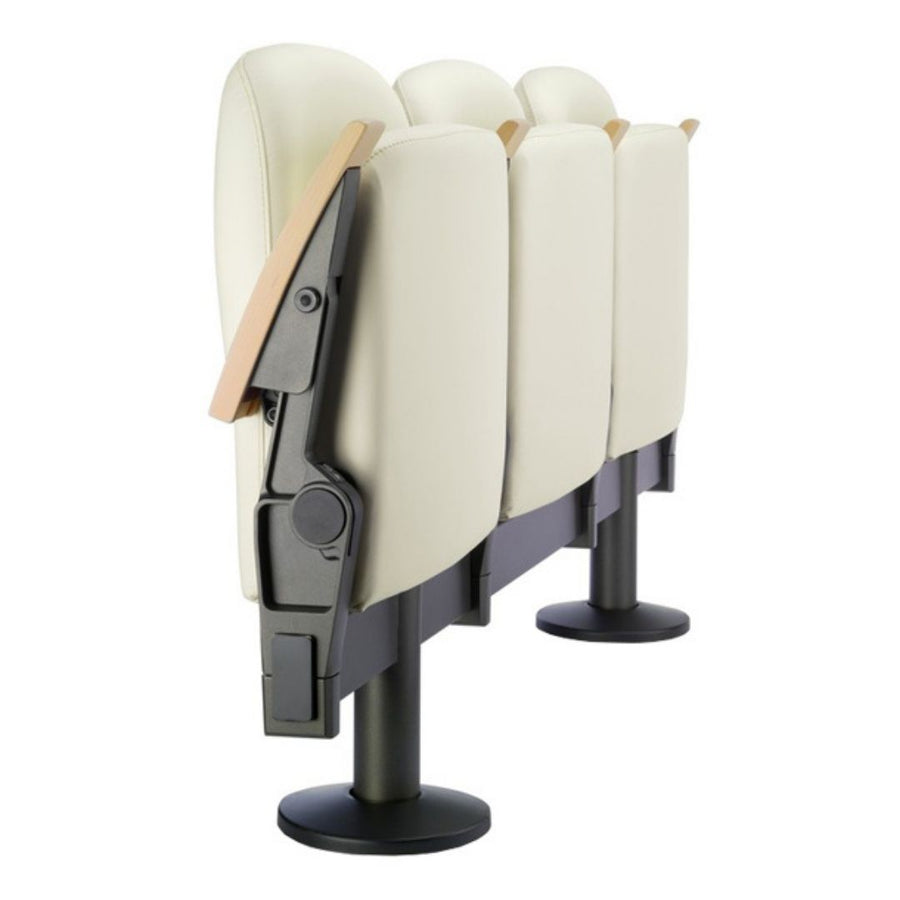

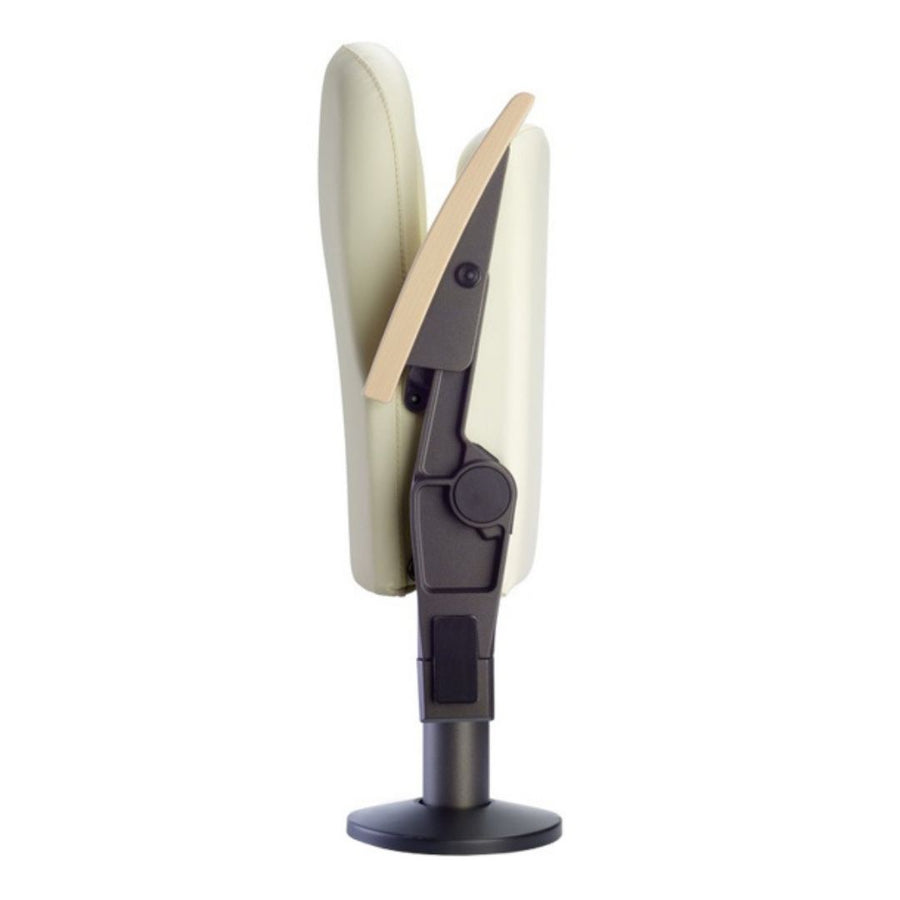

This chair, mounted on a bar, incorporates an automatic folding system through which when the seat is raised, the backrest moves forward until both parts are completely joined. Once the seat is folded, its depth is only 23 cm, which allows maximum optimization of space.
The Minispace 5064 incorporates a soft folding system that prevents noise or shocks when the user gets up from the seat. Folding is based on gravity, achieving high durability and minimal maintenance.
The seat and backrest consist of cold-molded polyurethane foam that completely covers the internal metal structure. This structure is made up of a curved tubular frame and a mesh of flat springs. The polyurethane foam blocks are covered with easily removable zippered covers.
Optionally, the backrest can include a metal sheet that completely covers the back to protect the upholstery from friction damage. This feature is very convenient to incorporate into the seats that will be installed in stadiums and arenas.

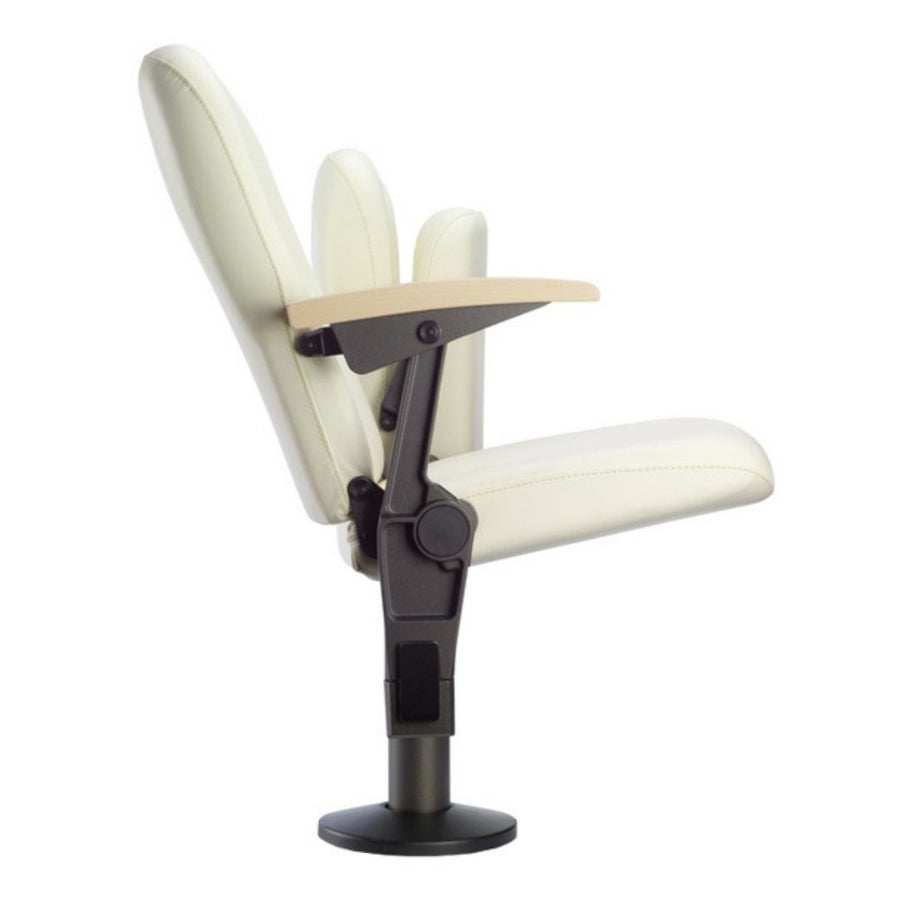

The armrests are made of a metal structure covered in cold-molded semi-rigid integral polyurethane foam. The seat, backrest and armrests are supported by cast aluminum sides that are fixed to a steel tube frame.
Technical specifications
› Types of environments
- Multipurpose spaces.
- Congress Center.
- Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena
- Worship Centers.
- Arts Centers.
- Theaters.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Paint
Electrostatic polyester powder paint.
Paint thickness: 70-80 microns.
Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
> Fire resistance
- BS 5852. Clause 12.
- Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
