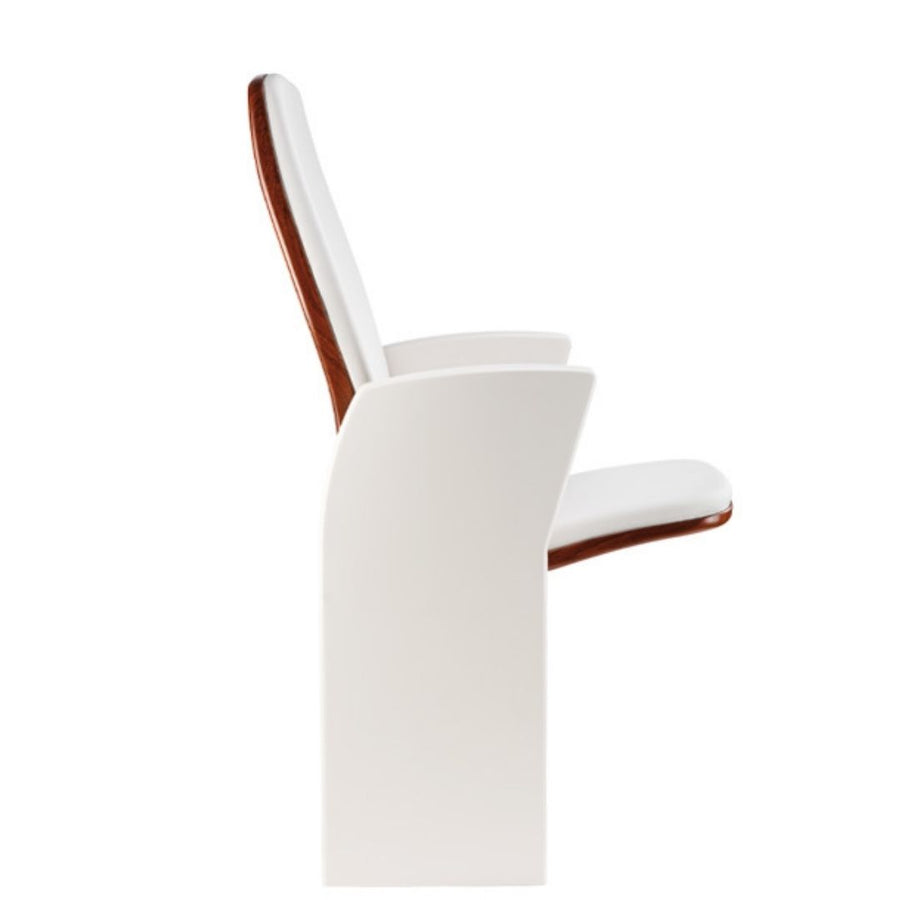

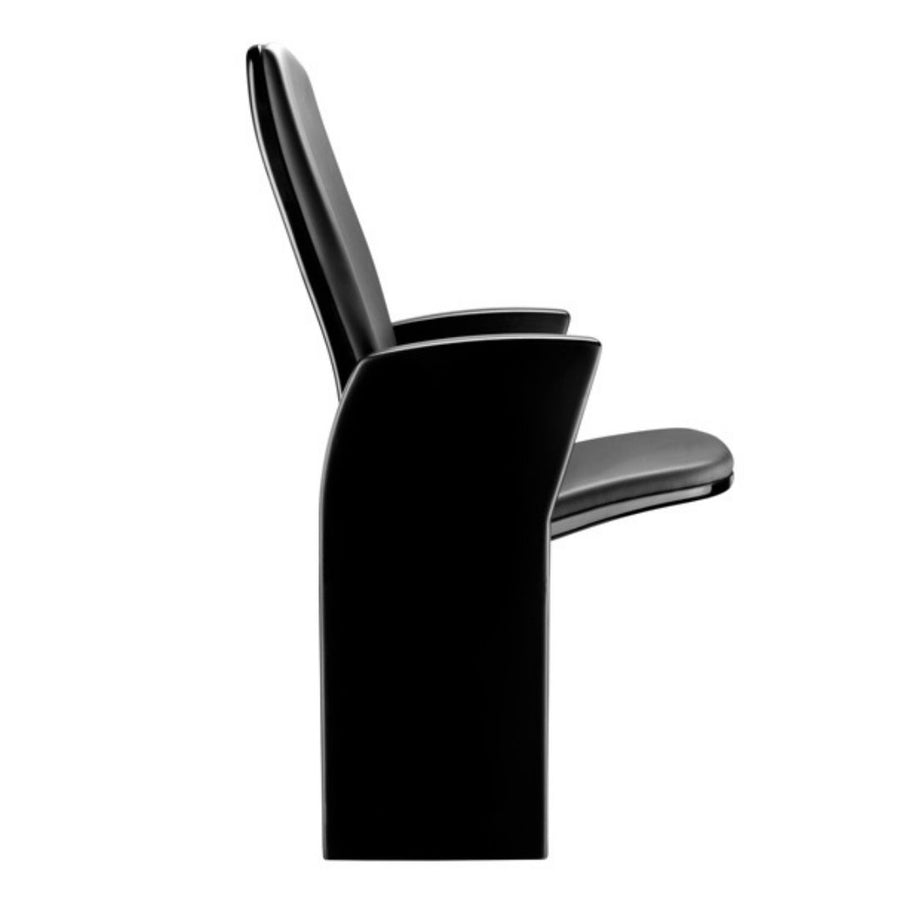

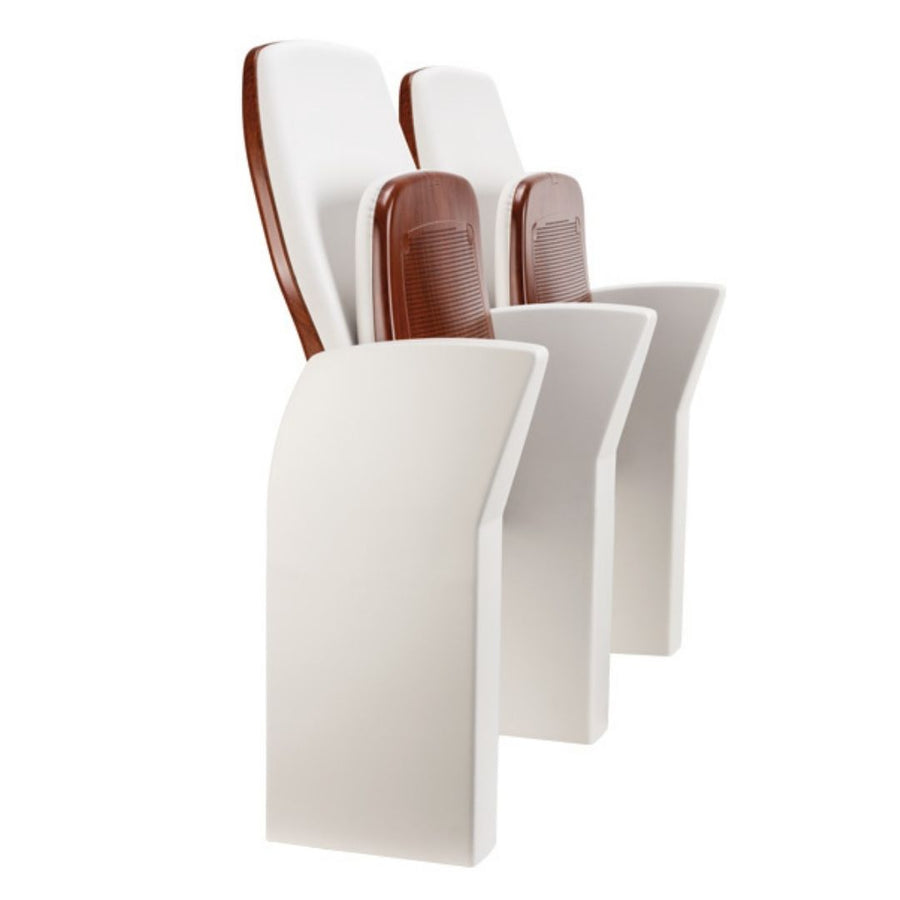

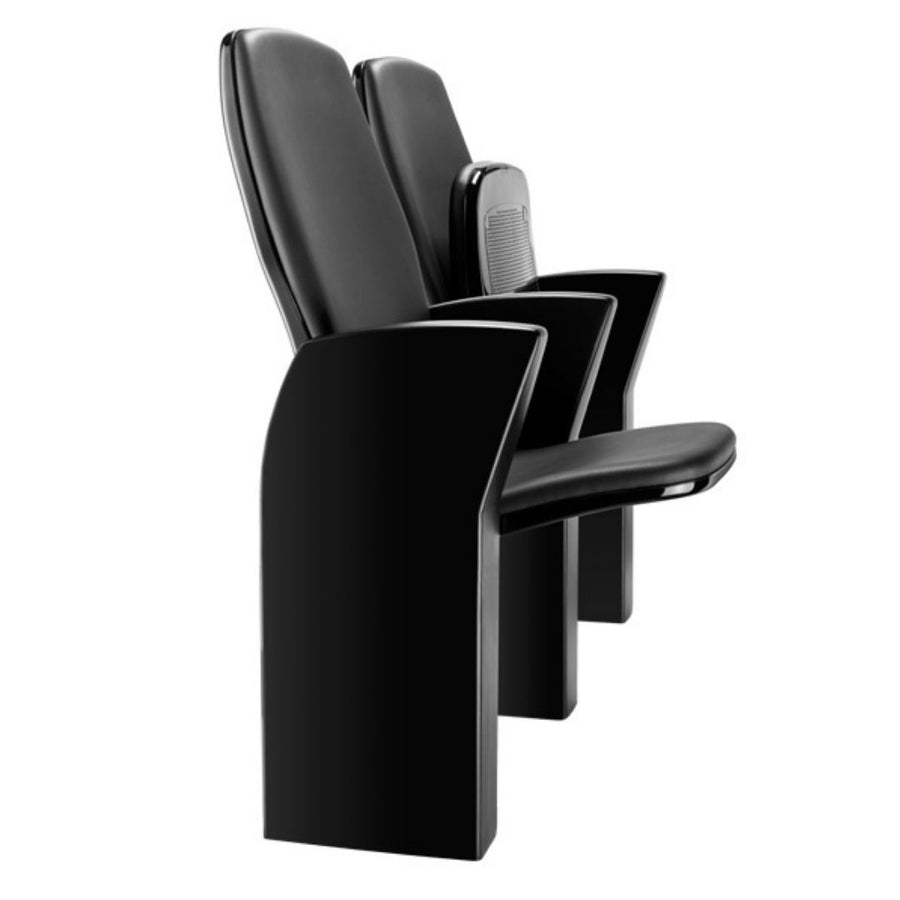

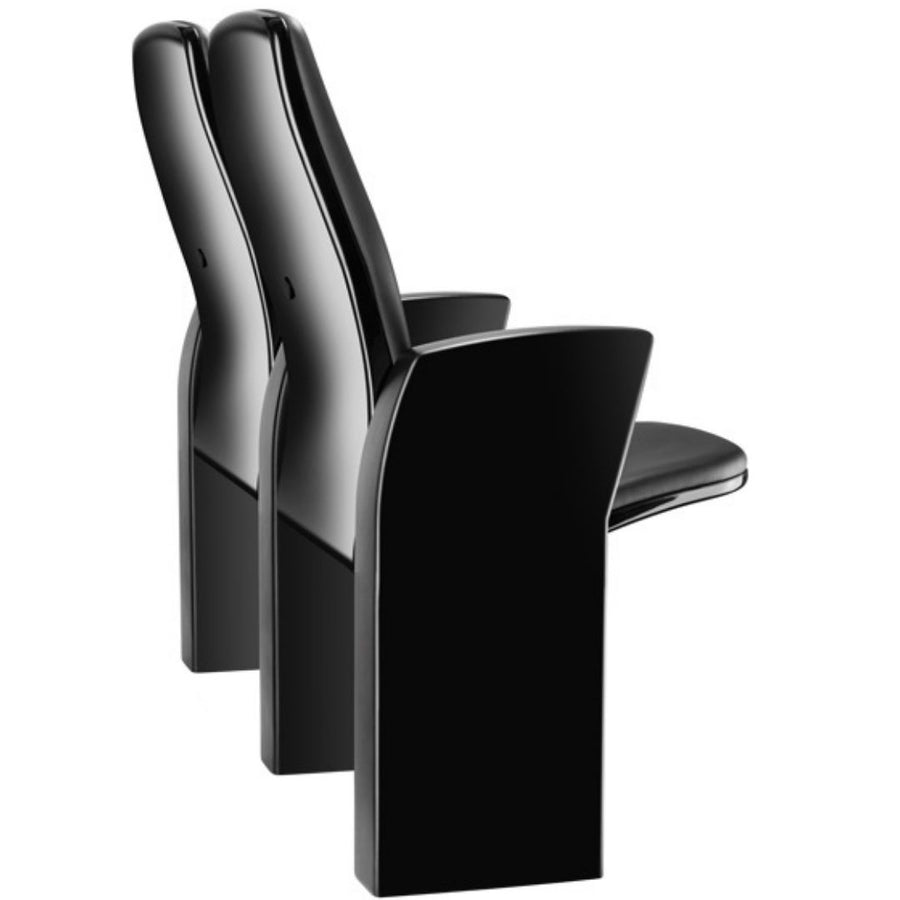

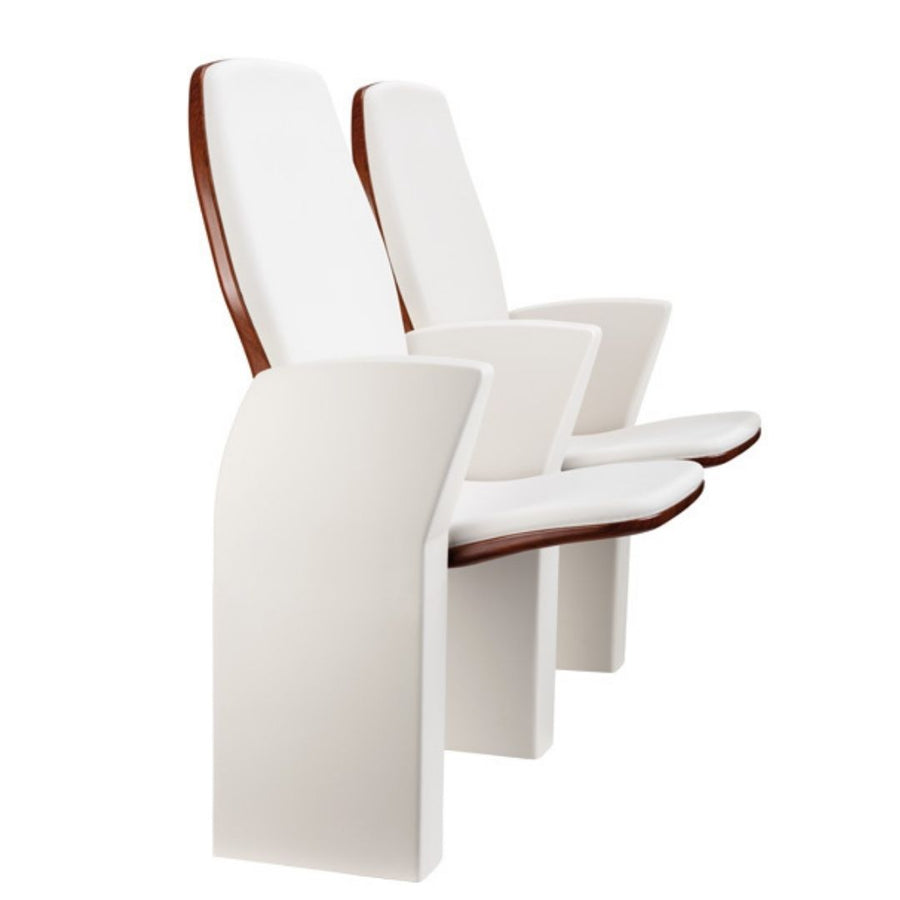

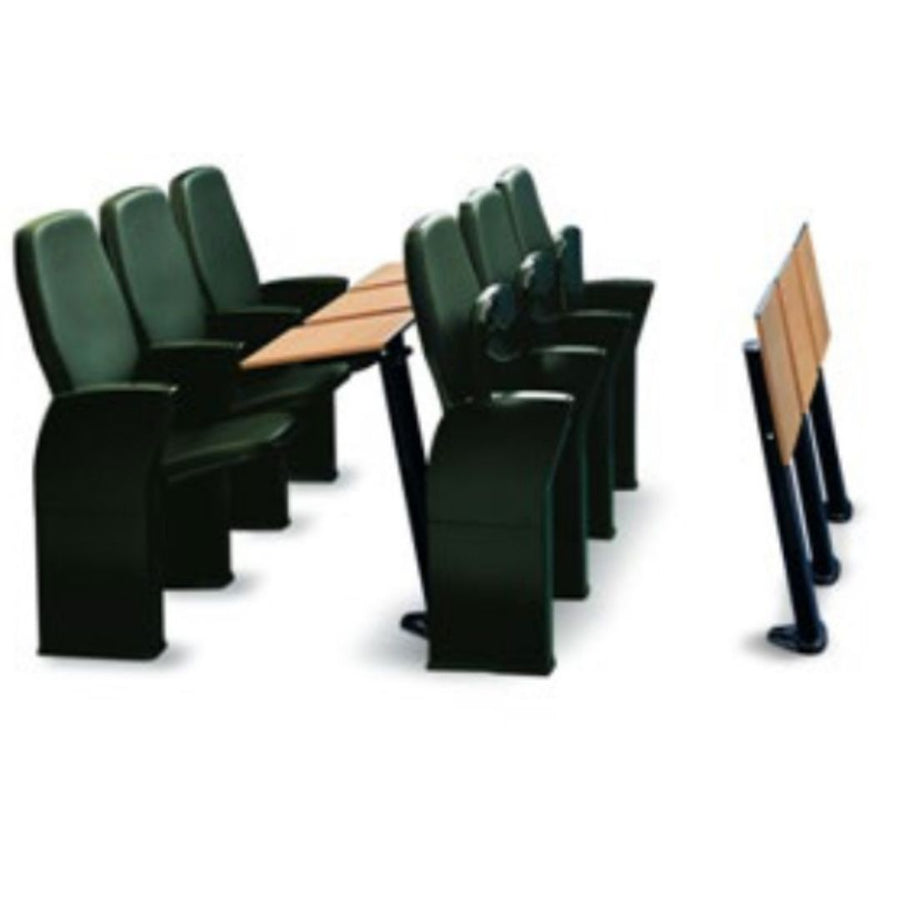

LYON ARMCHAIR 13108 | COMMERCIAL ARMCHAIRS

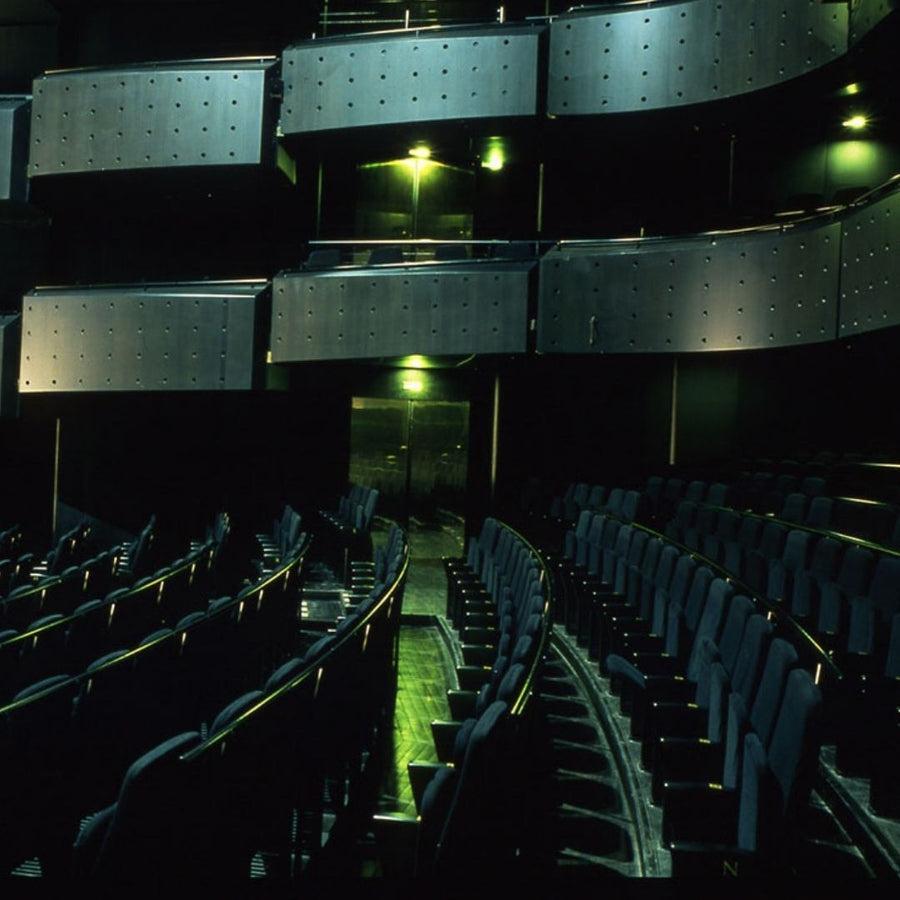

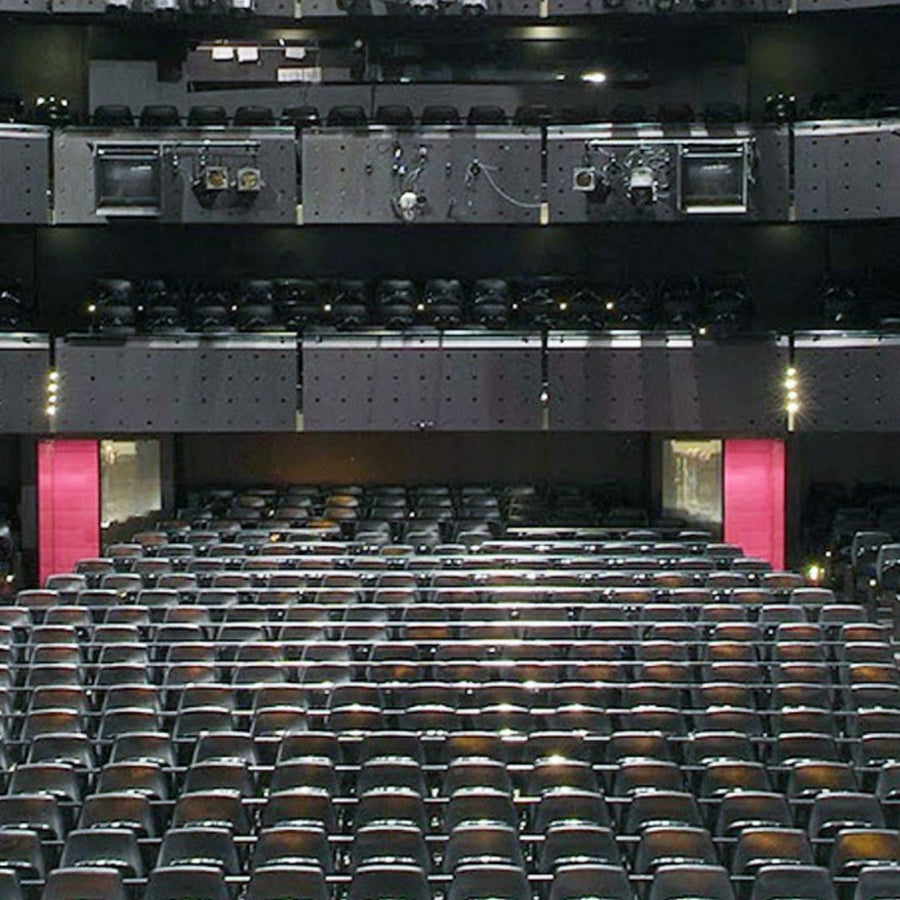

Modular seat, with folding seat, with elegant, fine lines and compact dimensions, with special acoustic characteristics, perfect for auditoriums, concert halls or performing arts centers.

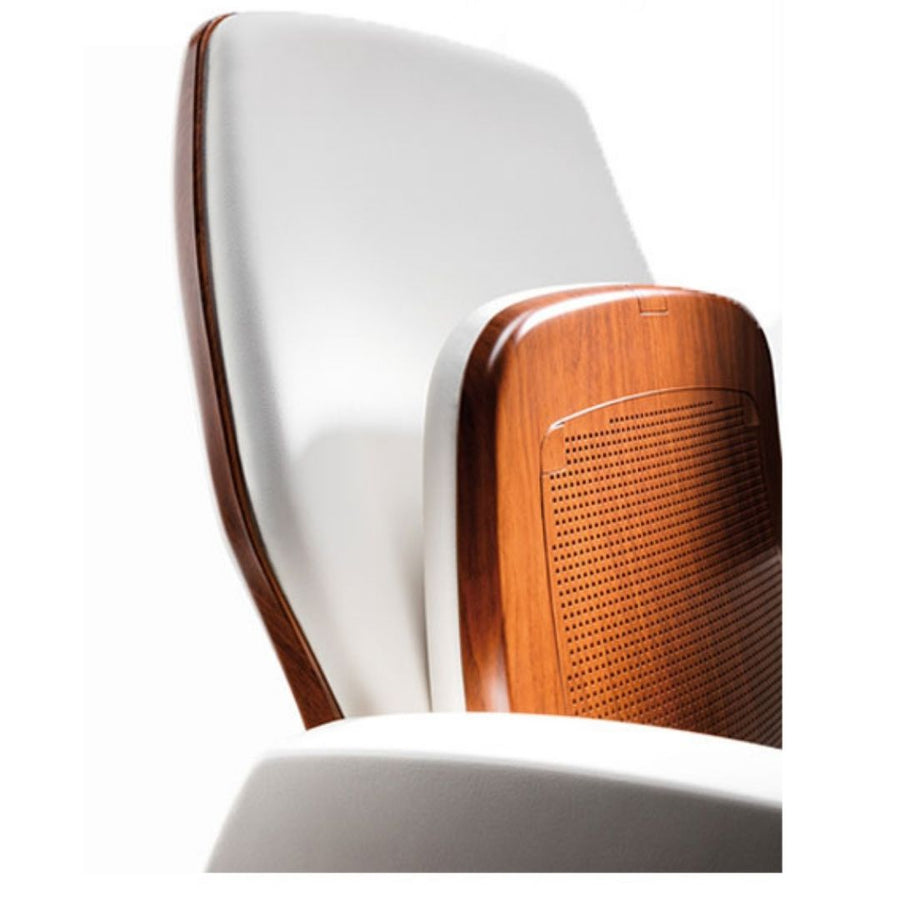

The seat, made of upholstered foam, is supported by a tubular frame, to the back of which an injected polyamide shell is attached. This shell is perforated, giving the seat exceptional acoustic characteristics.
The backrest is attached to a tubular frame to which the rear part of the shell is attached, with foam upholstered in the front.
The seat design allows the distance between axles to be modified from 53 to 56 cm. and adjust the angle of inclination of the backrest, allowing perfect alignment of the backrest and seat responding to the specifications of the place.
The seat and backrest are made of two blocks of molded polyurethane foam that incorporate an internal structure of injected polypropylene. The upholstery is completely integrated into the foam using the system Integral Form , without seams or stitching.
The seat rises automatically thanks to two springs located inside the side panels. It is extremely quiet and requires no maintenance.
The seat is supported by two aluminum side structures, each composed of three interconnected elements, the upper part serving as armrests, forming a single unit.
Technical specifications
› Types of Environments
- Congress Center.
- Audience.
- Corporate Rooms.
- Art Centers.
- Theater.
- Universities.
- Cult Center.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
> Aluminum
- Cast aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
› Polyamide
- Material: Polyamide.
- Tensile strength according to ISO 527-2: 220 Mpa.
- Modulus of elasticity according to ISO 527 -2: 14000 Mpa
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
