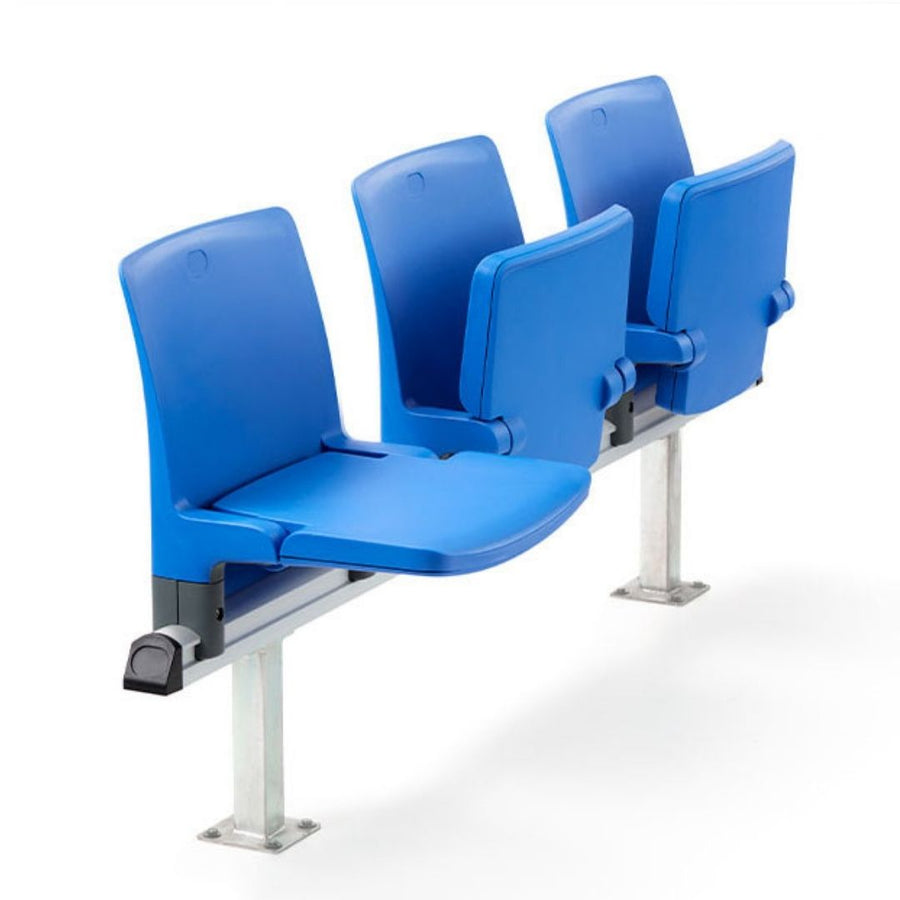

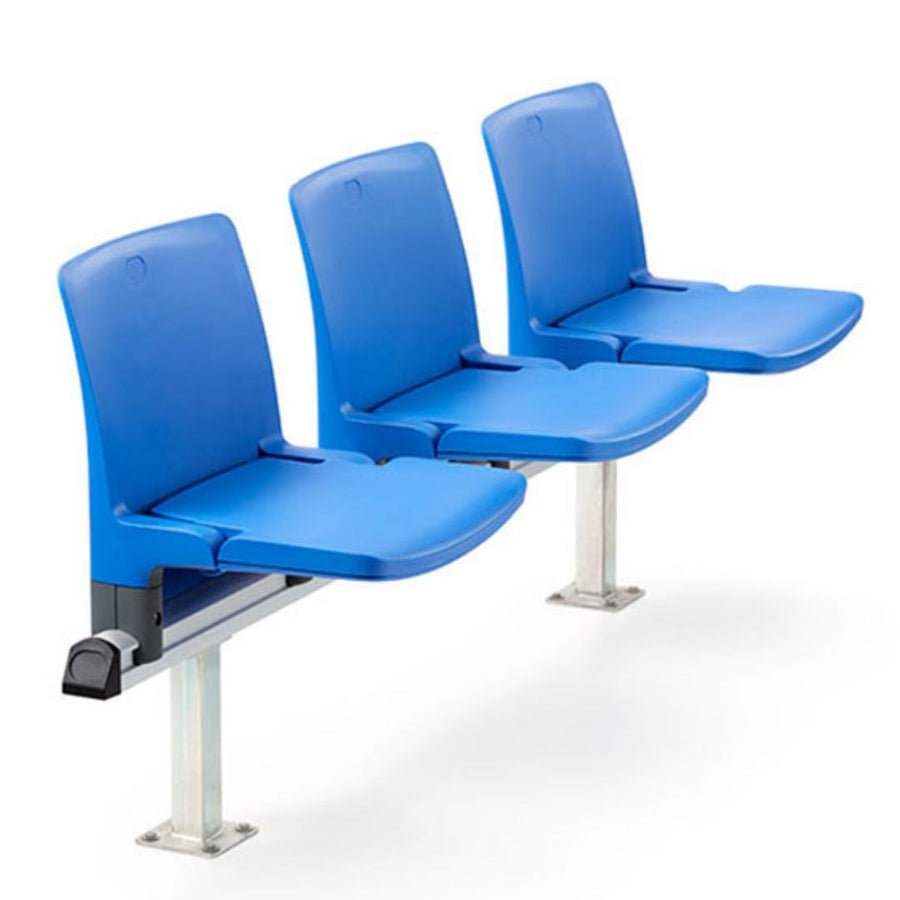

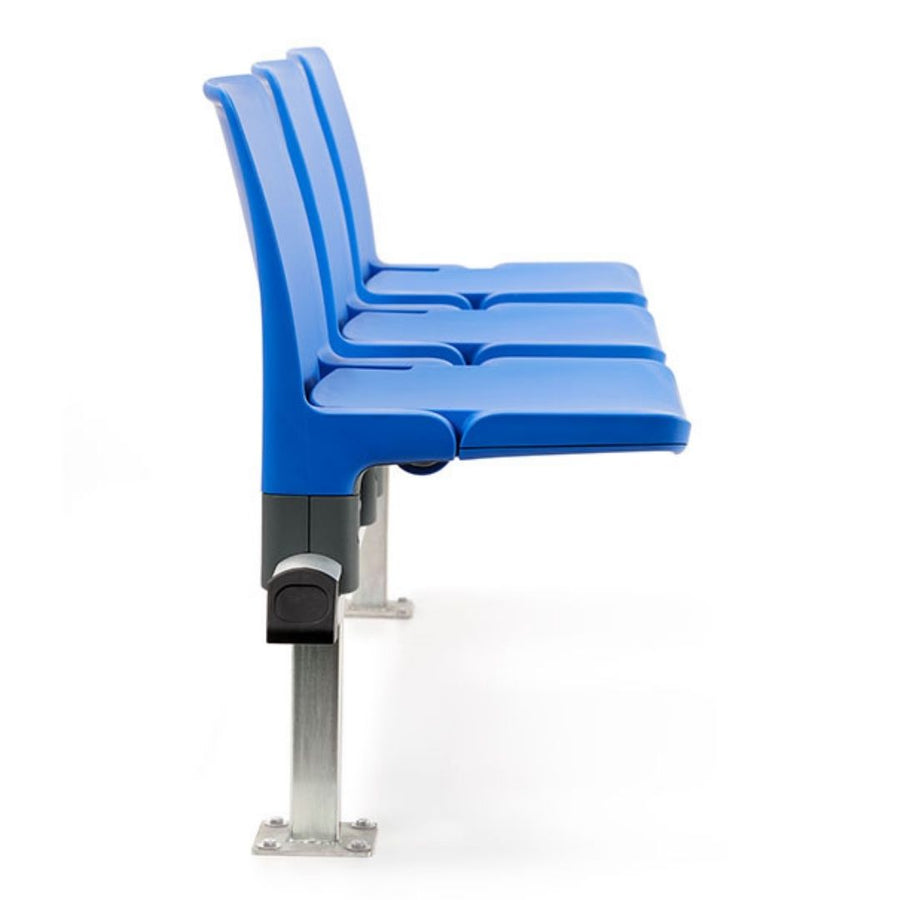

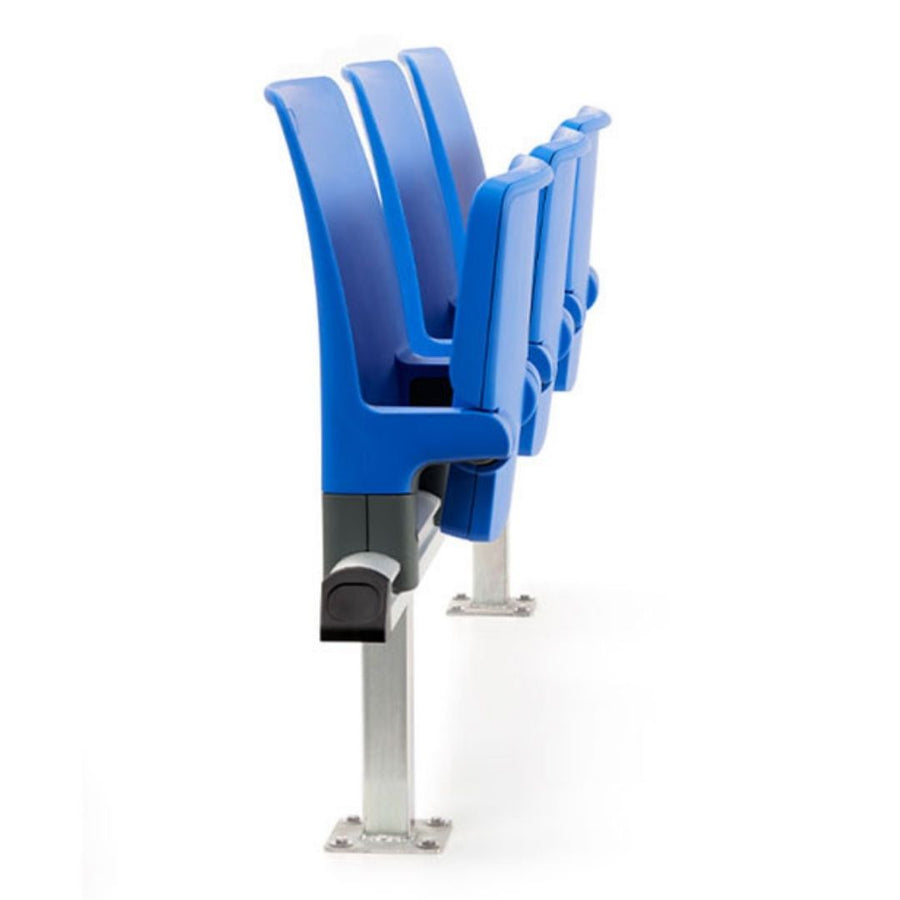

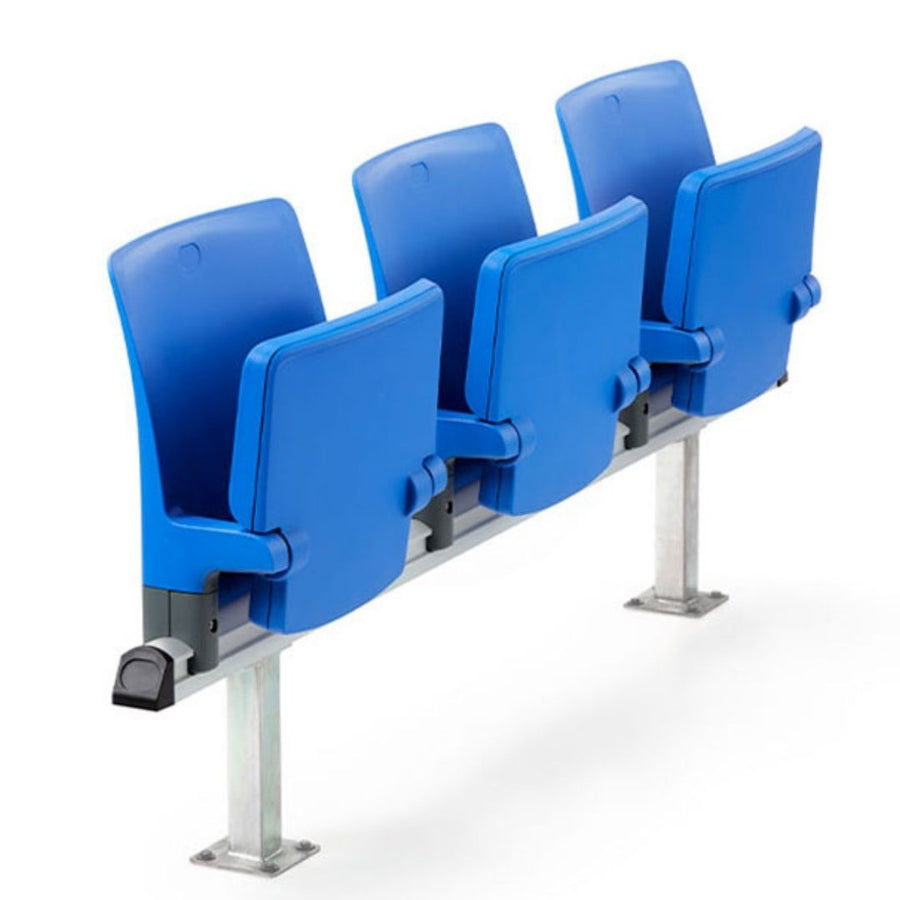

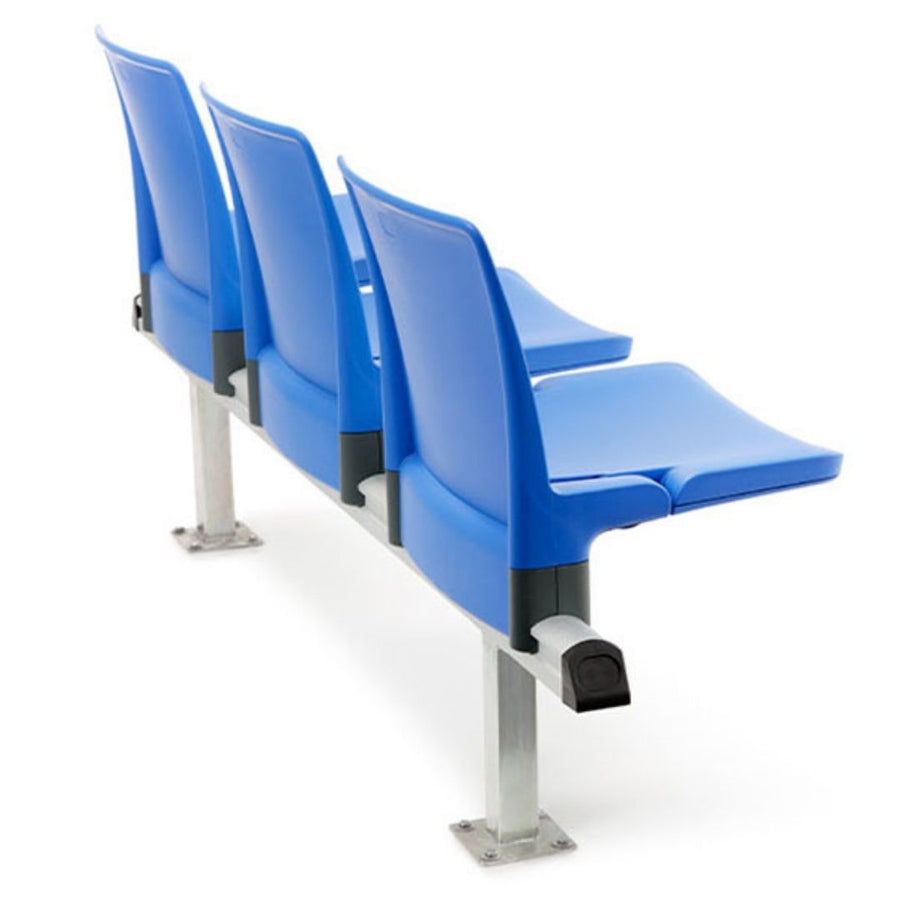

IZZY ARMCHAIR 322-323 | COMMERCIAL ARMCHAIRS
Izzy, designed by Llusca Design , is a high-performance multi-purpose folding seat specially designed for stadiums, arenas and sports facilities, which meets the requirements of FIFA and other international sports federations.
Izzy offers great versatility, and its installation on an extruded aluminum profile, together with the appropriate fixings, allows you to modify the distance between seats, as well as adapt the venue to the desired capacity.

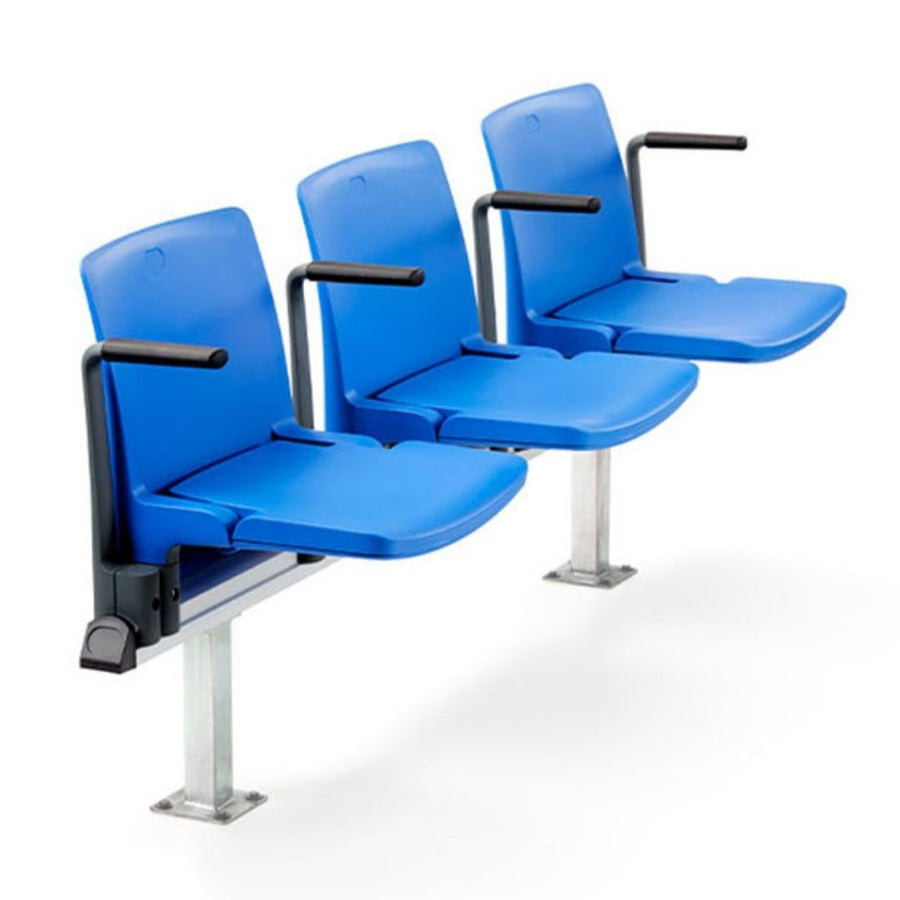

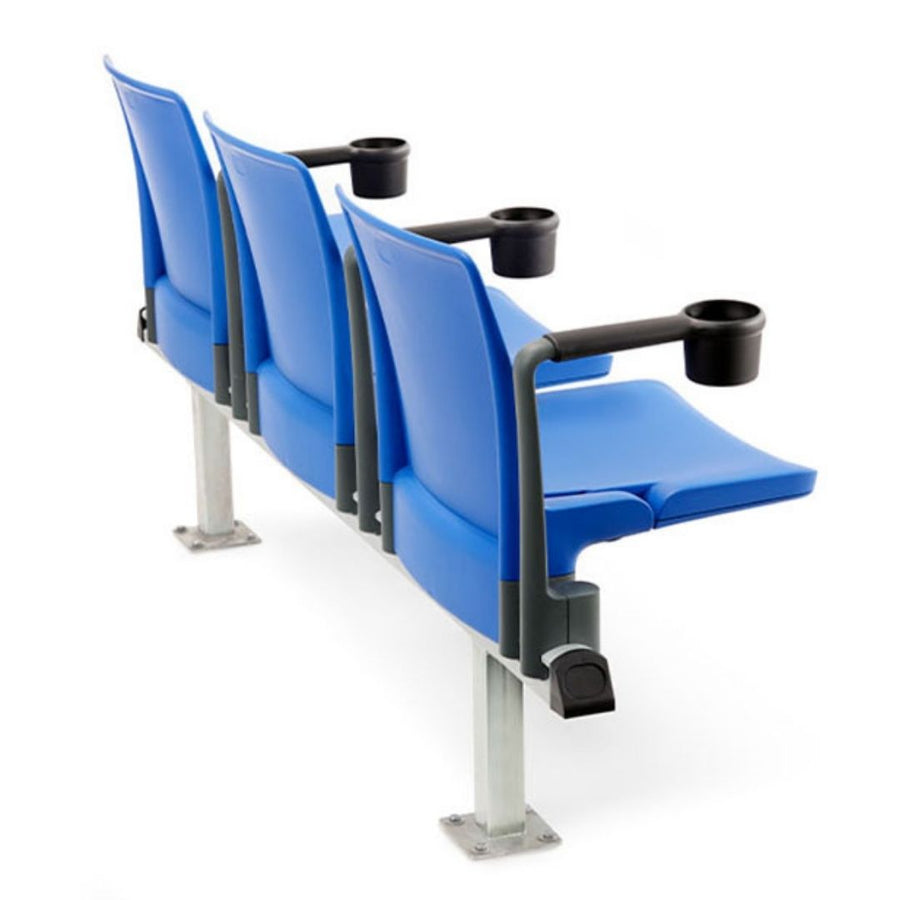

Its design allows the incorporation of multiple accessories, such as armrests, cup holders or electronic components such as power or data sockets.
Made of injected copolymer, it is treated to prevent scratches and the accumulation of dirt, making it a maintenance-free armchair.
Its design is suitable for both indoor and outdoor use. The outdoor version is treated with additives for UV protection and color stabilization, ensuring a long-lasting product.
Optionally, upholstered cushions can be incorporated, which provide maximum comfort and a high-end look perfect for VIP areas.
The numbering can be added to the top of the backrest using a plate that can be placed on both the back and the front for better visibility.
Optionally, the club or entity crest can be added during the manufacturing process for a permanent result.
The seat is mounted on an aluminum profile that can be fixed to a steel foot anchored directly to the floor or mounted on a riser and fixed to the riser, with the appropriate anchors depending on the characteristics of the surface.
Technical specifications
› Types of environments
- Stadiums.
- Sands.
> Structure
- 6005 Aluminum Extruded Bar
> Feet
- Made of steel tube and sheet, arc welded with continuous wire.
- Hot dip galvanized after cutting and welding.
- Hot galvanized according to EN-ISO 1461 Standard. Minimum thickness 45 microns.
> Polypropylene
- Material:
- For interior: Polypropylene copolymer IF-727
- For outdoors: IF-728 copolymer polypropylene with color stabilizing additives against the action of UV rays
- Tensile strength according to ISO 527-2: 26 Mpa Modulus of elasticity according to ISO 527-2: 1250 Mpa
> Paint
- Aluminum parts: Electrostatic polyester powder
- Steel parts (optional) :
- Interior: Electrostatic powder polyester.
- Exterior: Electrostatic powder polyester (with electrolytic coating).
- Paint thickness:
- Interior: 70-80 microns.
- Exterior: 90-100 microns. ·
- Grid adhesion according to UNE-EN ISO 2409: 100%
› Resistance and durability classification:
- UNE-EN 12727 Level 4 (Severe use).
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› UV guarantee: 2 years.
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
