ARMCHAIR MEGASEAT 9042 | COMMERCIAL ARMCHAIRS

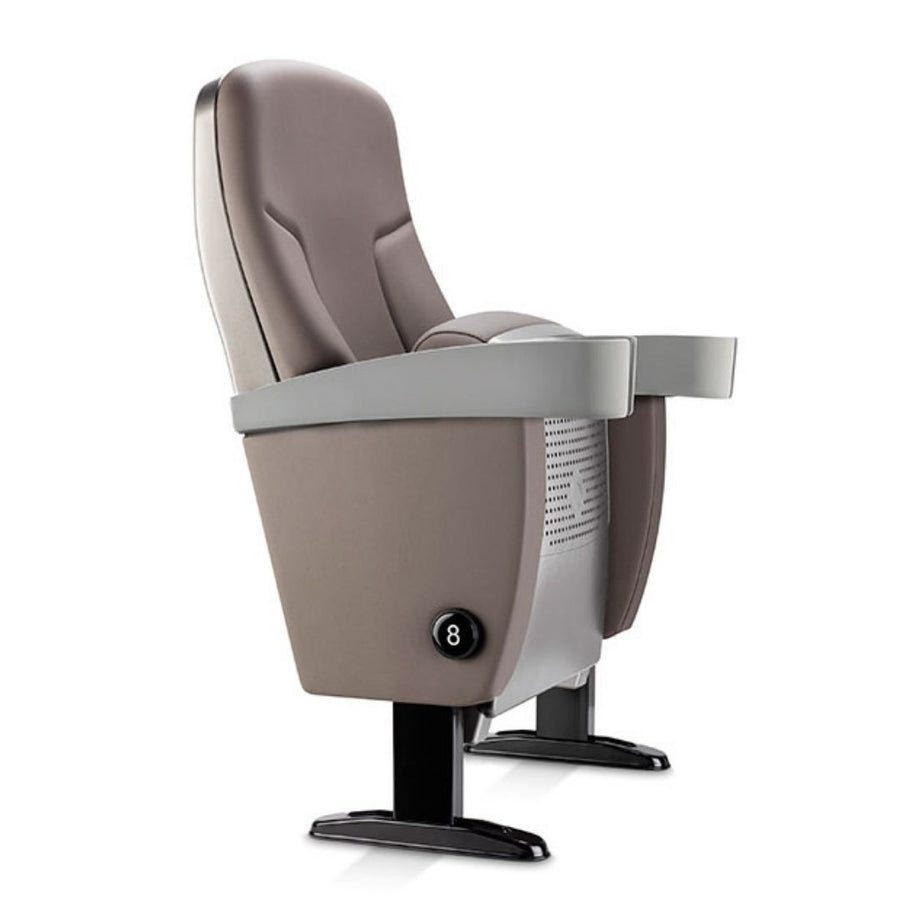

The Megaseat 9042 is a modular seat made up of completely interchangeable parts. With excellent acoustic performance, this seat has been specially designed for use in cinemas.

The seat is mounted on two metal feet and supported by a rigid bridge that ensures the stability of the rows.

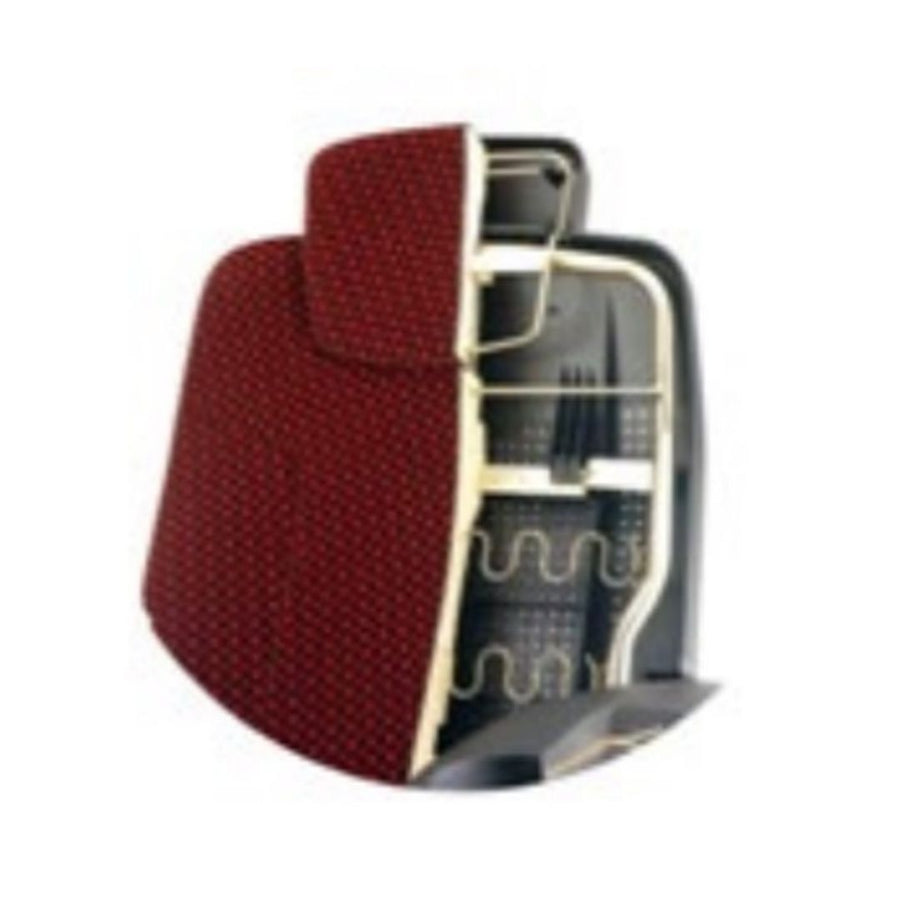

The seat and backrest are composed of two molded polyurethane foam blocks that incorporate an internal metal structure and the upholstery that is completely integrated into the foam using the system. Integral Form , seamless.

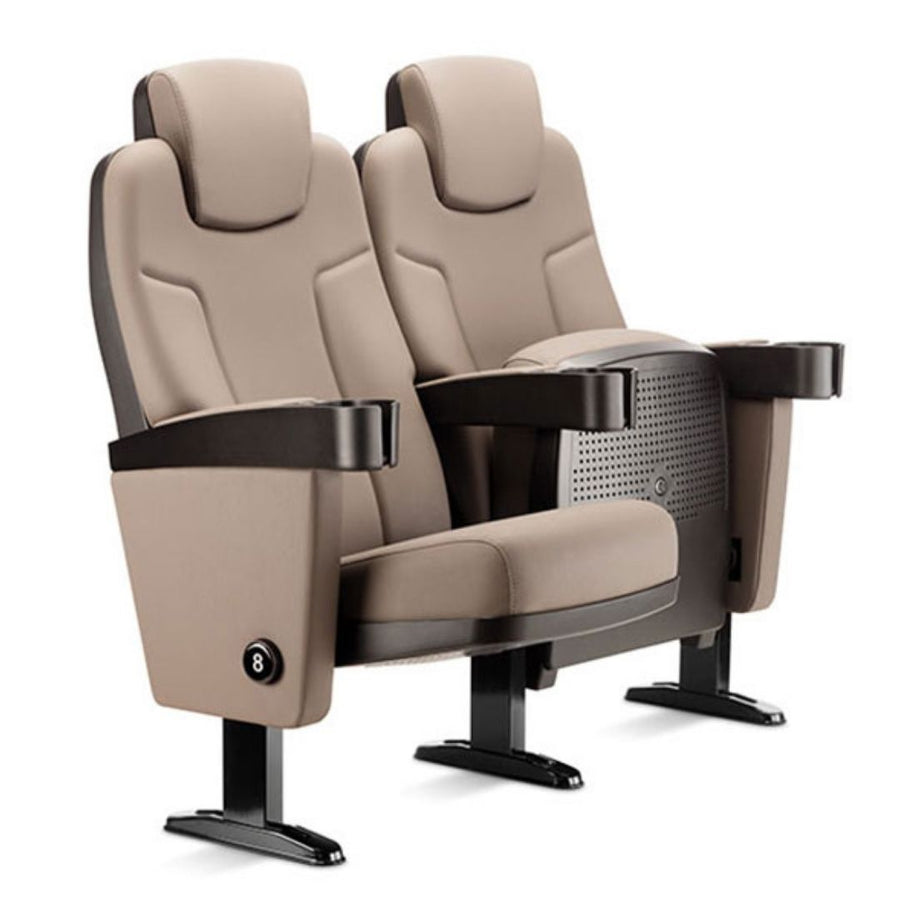

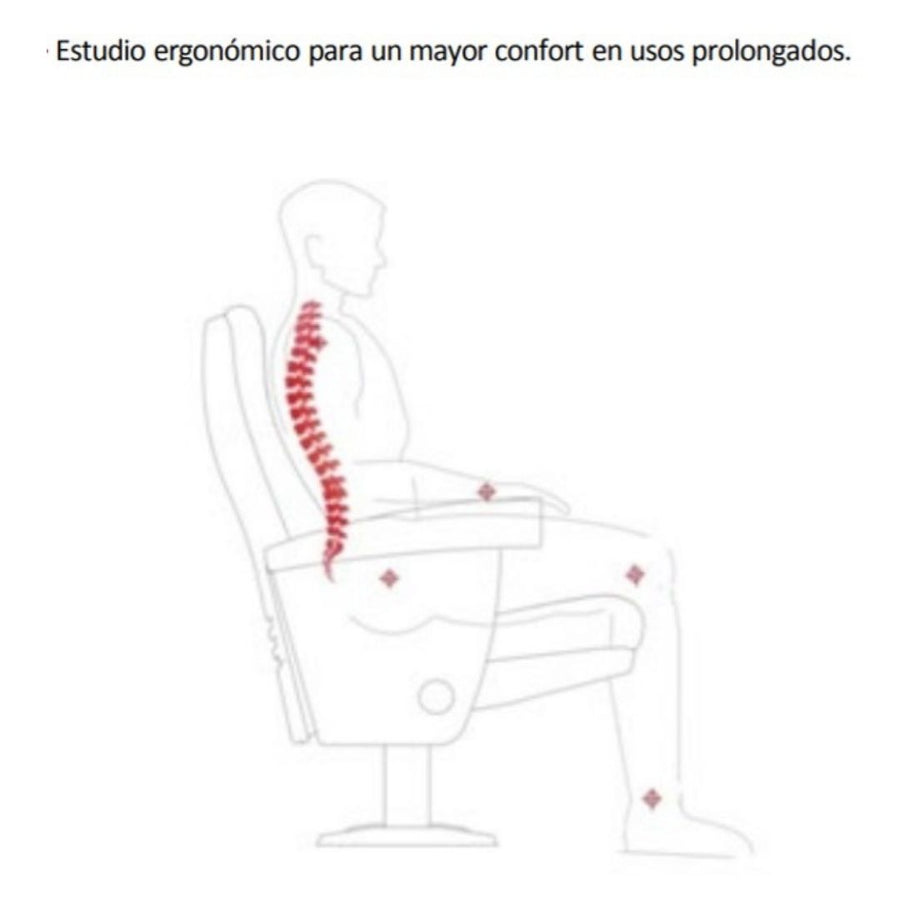

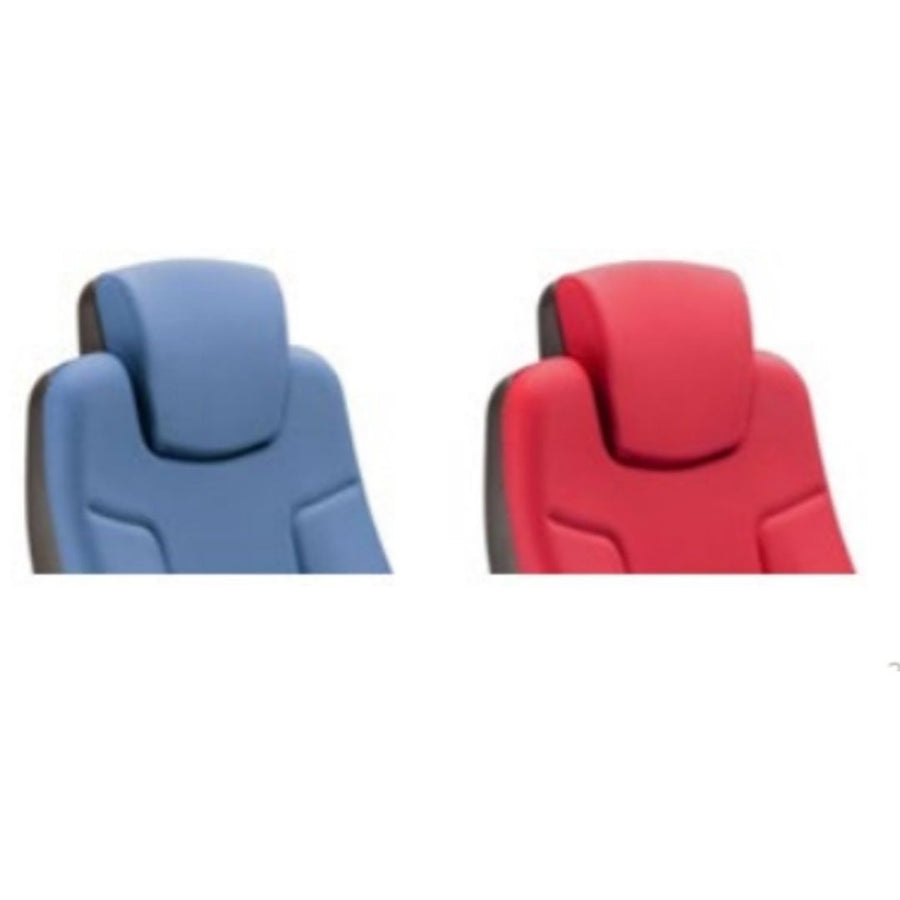

The seat cushion has no grooves of any kind to prevent the accumulation of dirt. The backrest cushion is anatomically contoured to ensure user comfort. Optionally, a headrest can be incorporated.

The seat, backrest and headrest have a fully washable polypropylene back shell that prevents scratches and dirt from appearing on the rear upholstery. Optionally, the shells can be upholstered.

The seat folds automatically using an extremely silent double spring system located inside the seat base, ensuring that the space is always tidy and ensuring a silent environment when the user vacates the seat.

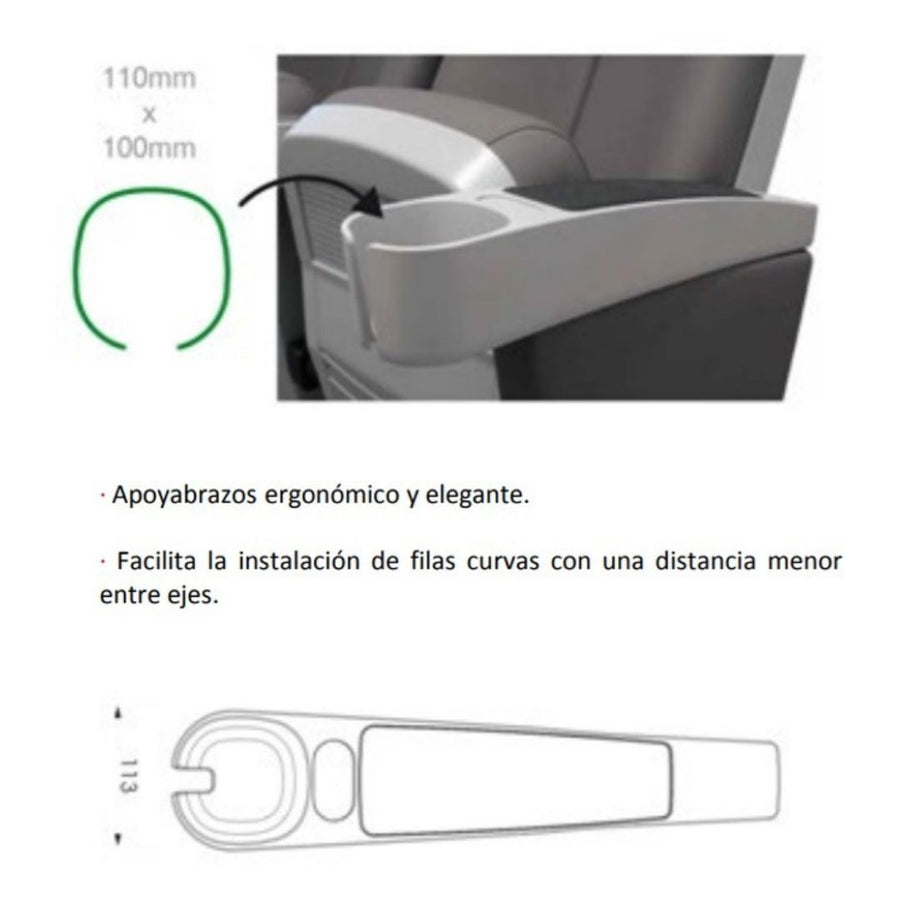

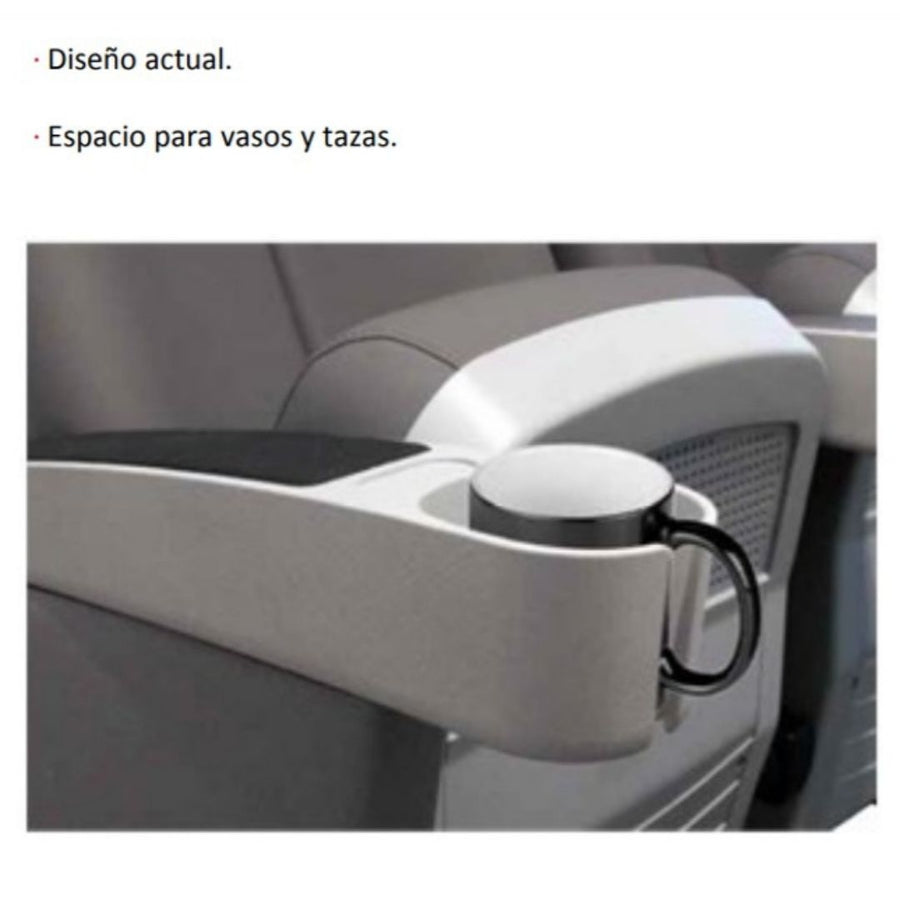

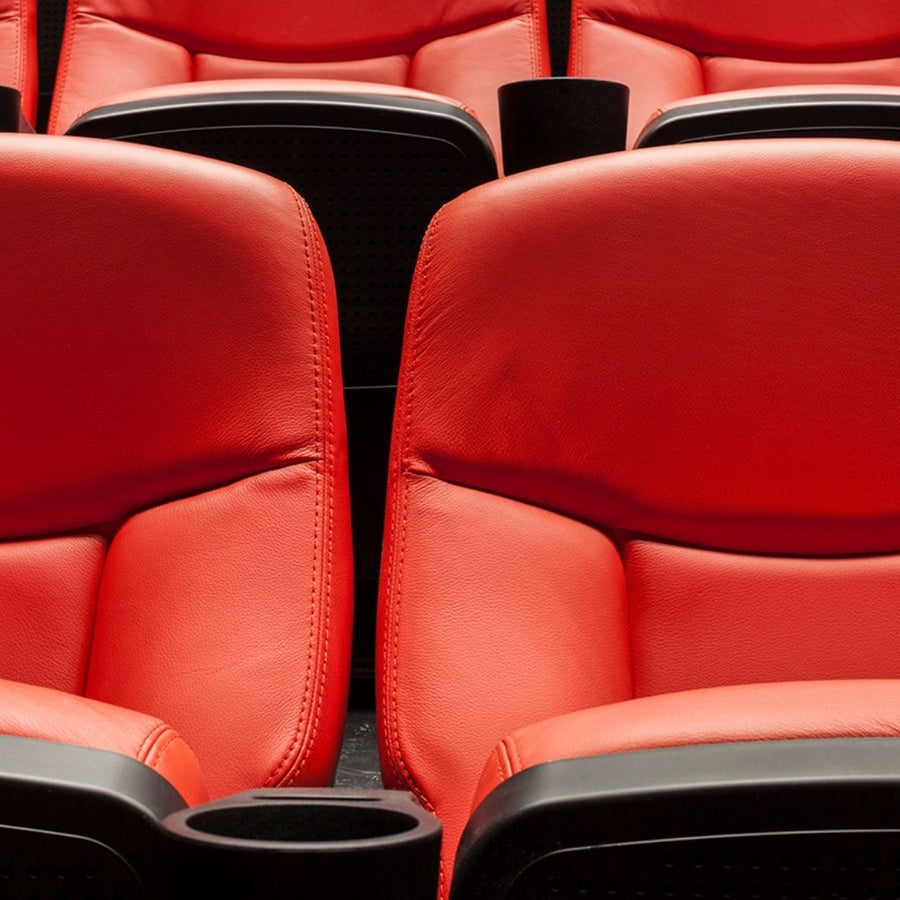

The armrests are double injected, combining polypropylene for the rigid parts and a "soft" elastomer on the surface of the armrest. On the front, forming part of the same piece in a fully integrated manner, there is a cup holder, which is easy to clean thanks to its design.

Technical specifications

› Types of environments

• Congress Center.
• Auditoriums.
• Conferences.
• Corporate Rooms.
• University.
• Stadiums and Arenas.
• Worship Center.

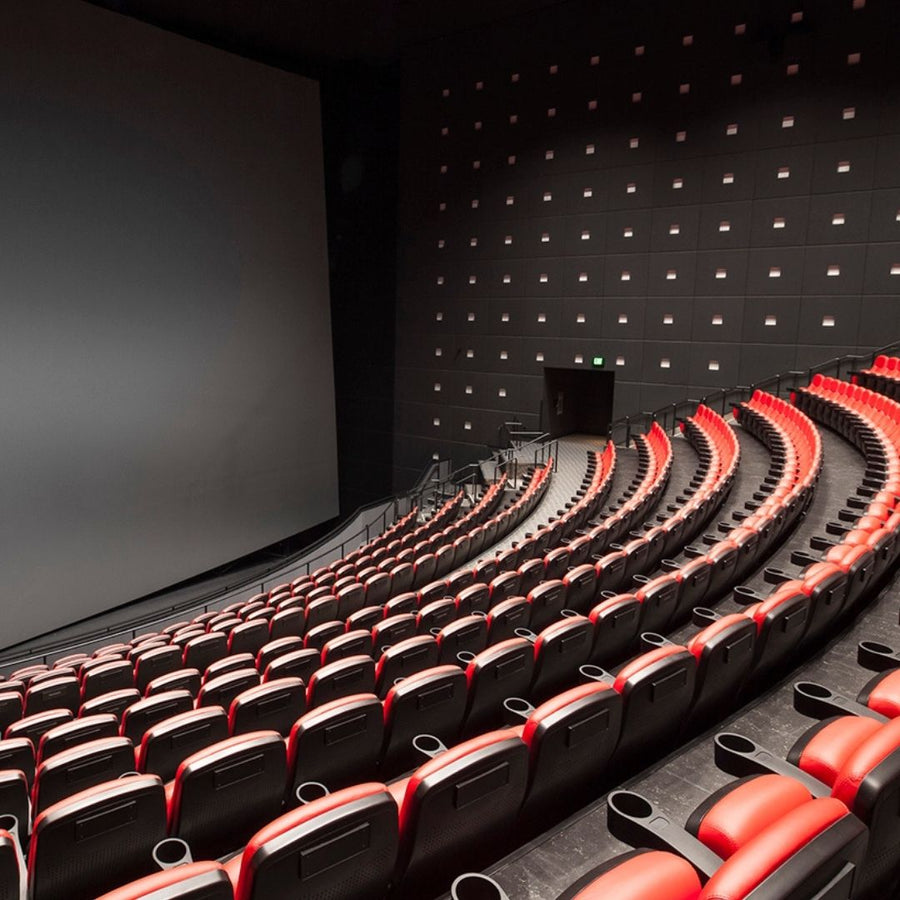

• Cinema.

> Structure

• Made of steel tube and sheet, arc welded with continuous wire.

> Polyurethane foam

• Seat density: 60-65 Kg/m3.
• Backing density: 50-55 Kg/m3.

> Paint

• Electrostatic polyester powder paint.
• Paint thickness: 70-80 microns.
• Grid adhesion according to UNE-EN ISO 2409: 100%.

› Upholstery

• Fire reaction standards:

- Spain: UNE-EN 1021 Parts 1 and 2.

- France: NF D 60-013.

- Italy: UNI 9175 Class 1.IM.

- Germany: DIN 66084.

- USA: CAL TB 117.

> Polypropylene

• Material: Polypropylene Copolymer IF-727.
• Tensile strength according to ISO 527-2: 26 Mpa.
• Modulus of elasticity according to ISO 527-2: 1250 Mpa.

> Fire resistance

• BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
• USA: CAL TB 133 (with approved fabric).

› Resistance and durability classification

• UNE-EN 12727 Level 4 (Severe use).

Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase)
