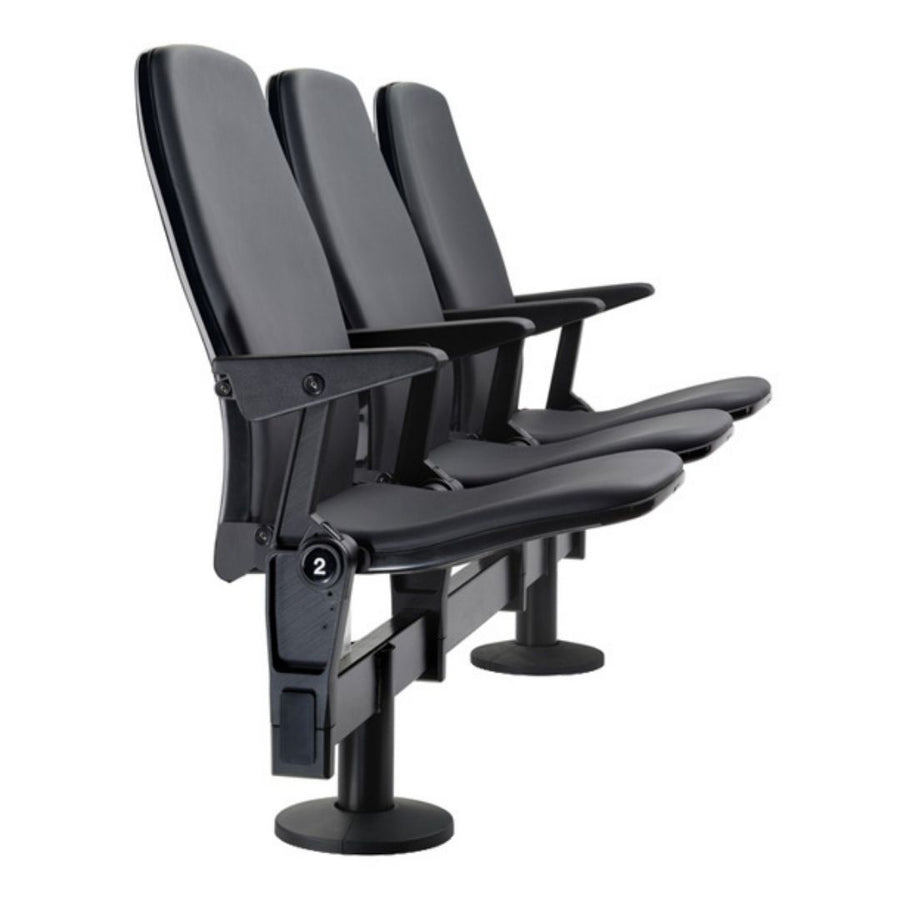

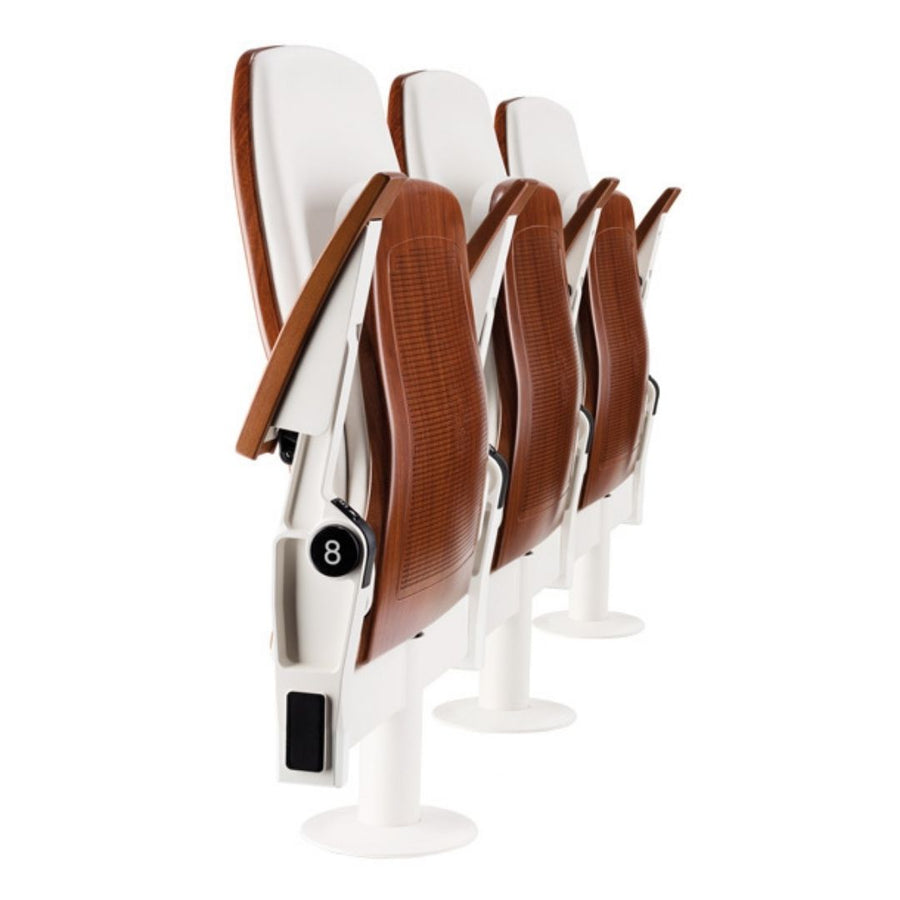

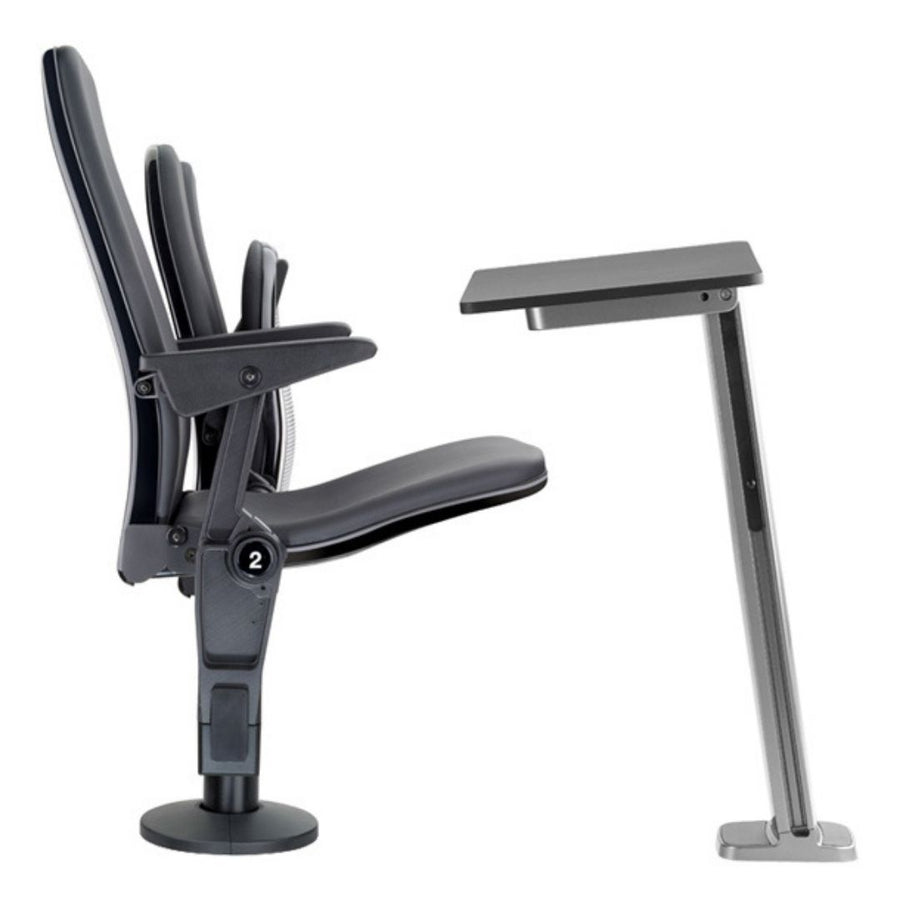

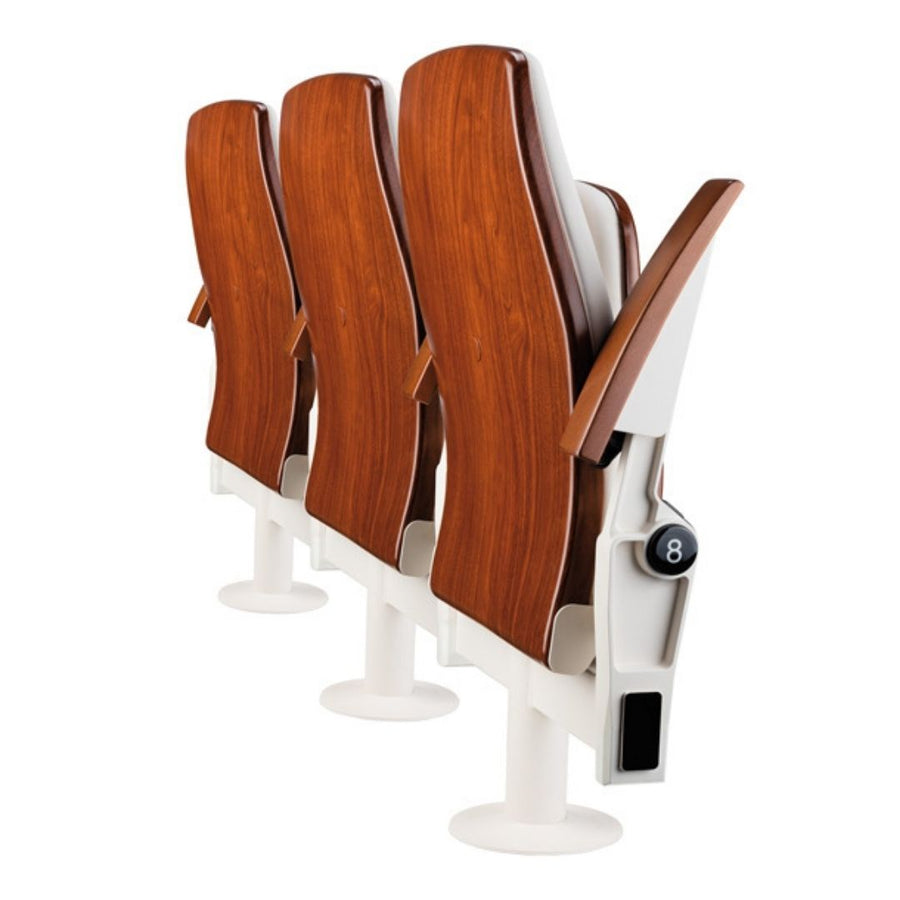

MINISPACE ARMCHAIR 5069 | COMMERCIAL ARMCHAIRS
The Minispace 5069 is a compact armchair that stands out for its elegance and aesthetics. This seat is an optimal solution for conference centers, auditoriums, corporate rooms and VIP areas of stadiums and arenas.

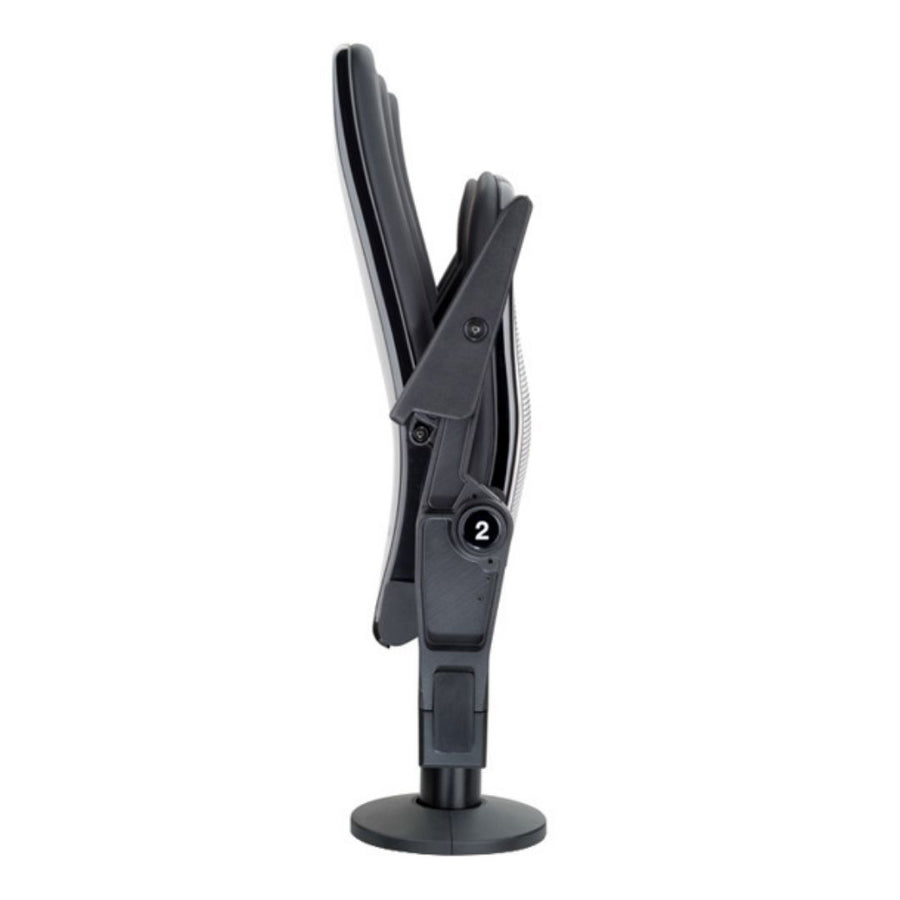

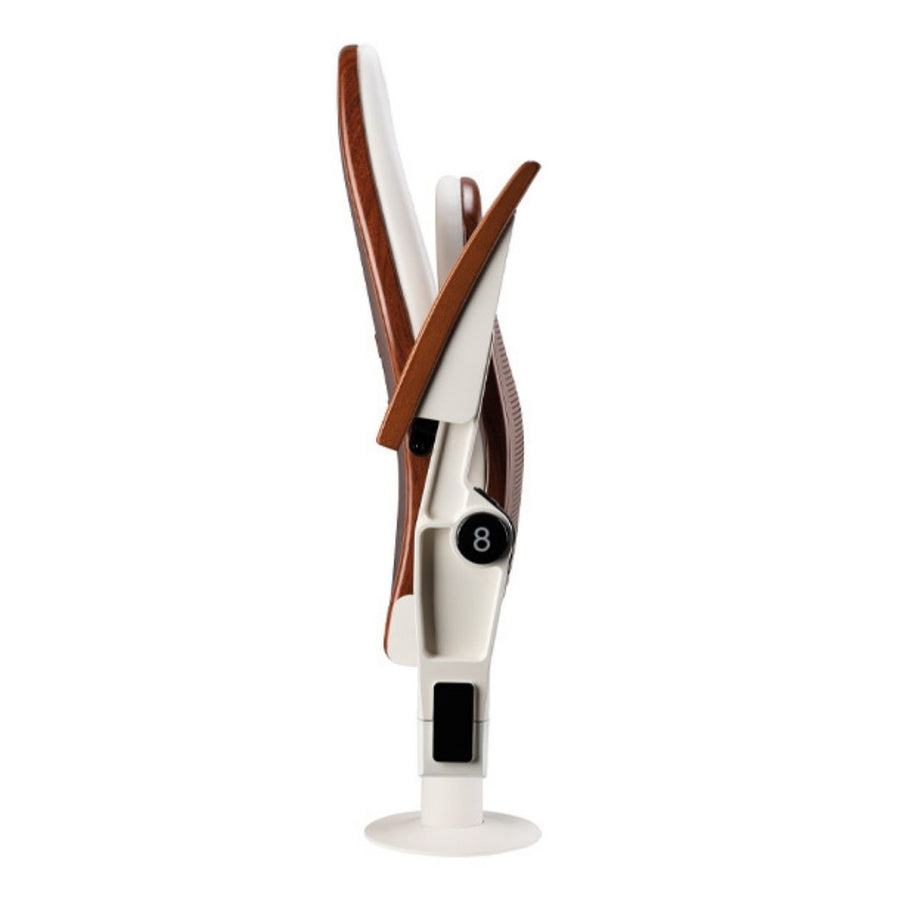

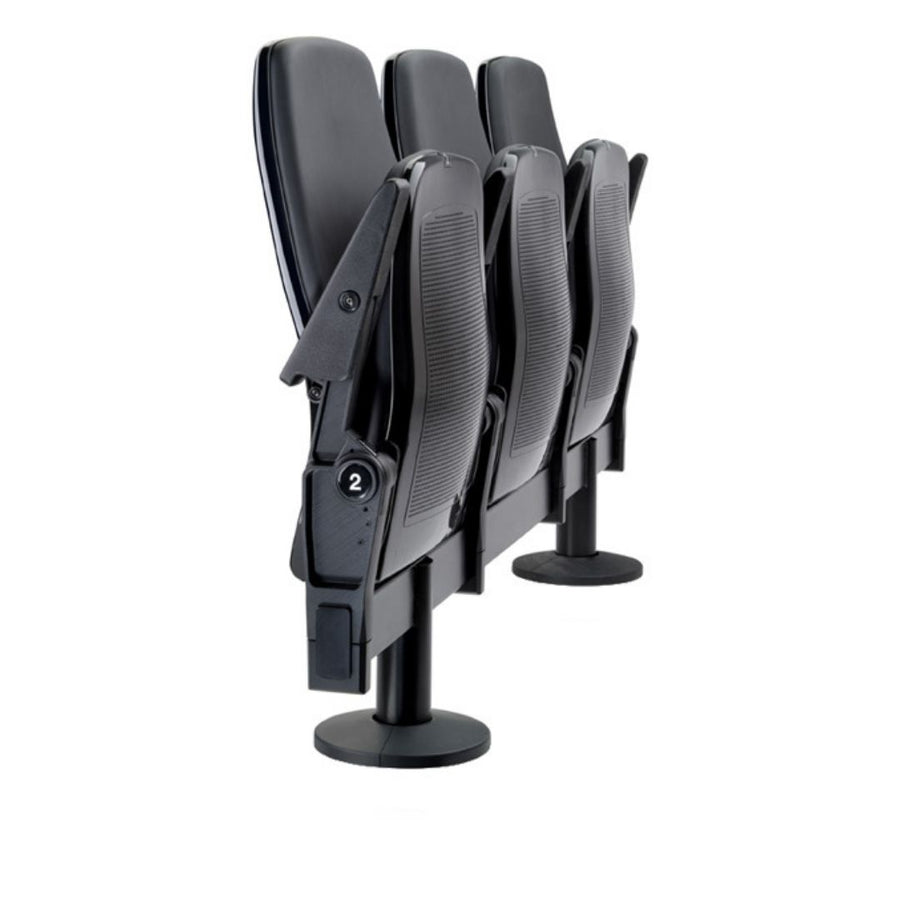

This armchair, mounted on a bar, has a folding system that consists of tilting the seat and moving the backrest forward until both are completely aligned with each other. Once the seat is folded, the depth of the seat is only 24 centimeters, which allows maximum optimization of space.
The folding mechanism has a controlled lifting technology system that prevents noise or shock when the seat is unoccupied. Folding is based on gravity, achieving high durability and minimal maintenance.
The seat and backrest consist of two blocks of molded polyurethane foam and have an internal structure of injected ABS with an upholstery completely integrated into the foam thanks to the patented Integral Form system, without seams.
The cushions are protected by a layer of polyamide to prevent possible deterioration due to daily and intensive use. The seat shell incorporates rear perforations that provide adequate acoustic absorption.
The armrests are made of a metal structure covered in cold-molded integral semi-rigid polyurethane foam. The seat, backrest and armrests are supported by painted cast aluminum sides and fixed to a steel tube structure.
Technical specifications
› Types of environments
- Multipurpose spaces.
- Congress Center.
- Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena
- Worship Centers.
- Arts Centers.
- Theaters.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117
› Wooden components
- Solid beech wood
› Varnish
- Material: Two-component polyurethane varnish (Water or solvent based).
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
› Polyamide
- Material: Polyamide.
- Tensile strength according to ISO 527-2: 220 Mpa.
- Modulus of elasticity according to ISO 527 -2: 14000 Mpa.
> Fire resistance
- BS 5852. Clause 12.
- Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
