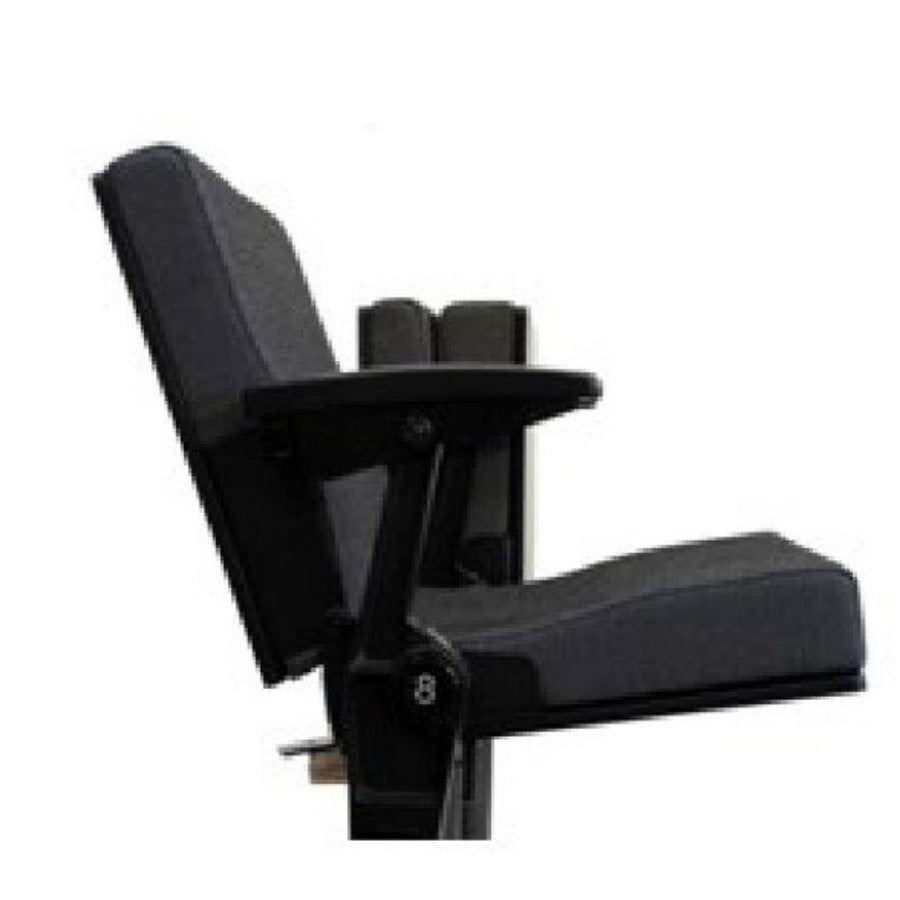

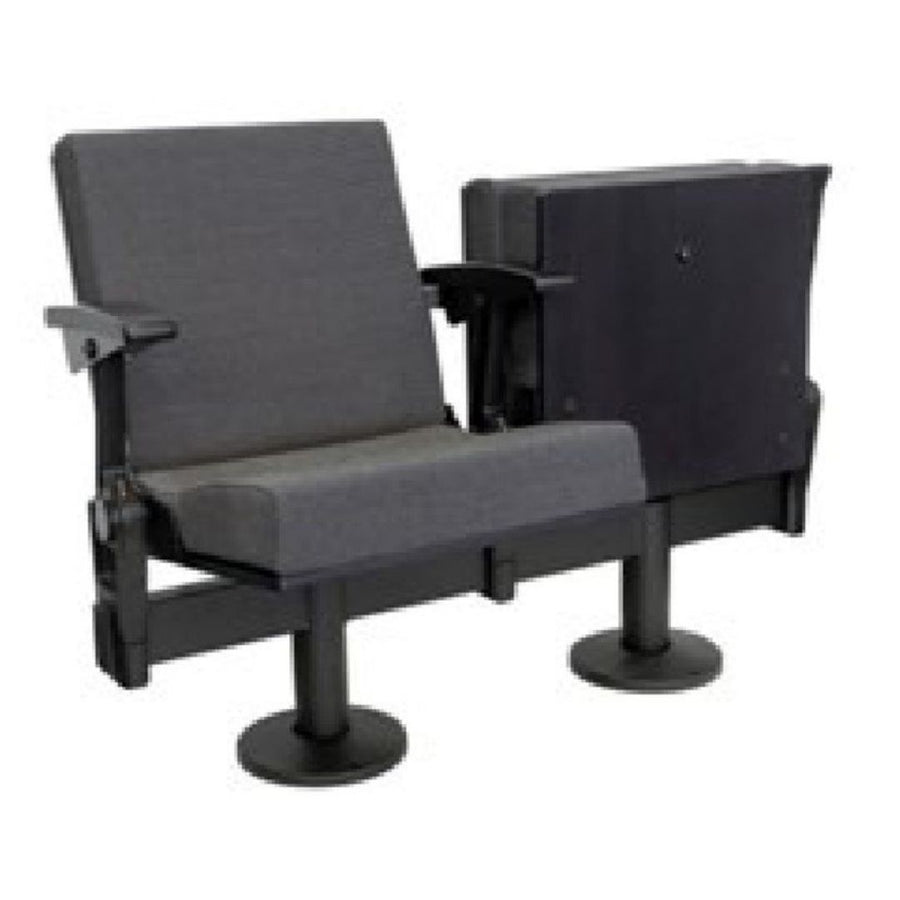

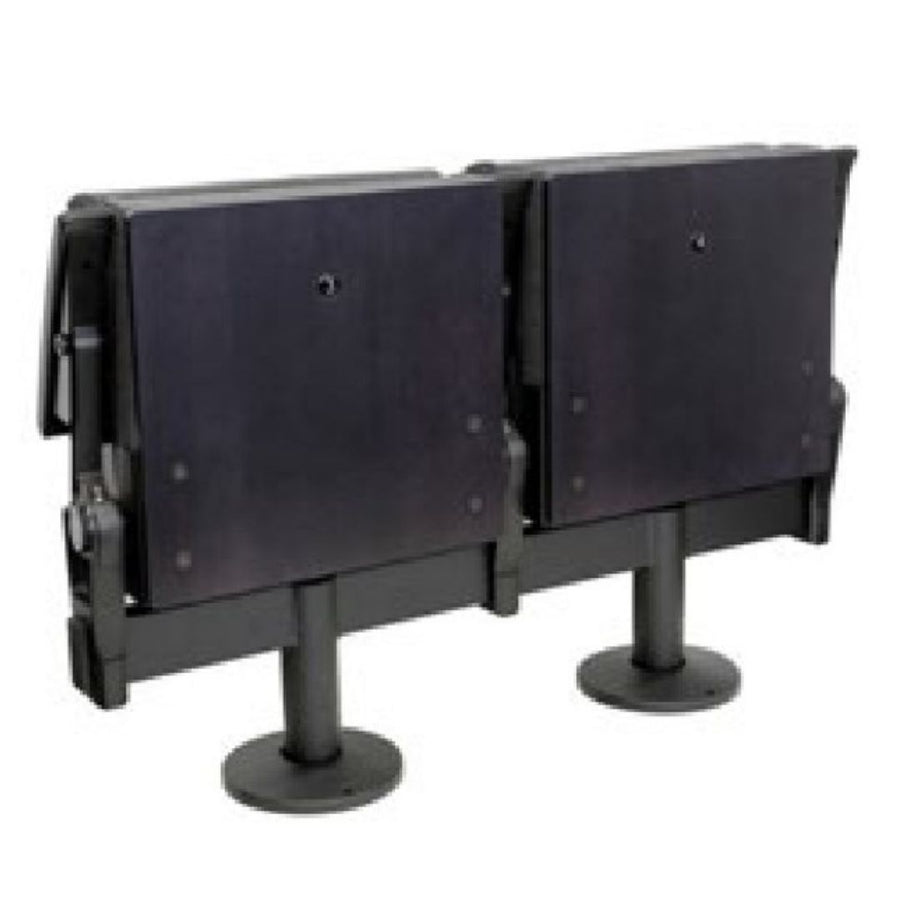

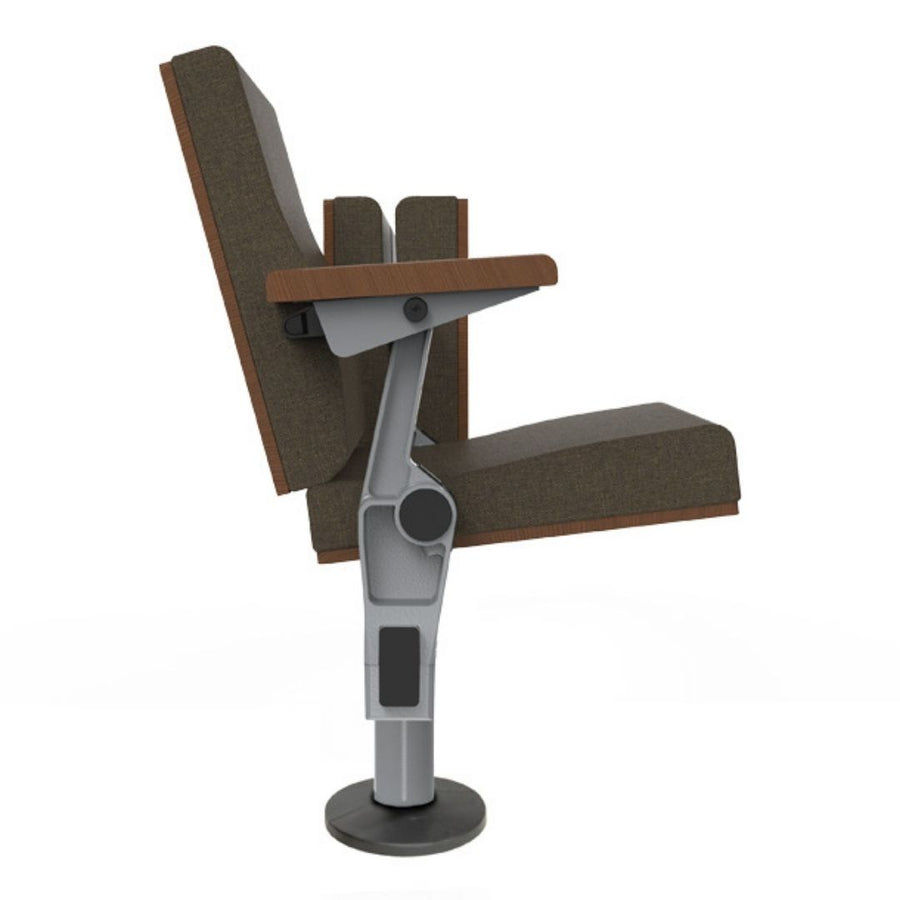

MINISPACE ARMCHAIR 5072 | COMMERCIAL ARMCHAIRS
The Minispace 5072 is an elegant folding armchair made of noble materials. Its design has excellent acoustic characteristics that make it a perfect solution for theaters, auditoriums, corporate rooms and convention centers.

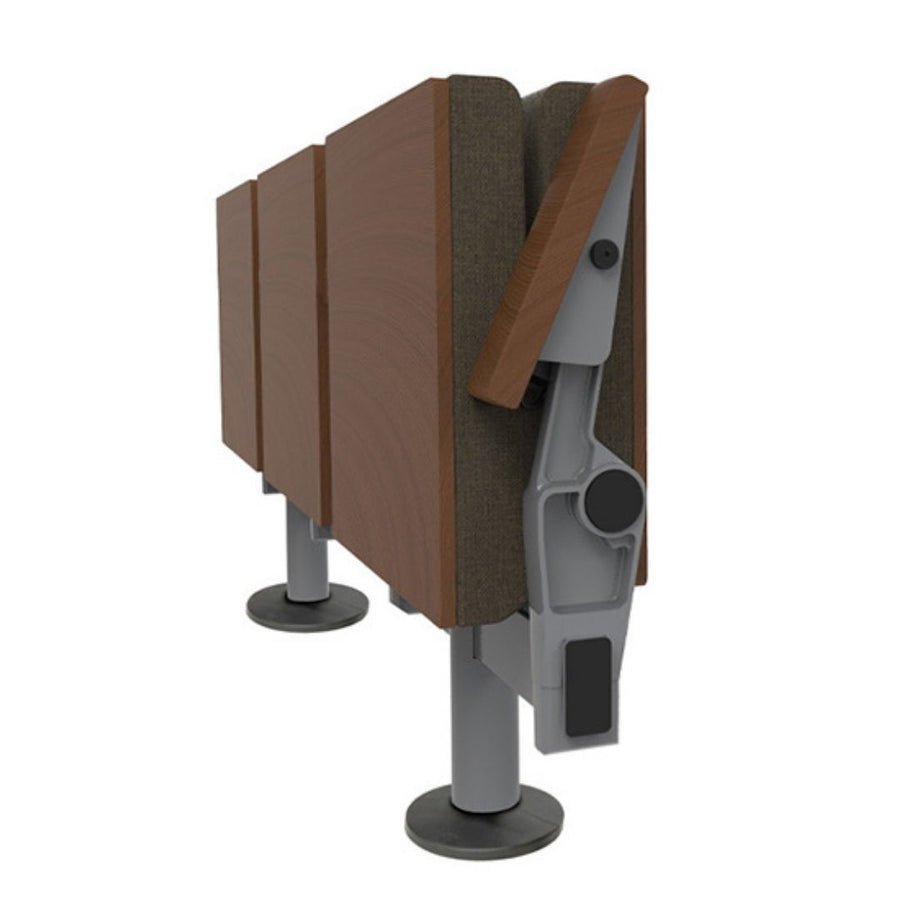

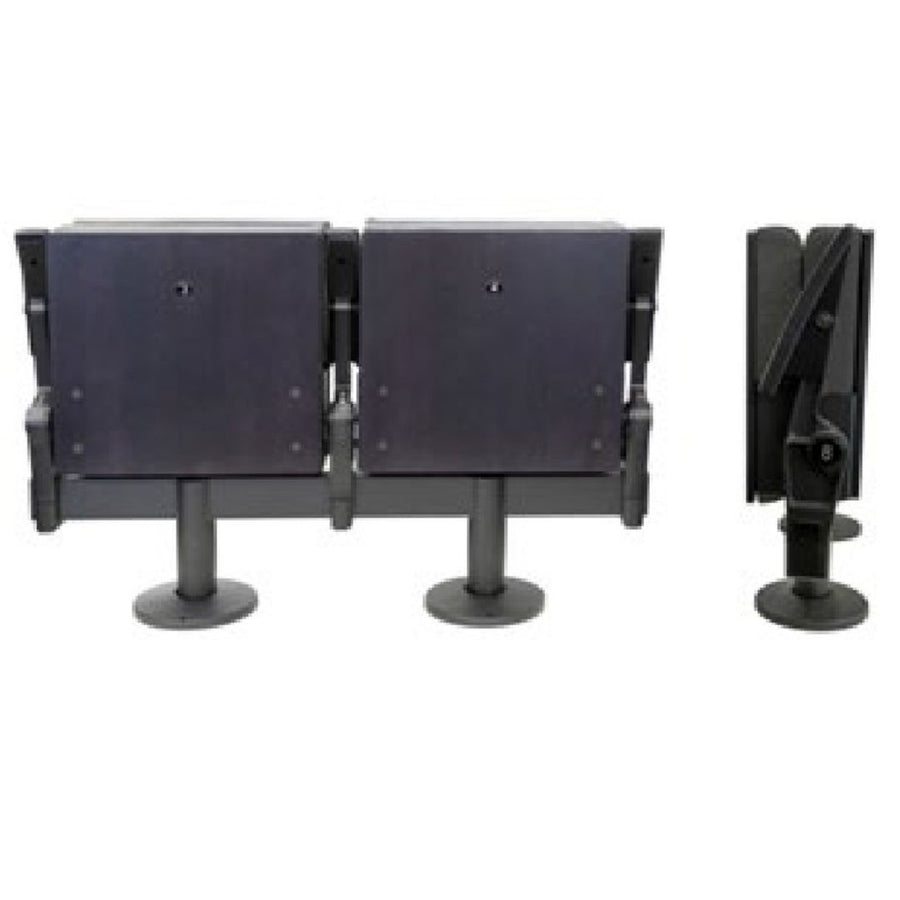

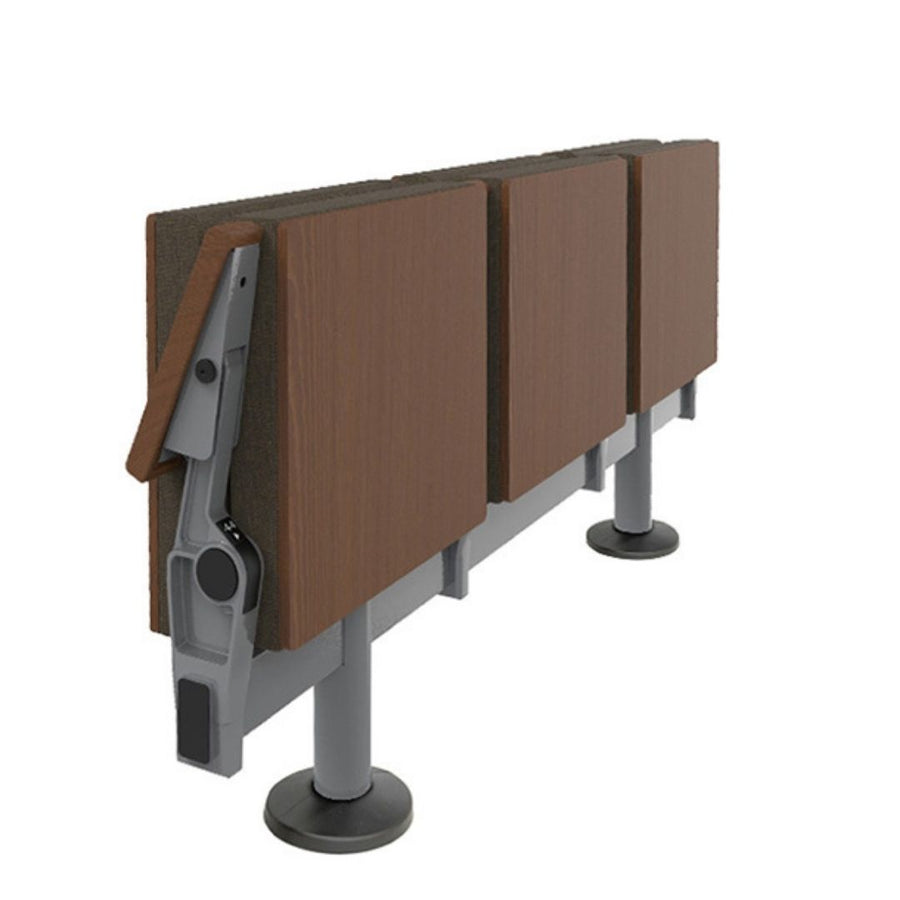

This chair, mounted on a bar, incorporates an automatic folding system through which when the seat is raised, the backrest moves forward until both parts are completely joined. Once the seat is folded, its depth is only 19 cm, which allows maximum optimization of space.
The Minispace 5072 incorporates a soft folding system that prevents noise or shocks when the user gets up from the seat. Folding is based on gravity, achieving high durability and minimal maintenance.

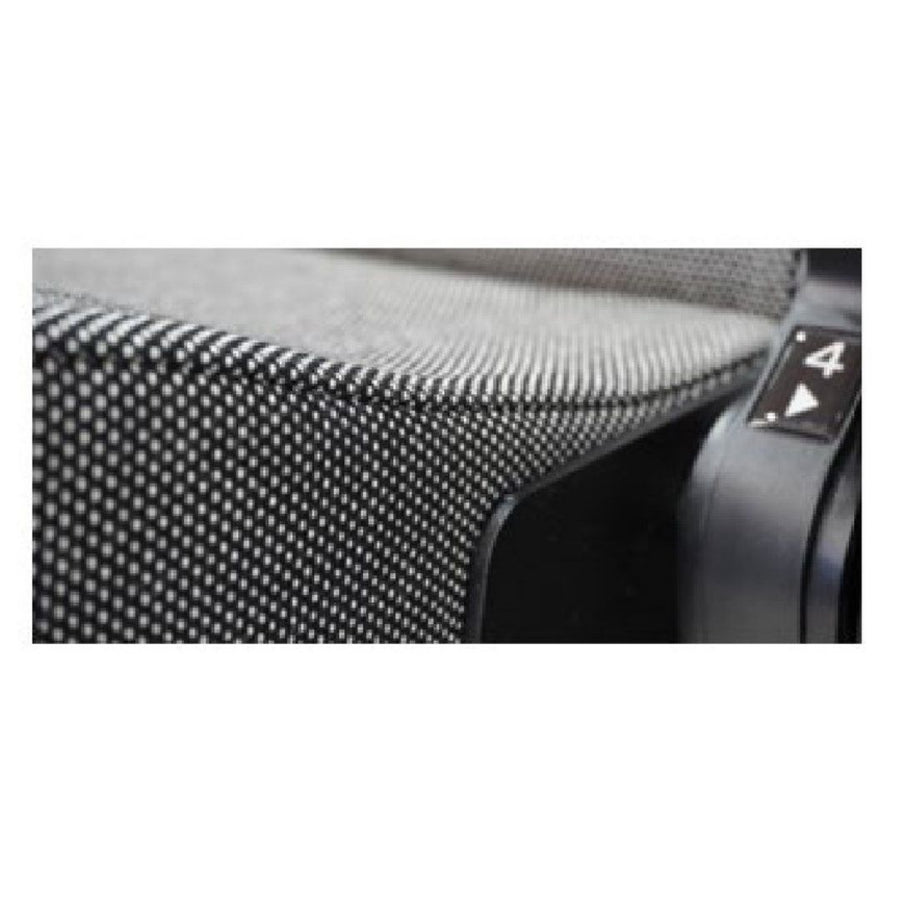

The seat is made up of a compact block of open-cell polyurethane foam, fully upholstered and easily interchangeable. This block is inserted into a 13 mm thick beech plywood board that acts as a protector for the back.
The seat and backrest are anatomically shaped to ensure maximum user comfort.
The arms have an interior metal structure with a varnished beech wood finish. The seat, backrest and armrest are supported by injected aluminum sides and fixed to a steel tube frame.
Technical specifications
› Types of environments
-
Multipurpose spaces.
- Congress Center.
-
Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena
- Worship Centers.
- Arts Centers.
- Theaters.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- - Spain: UNE-EN 1021 Parts 1 and 2.
- - France: NF D 60-013.
- - Italy: UNI 9175 Class 1.IM.
- - Germany: DIN 66084.
- - USA: CAL TB 117
› Wooden components
- Pressed beech plywood.
› Varnish
- Material: Two-component polyurethane varnish (Water or solvent based).
› Cutting foam (Polyurethane foam)
- Seat density: 40 Kg/m3 Backrest density: 35-39 Kg/m3
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
> Fire resistance
- BS 5852. Clause 12.
- Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- · UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
