MINISPACE FIX ARMCHAIR 5067 | COMMERCIAL ARMCHAIRS

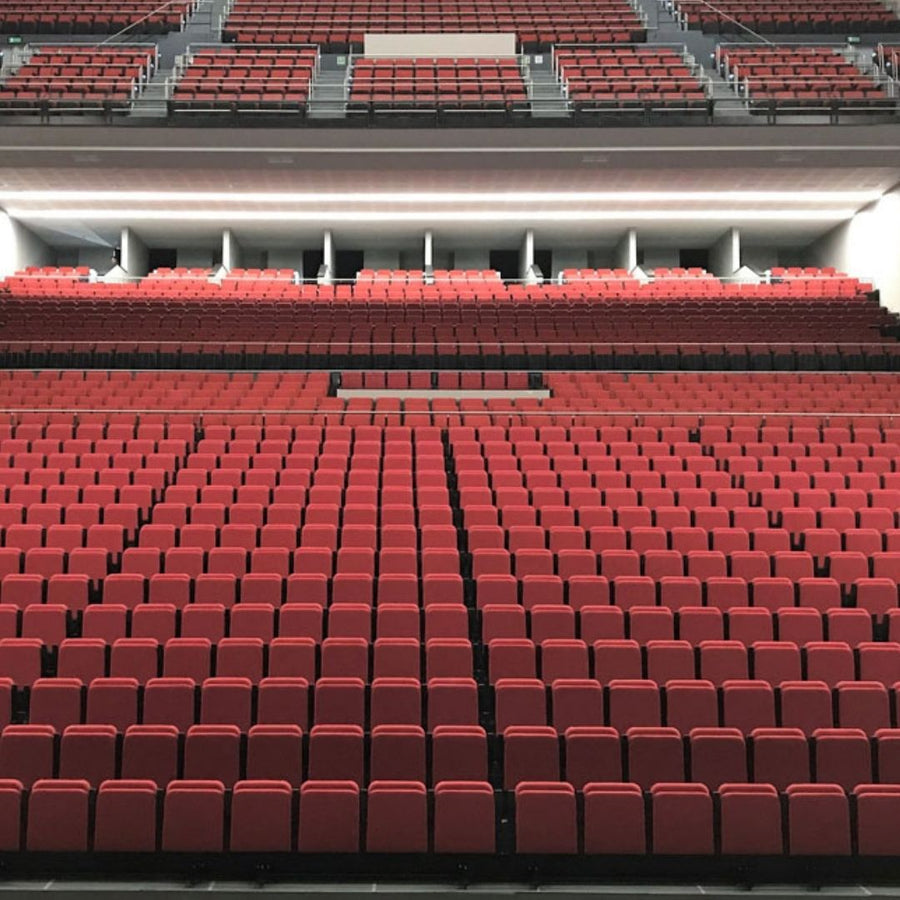

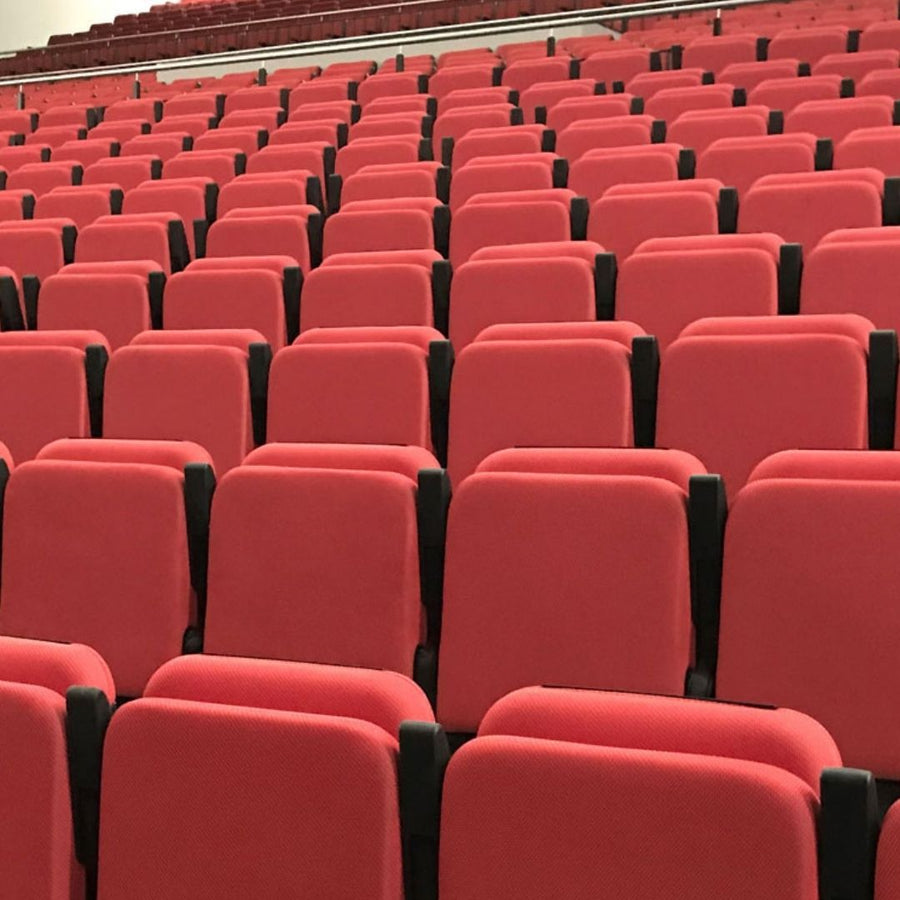

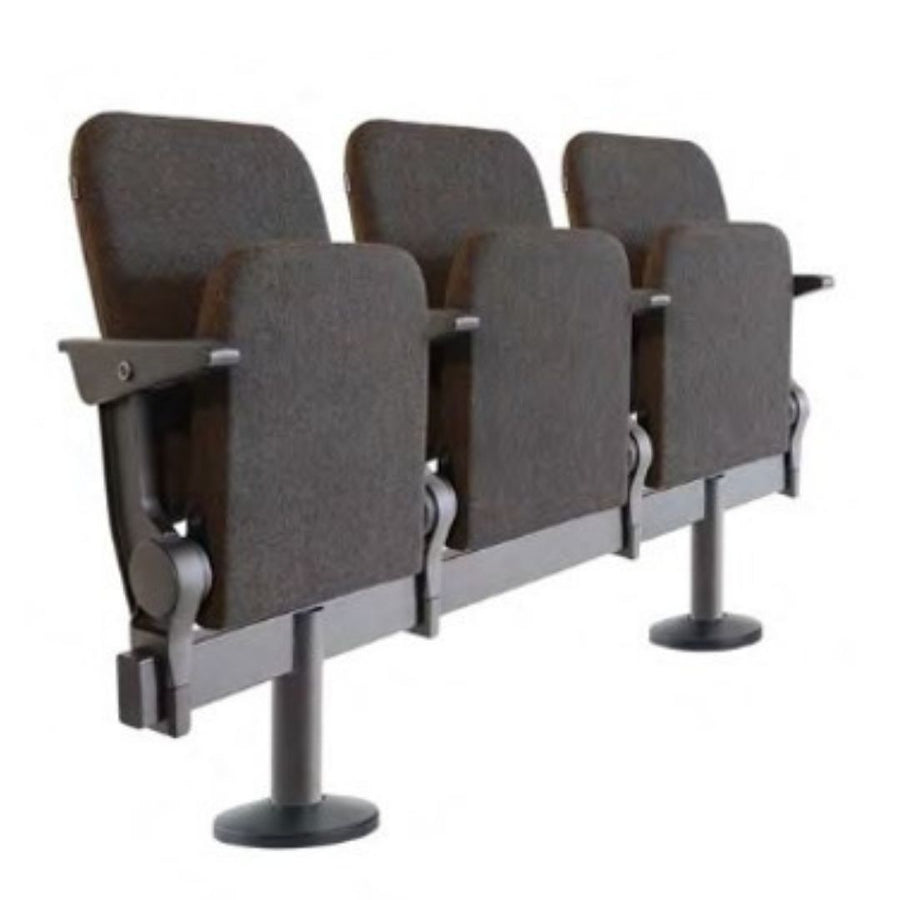

The Minispace 5067 Fix is a bar-mounted automatic folding chair. This chair, with a fixed backrest, is one of our most compact seats and an optimal solution for optimizing space. This seat is a solution for conference rooms, auditoriums, corporate and VIP areas of stadiums and arenas.

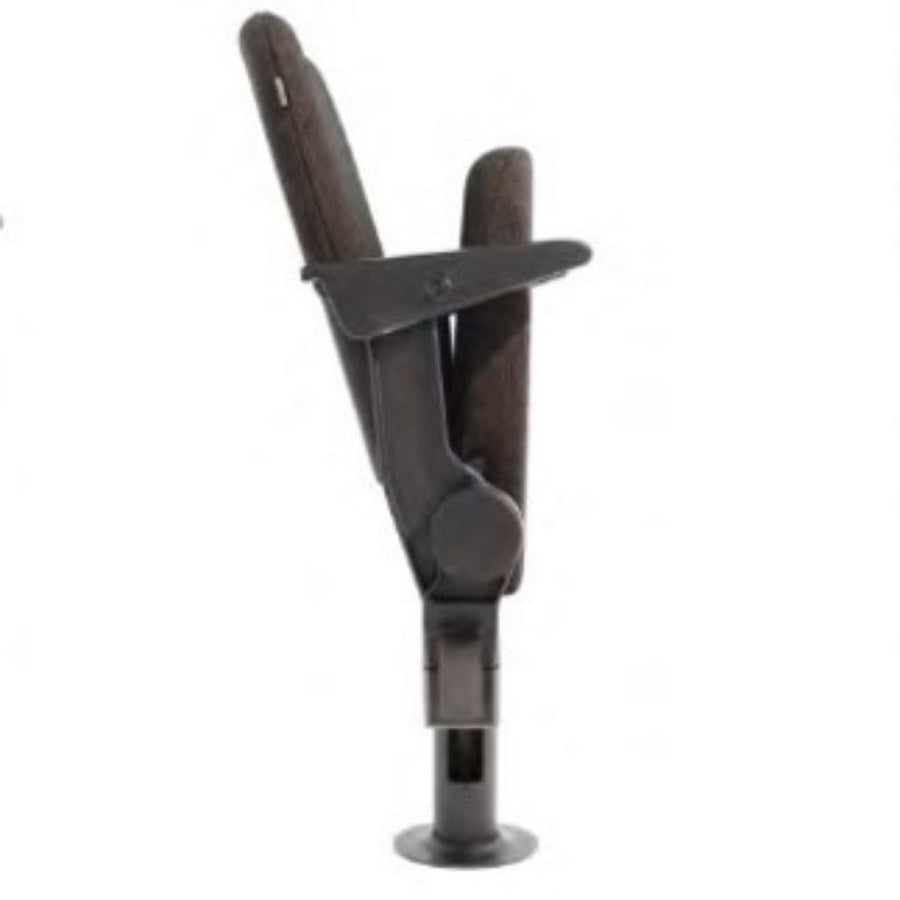

The seat, backrest and armrests as a whole are supported by injected aluminum sides and are fixed to a steel tube structure. These aluminum sides incorporate the seat folding system that consists of two ball joints with return springs, this folding mechanism has a system that prevents noise or knocks when the seat is unoccupied.
The seat consists of a single block of cold-molded polyurethane foam covering a metal frame, consisting of a curved tube frame, a band of flat springs, and pivot joints for rotation. The block is covered with an easily interchangeable upholstery cover using a zipper system.

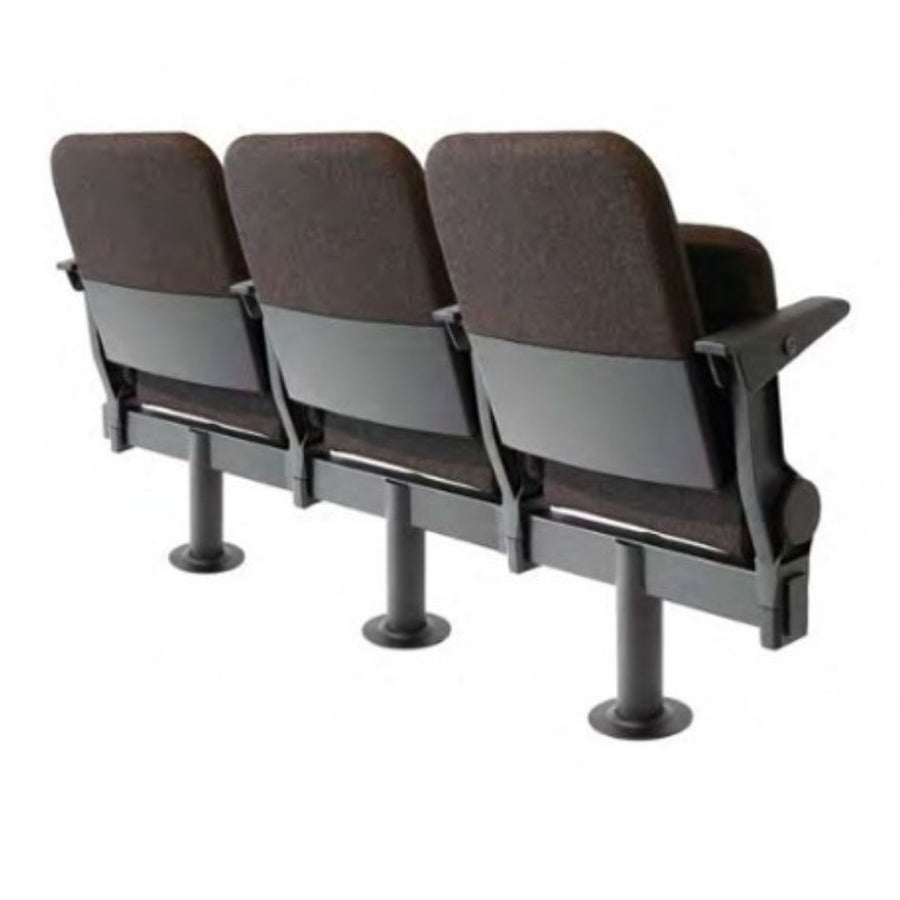

The backrest is made with the same characteristics as the seat, incorporating a metal protection plate on the back, if required by the project. The backrest is fixed, which ensures great optimization of space.
The armrests are made of a metal structure covered in semi-rigid, cold-molded integral polyurethane foam.
Technical specifications
› Types of environments
- Multipurpose spaces.
- Congress Center.
- Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena
- Worship Centers.
- Arts Centers.
- Theaters.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- - Spain: UNE-EN 1021 Parts 1 and 2.
- - France: NF D 60-013.
- - Italy: UNI 9175 Class 1.IM.
- - Germany: DIN 66084.
- - USA: CAL TB 117
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Aluminum
- Injection aluminum alloy.
- Tensile strength (Rm)=240 Mpa.
- Elongation at break <1%.
> Fire resistance
- BS 5852. Clause 12.
- Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- · UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
