BUTRHOMBUSCOR031-001
IMPORTANT
IF YOU WANT A DETAILED BUDGET YOU CAN REQUEST IT
ATTACHING PROJECT PLANS TO INFO@ARQMAT.COM

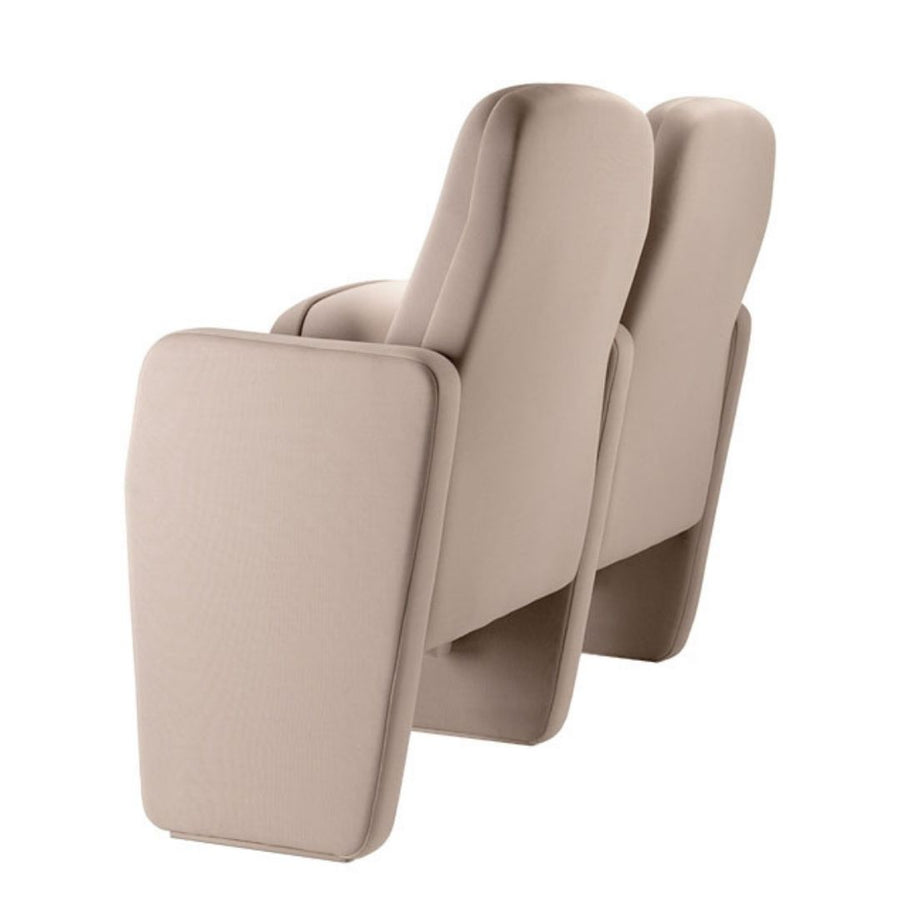

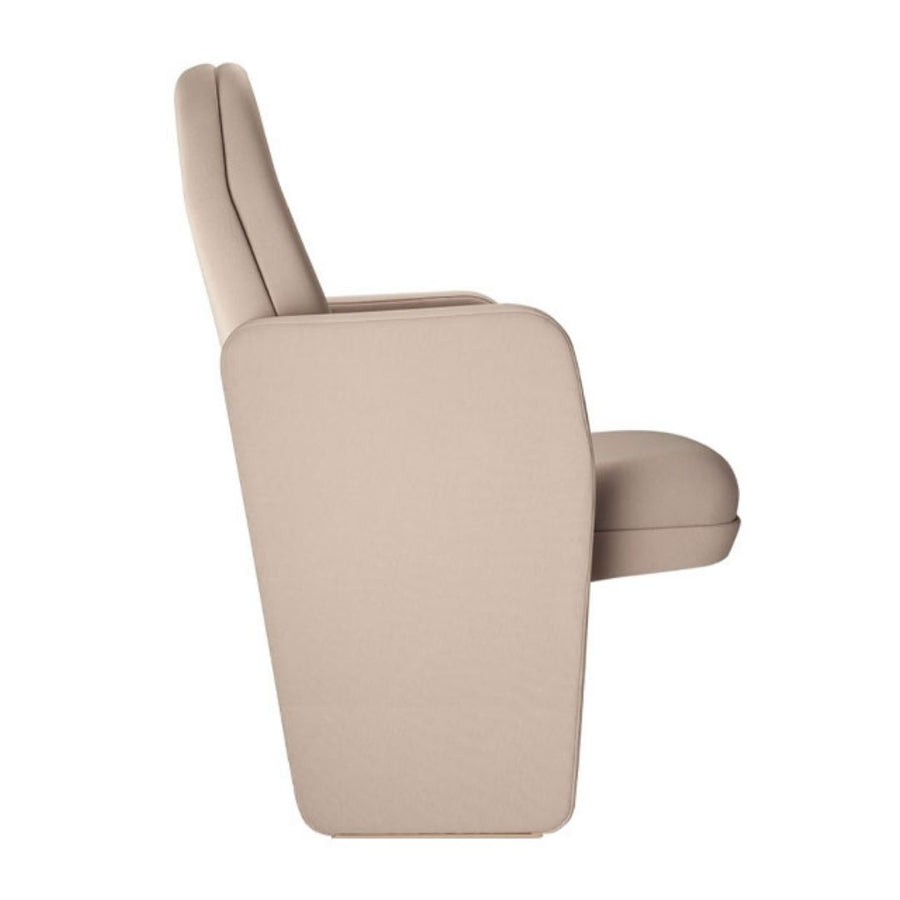

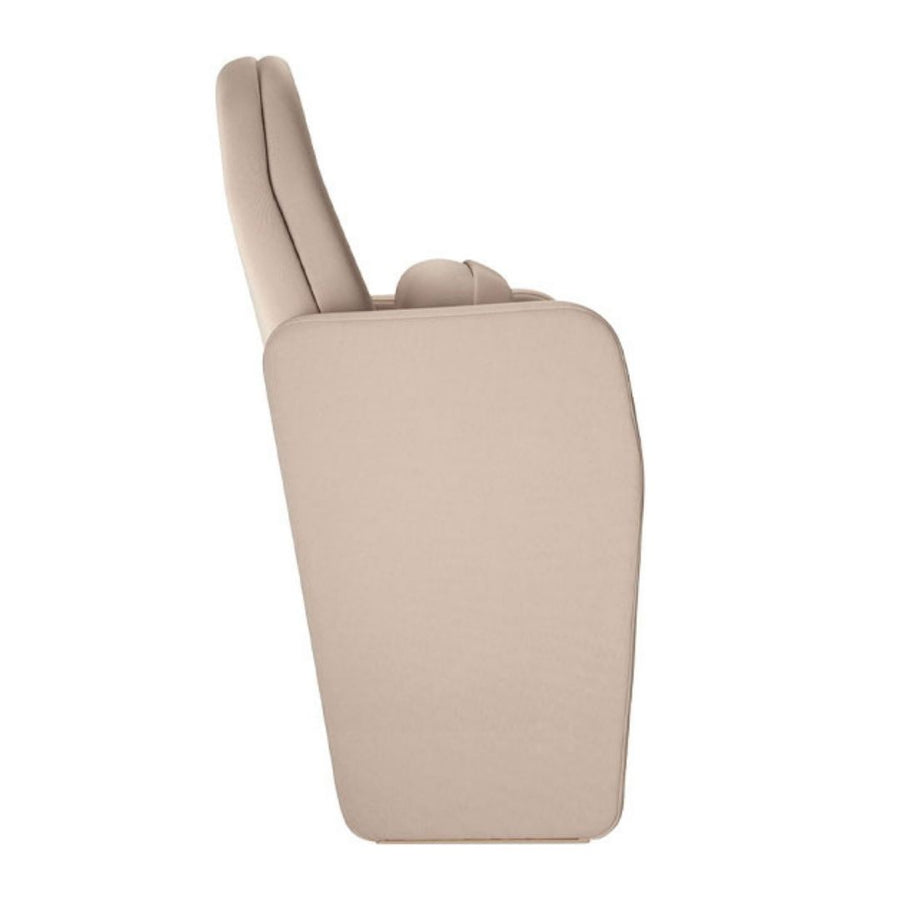

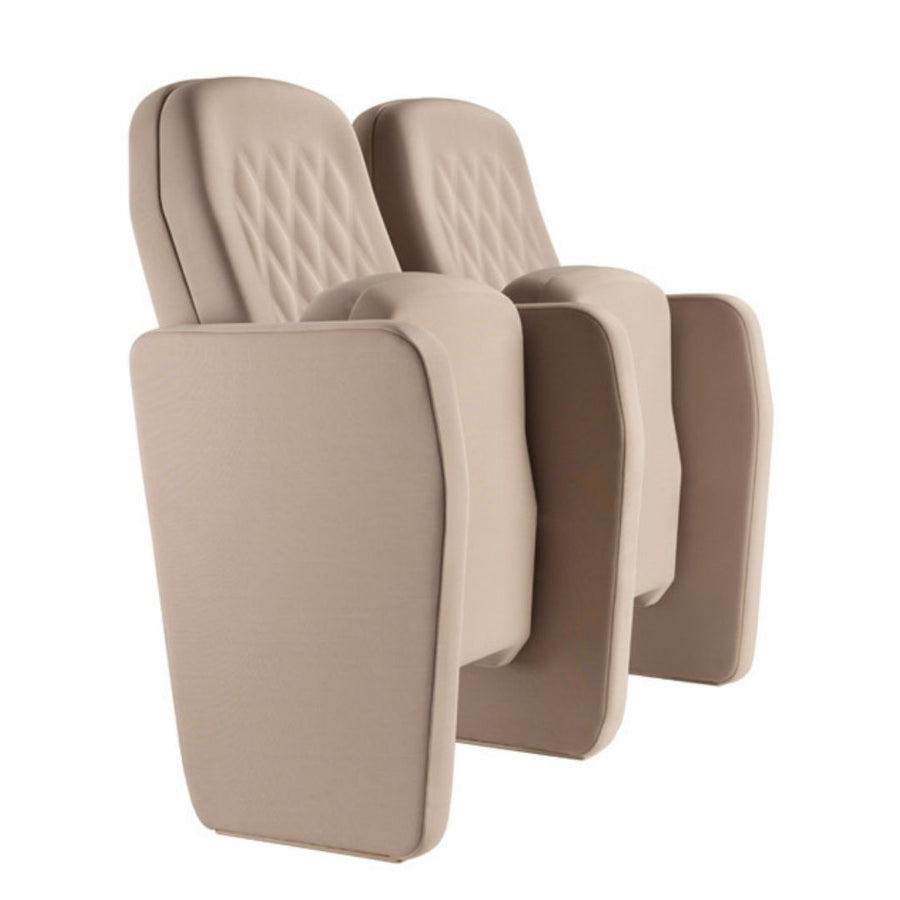

RHOMBUS CORPORATE ARMCHAIR 13031-55 | COMMERCIAL ARMCHAIRS
The Rhombus 13031 is a unique, simple and elegant chair concept with special details in ergonomics and durability. This seat has been specially designed for venues with constant use such as auditoriums, parliaments, conference centres, corporate and VIP areas of stadiums and arenas.
The seat and backrest are made up of two blocks of molded polyurethane foam that incorporate an internal metal structure, with flat springs and the upholstery fully integrated into the foam through the Integral Form System.

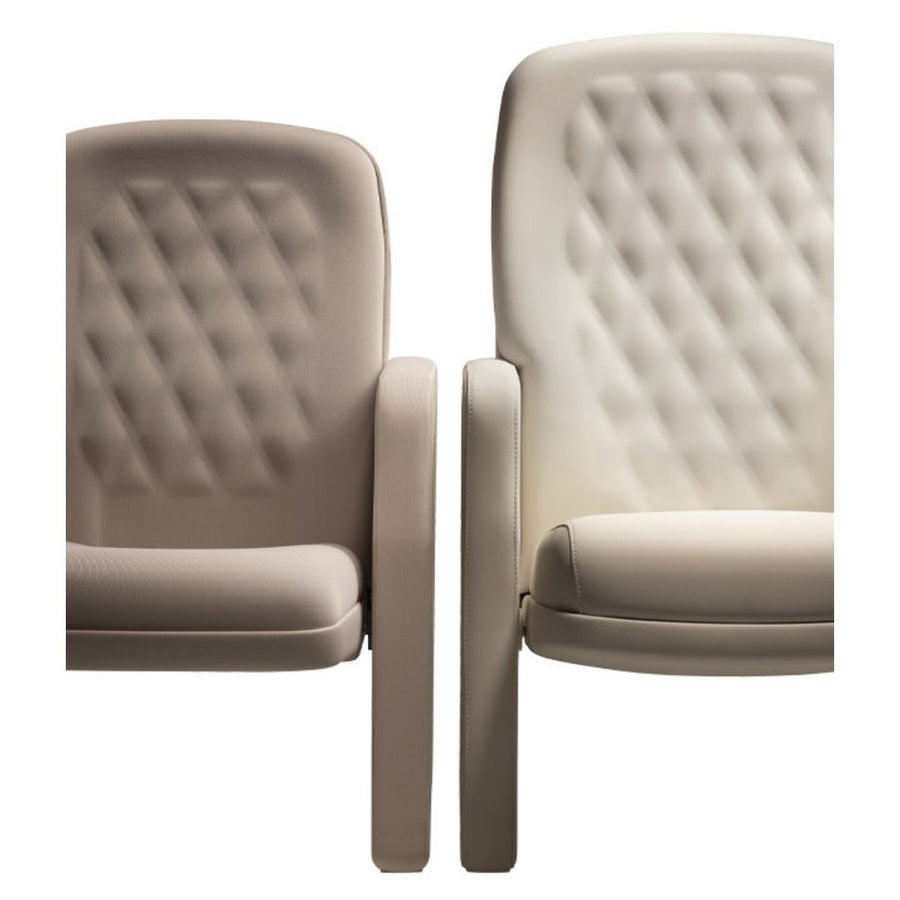

The backrest padding is anatomically contoured, with lumbar support and incorporates a diamond-shaped design for added comfort. The seat and backrest are upholstered and protected with a fully upholstered shell.
The seat tilts automatically by means of an extremely quiet double spring system, inserted inside the seat shell. Does not require lubrication of any kind.
The seat is mounted on two blow-molded side panels with a ball joint housing system, which includes a locking mechanism into which the seat axle fits, allowing for easy seat replacement.
The side panels are fully upholstered and attached to a steel base, through which the seat is fixed to the floor with hidden metal expansion bolts.
The seat adapts at the base to the specific slope of the ground. The rows are made up of interconnected seats, which ensures a rigid and stable row configuration, reinforcing anchorage to the ground.
Technical specifications
› Types of environments
- Congress Center.
- Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
> Polypropylene
- Material: Polypropylene Copolymer IF-727.
- Tensile strength according to ISO 527-2: 26 Mpa.
- Modulus of elasticity according to ISO 527-2: 1250 Mpa.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
