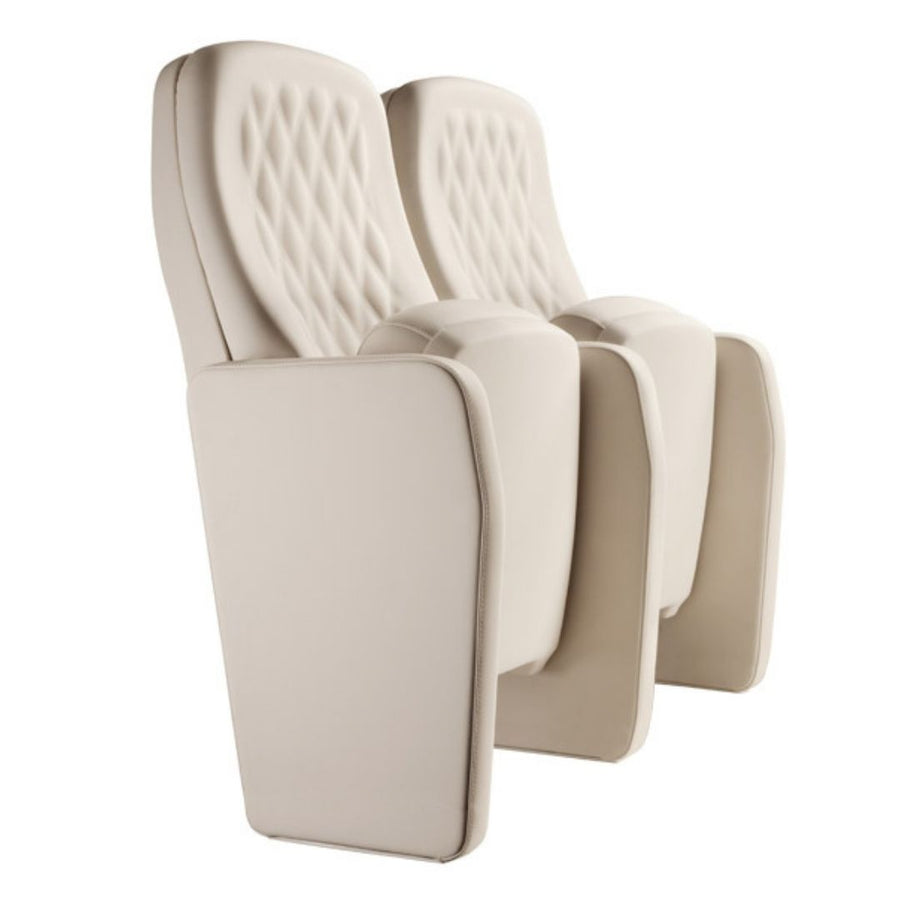

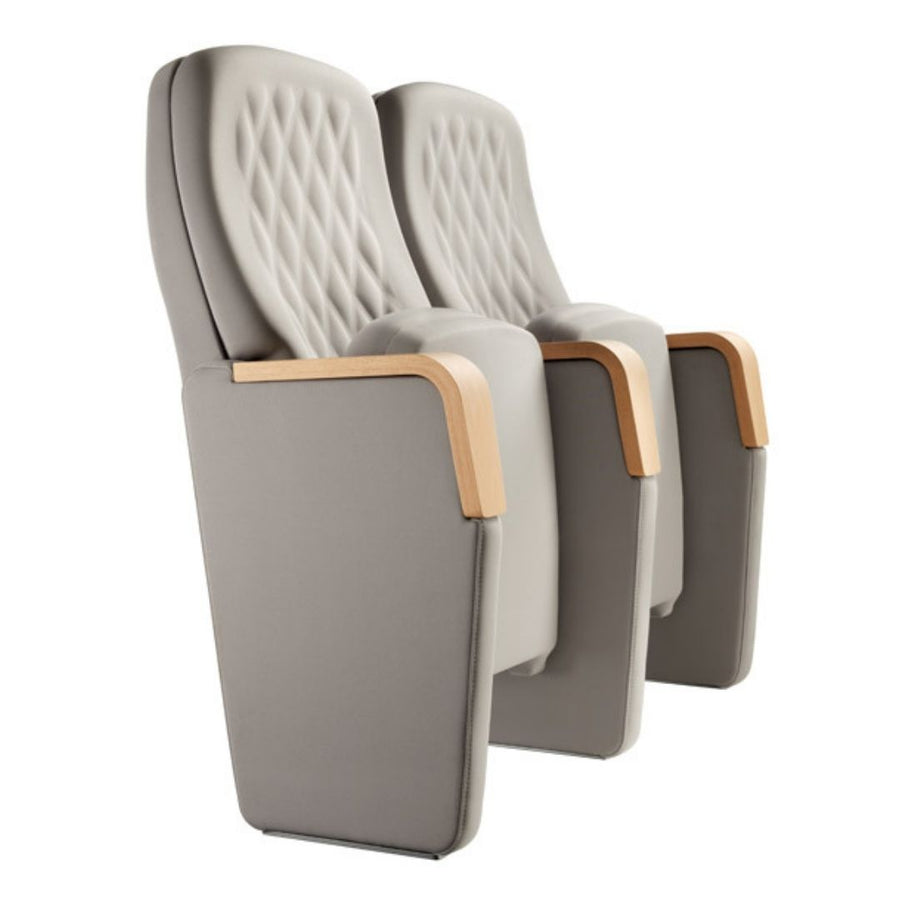

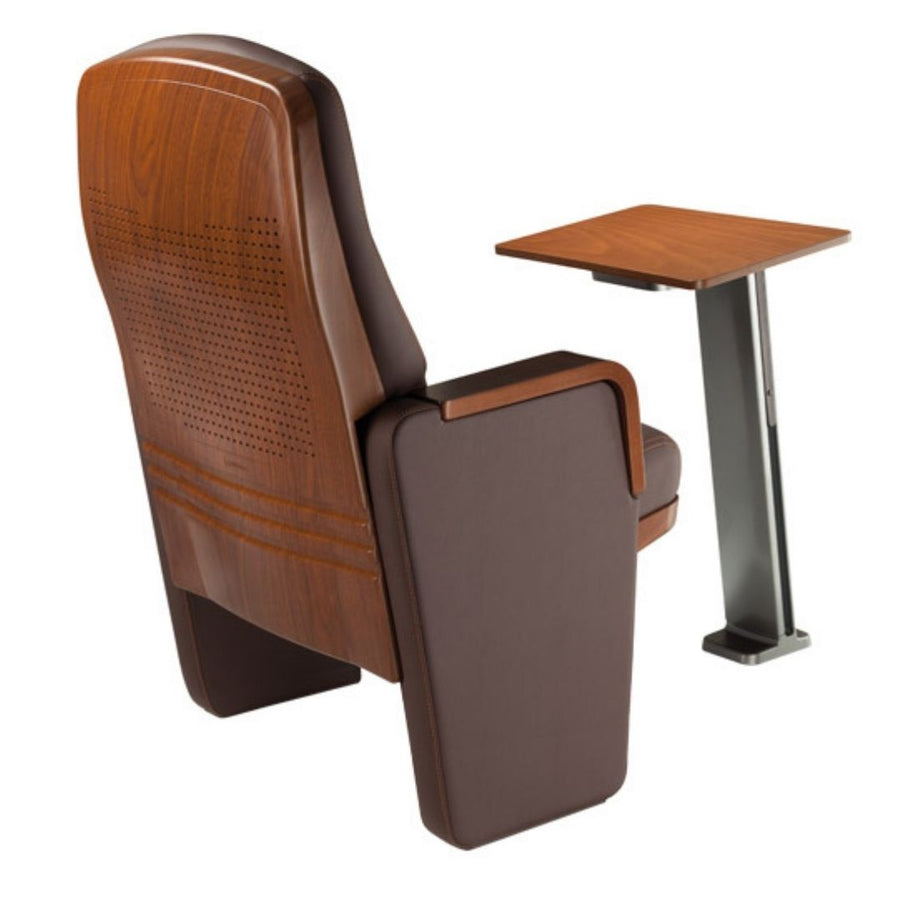

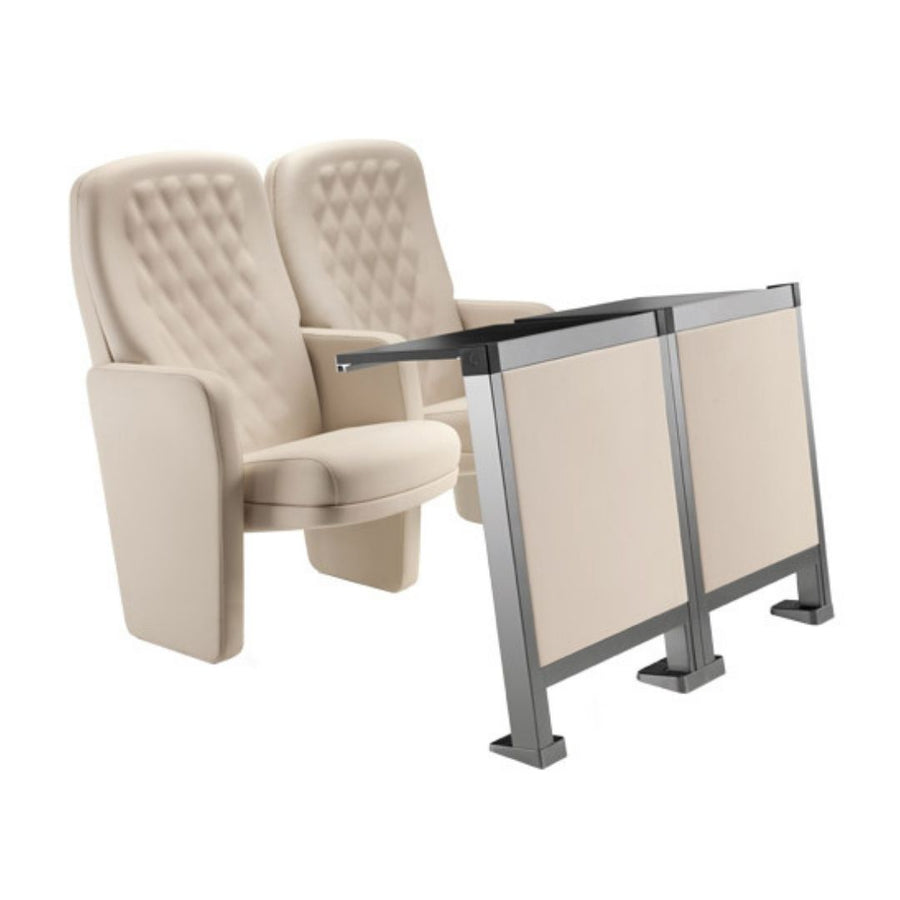

RHOMBUS EXCELLENCE ARMCHAIR 13037-58 | COMMERCIAL ARMCHAIRS

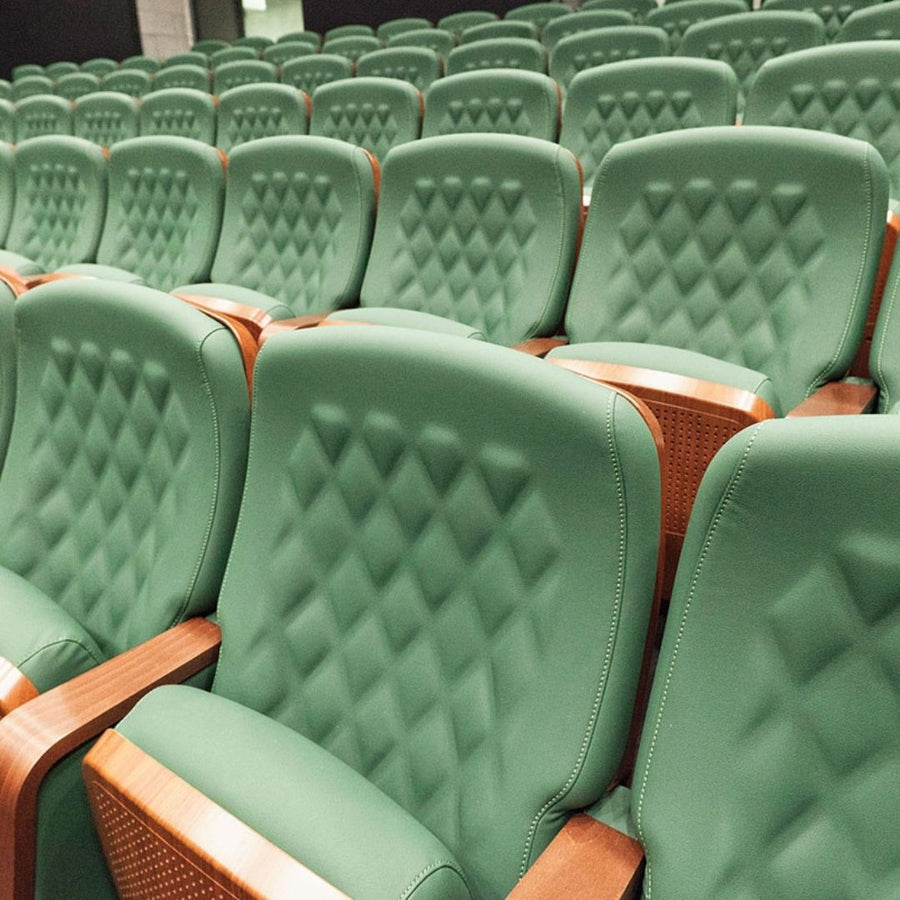

The Rhombus 13037 is a new concept of integral armchair, with an elegant and sober design. With special care in ergonomics and durability, the Rhombus 13037 has been specially designed for spaces with intense use such as auditoriums, parliaments, congress centers, corporate areas and VIP areas of stadiums and arenas.
The seat and backrest are made up of two blocks of molded polyurethane foam that incorporate an internal metal structure, with flat springs and the upholstery fully integrated into the foam using the patented Integral Form system.

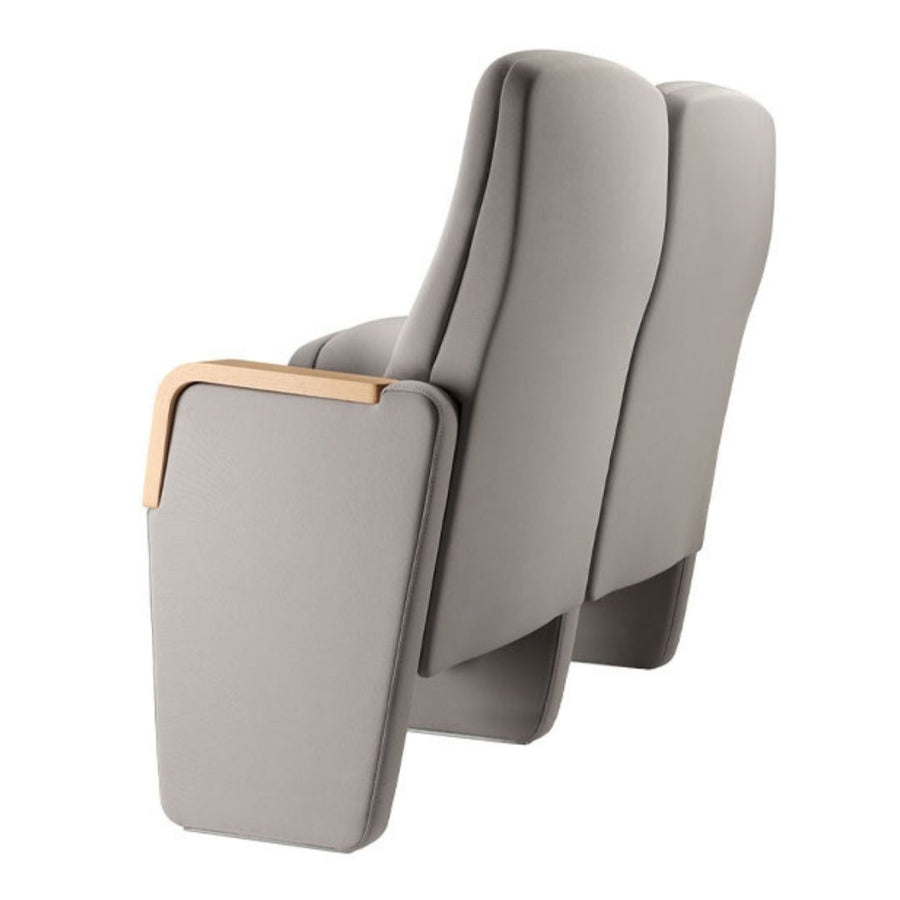

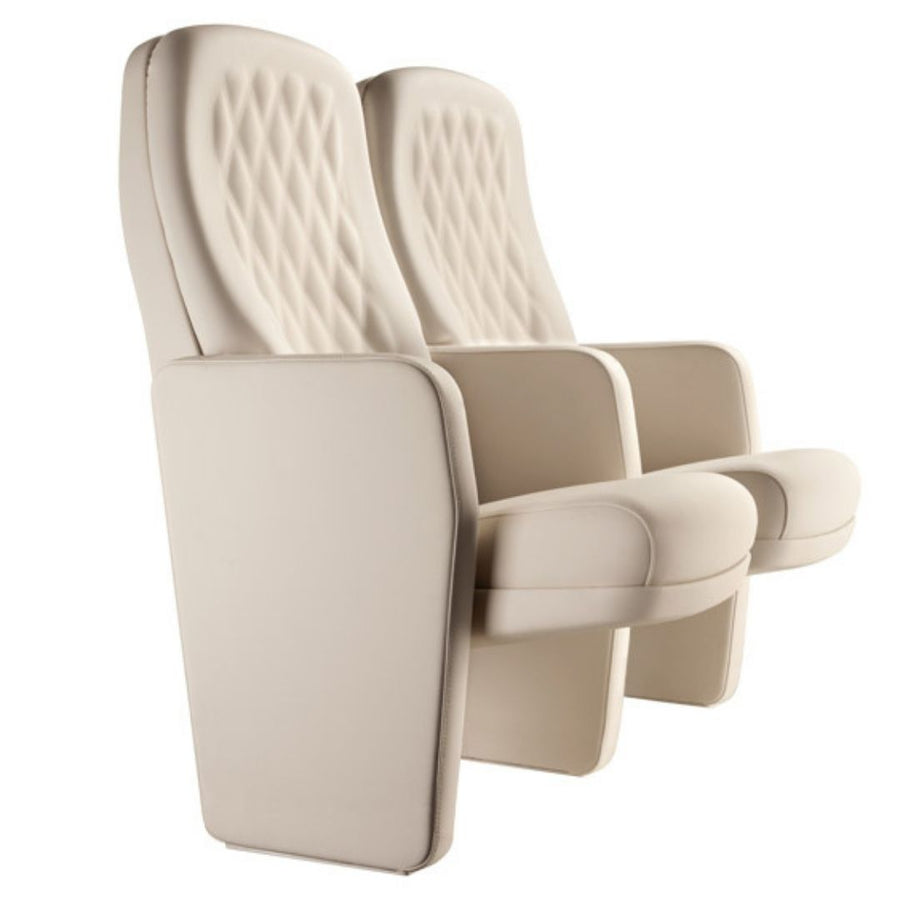

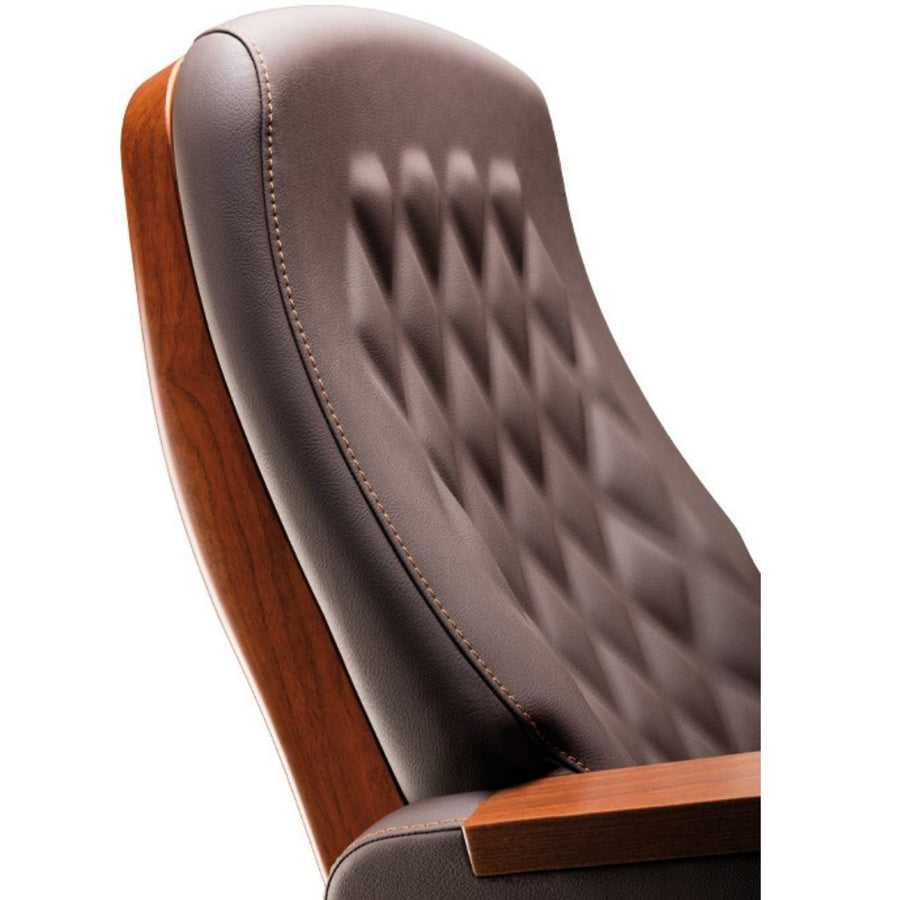

The backrest padding is anatomically contoured, with lumbar support and incorporates a diamond-shaped design for added comfort. This backrest has generous dimensions to offer optimal comfort to the user.
The seat tilts automatically by means of an extremely quiet double spring system, inserted inside the seat shell. Does not require lubrication of any kind.
The seat is mounted on two blow-molded side panels, with a housing system for the ball joint, which includes a locking mechanism into which the seat axle fits, allowing for easy replacement.

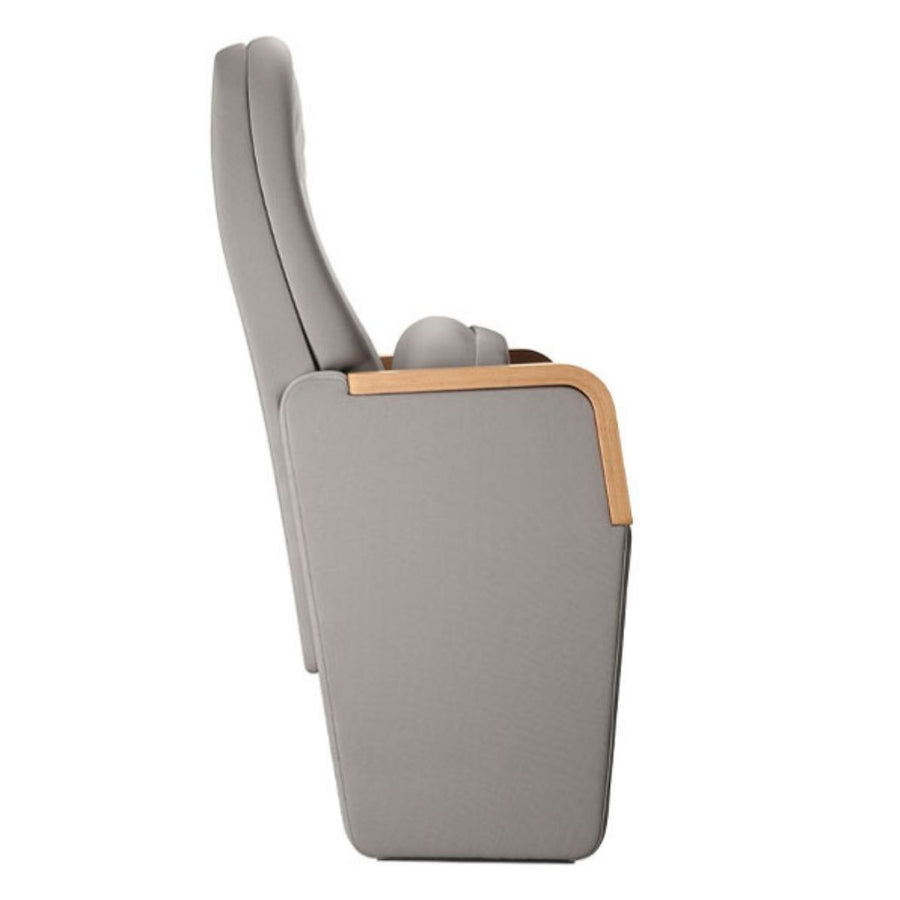

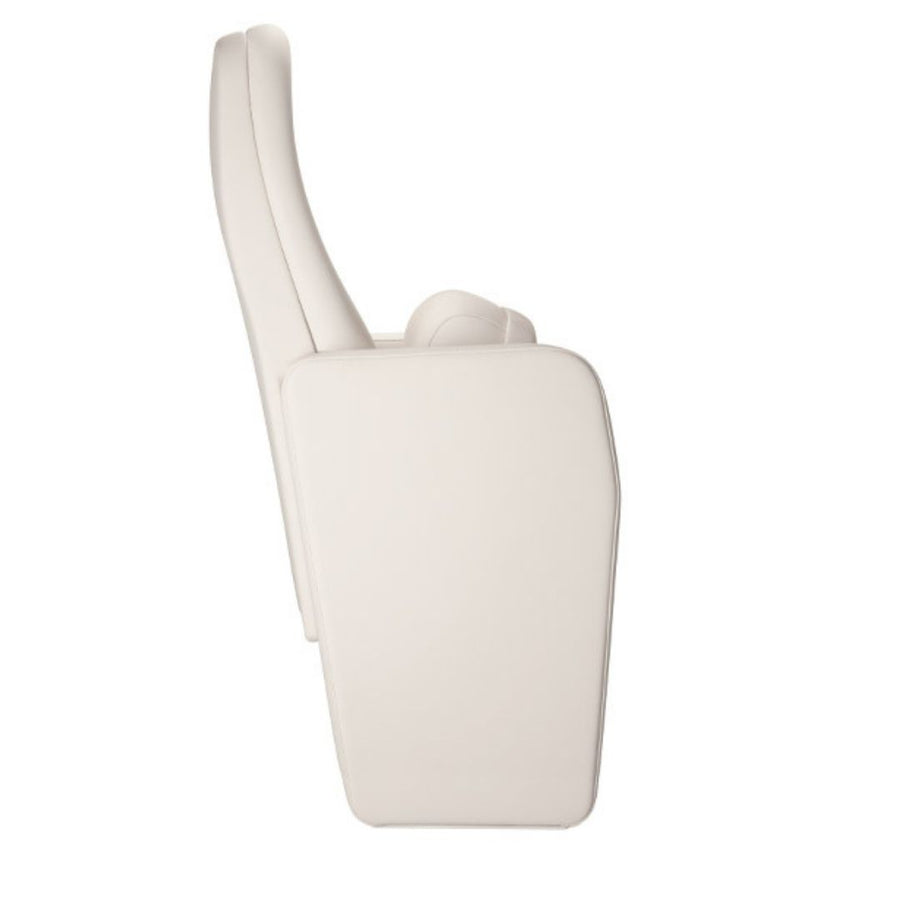

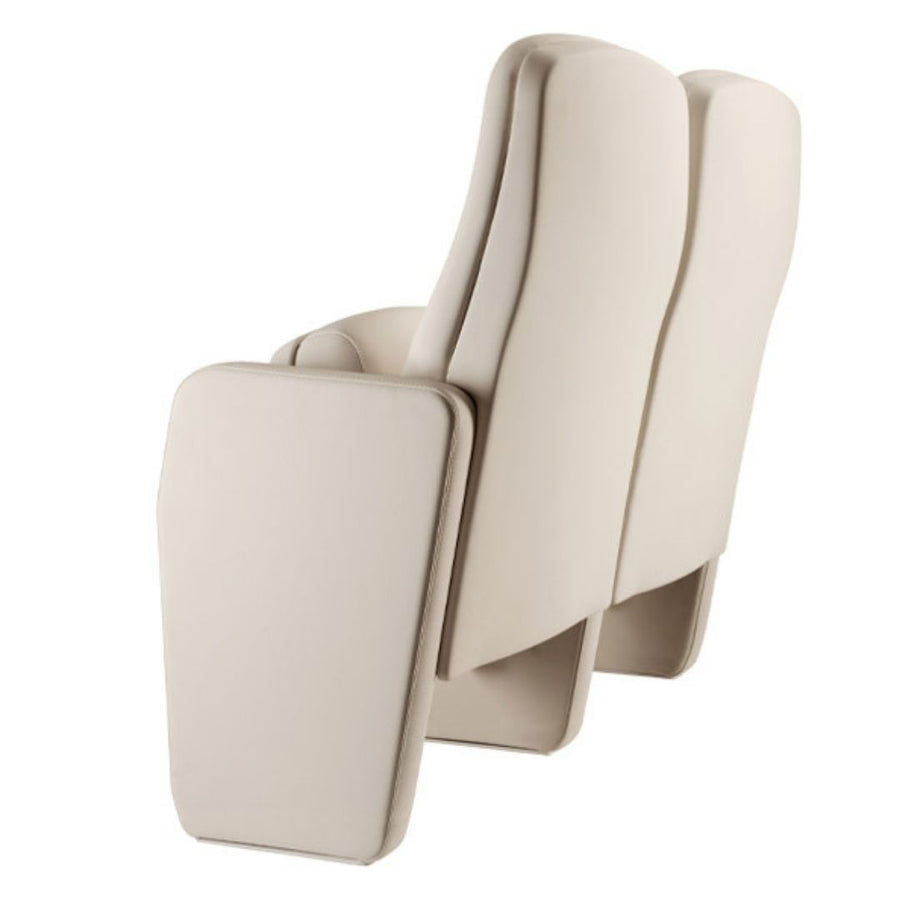

The side panels are fully upholstered and attached to a steel base, through which the seat is fixed to the floor with hidden metal expansion bolts.

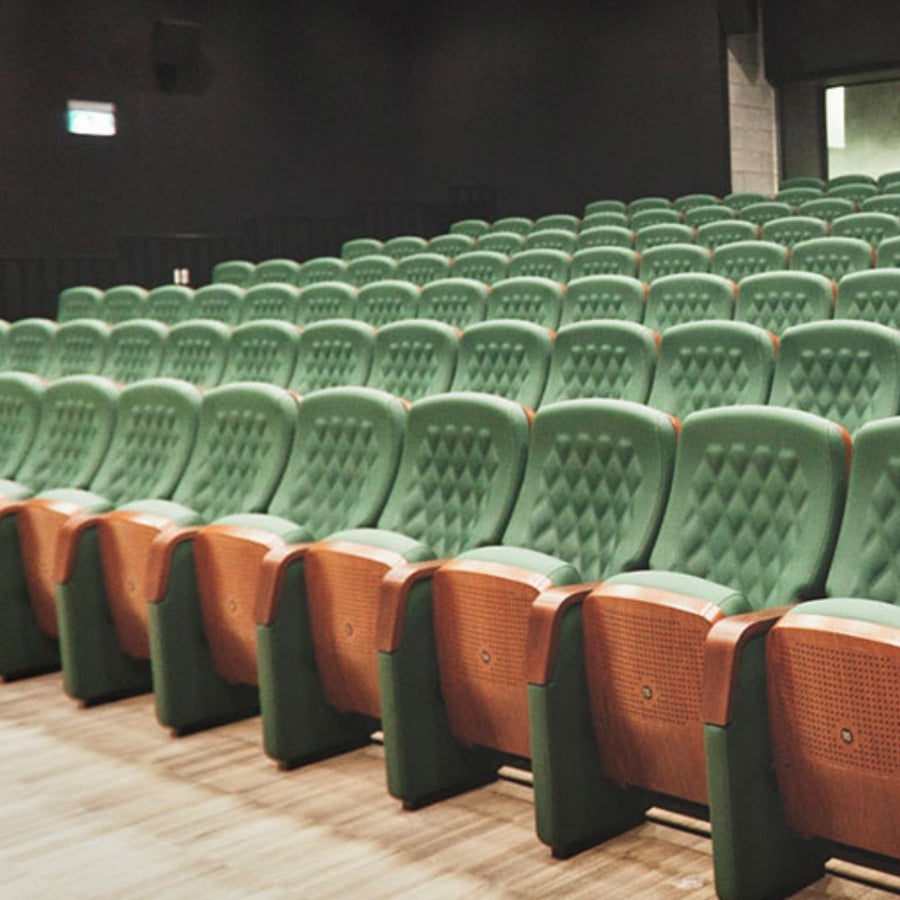

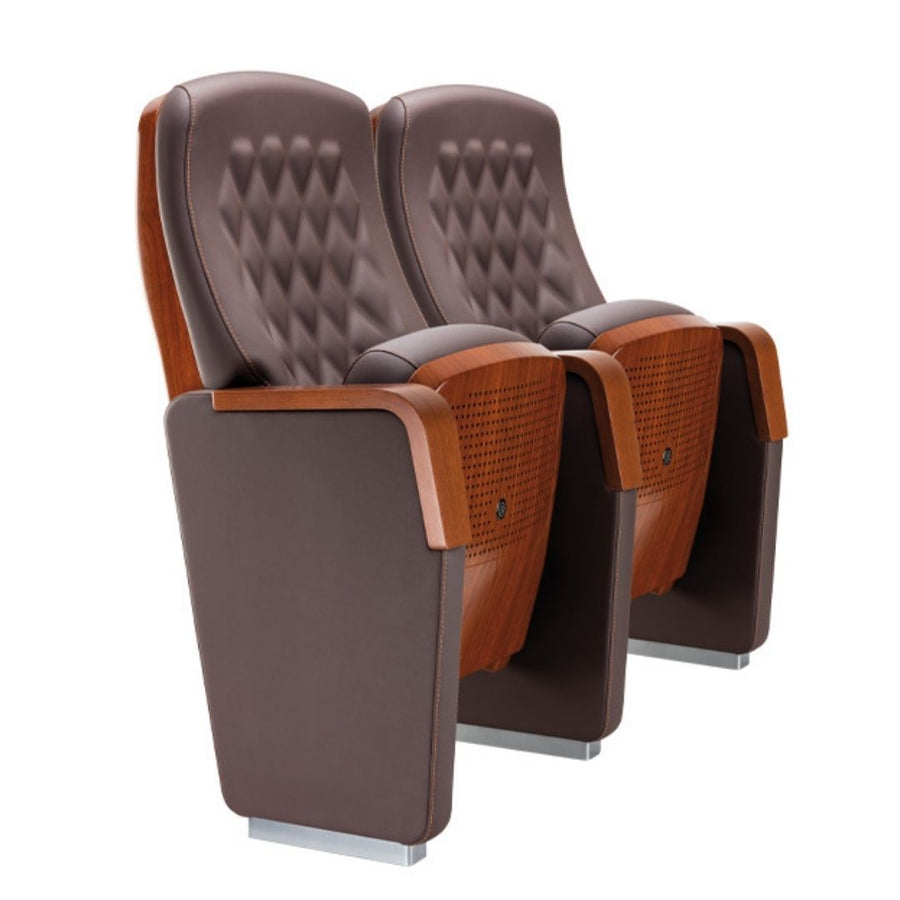

The seat adapts, through its base, to the specific slope of the ground. The rows are made up of interconnected seats, which ensures a rigid and stable row configuration, reinforcing anchorage to the ground.
Technical specifications
› Types of environments
- Congress Center.
- Auditoriums.
- Corporate Rooms.
- Universities.
- Stadiums and Arena.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Wooden component
- Plywood with pressed beech.
› Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
> Polypropylene
- Material: Polypropylene Copolymer IF-727.
- Tensile strength according to ISO 527-2: 26 Mpa.
- Modulus of elasticity according to ISO 527-2: 1250 Mpa.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
