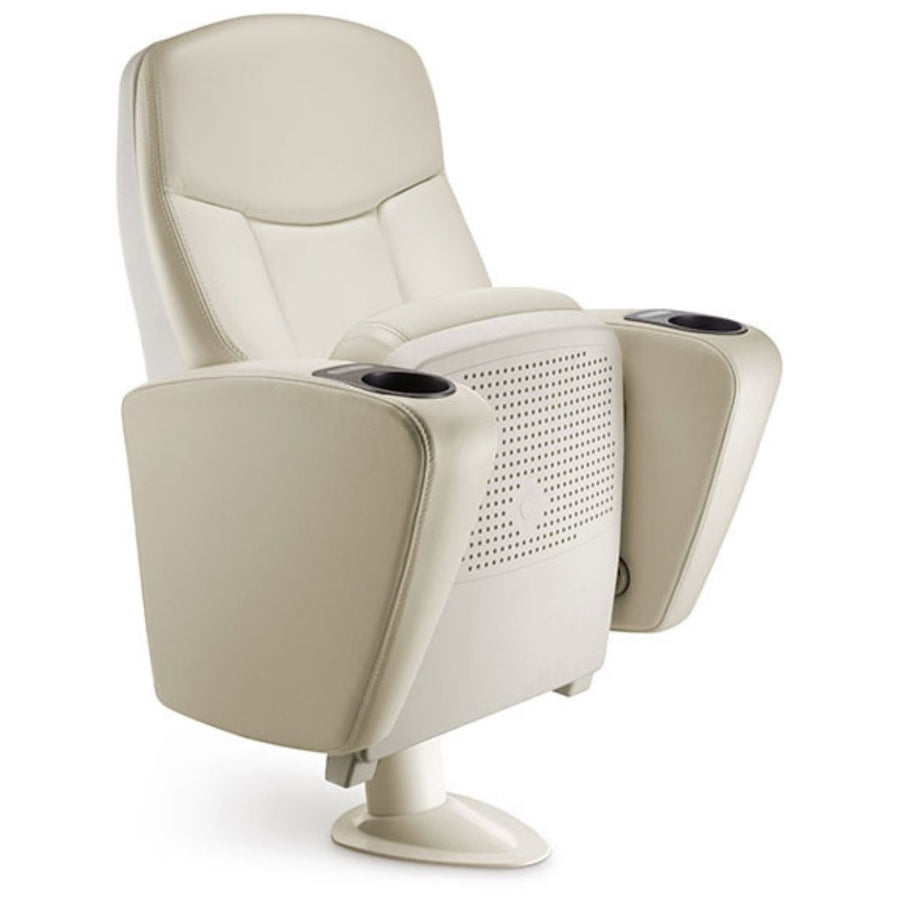

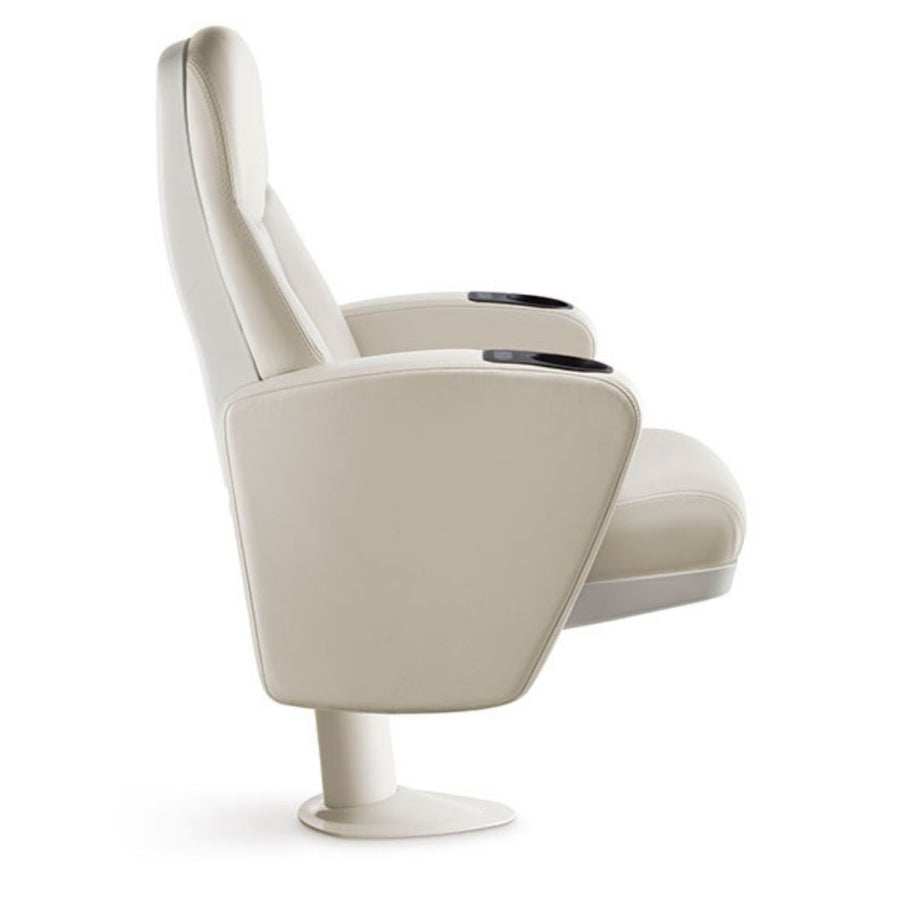

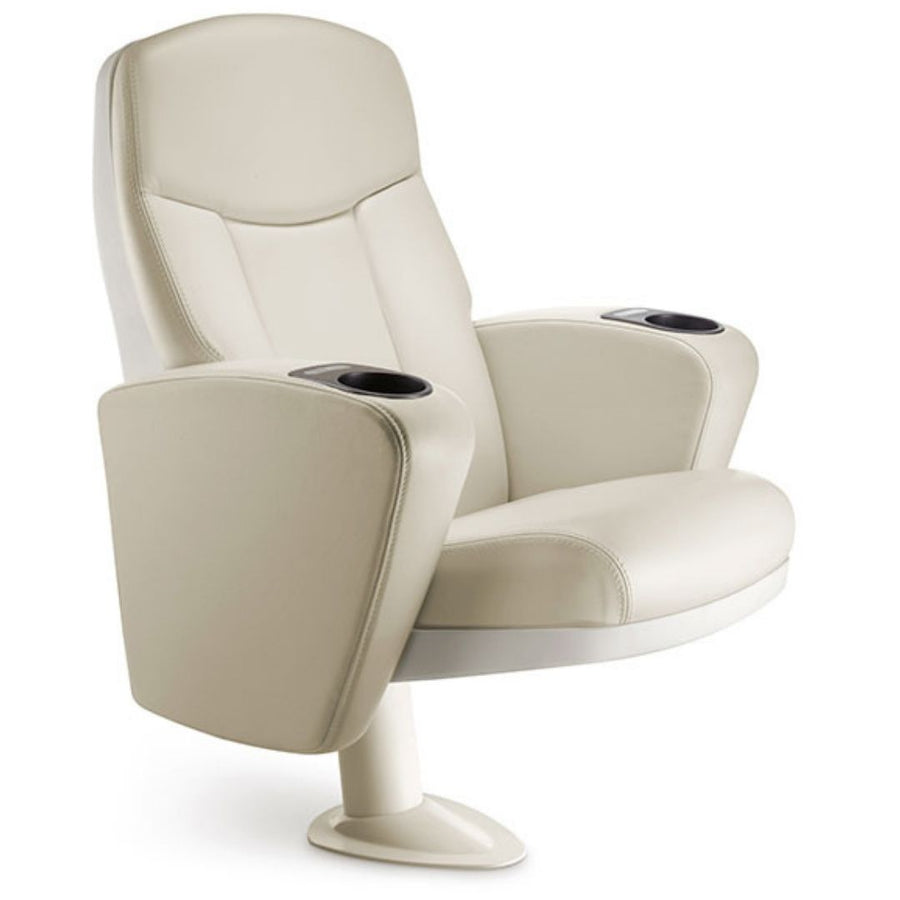

SMART ARMCHAIR 13030 | COMMERCIAL ARMCHAIRS
The Smart 13030 is a large modular seat made up of completely interchangeable elements. This exclusive seat has been designed for cinemas, stadiums and arenas or auditoriums that require a product with great comfort and generous dimensions.
The seat and backrest are composed of two blocks of molded polyurethane foam, with an integrated integral structure and finished with handcrafted upholstery. It can incorporate a headrest, also composed of molded polyurethane foam, with an upholstered finish.
The seat, backrest and headrest are equipped with polypropylene shells that are washable and protect the upholstery.

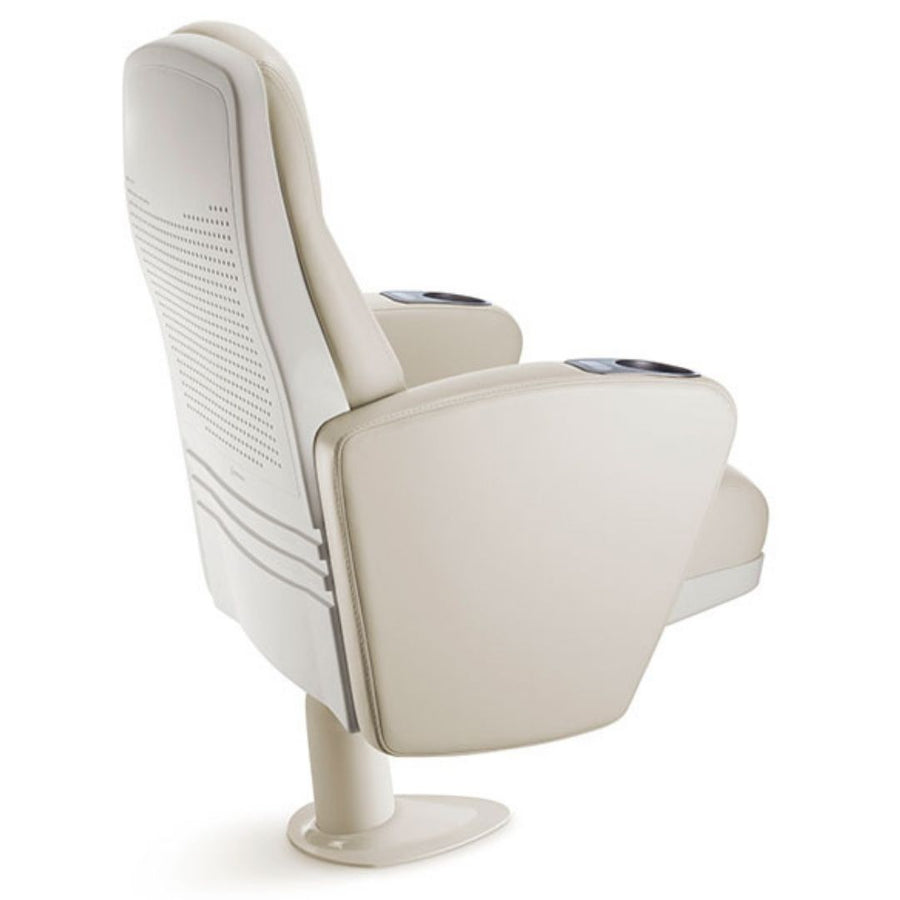

The polypropylene shells include the TX acoustic system, a set of perforations that provide excellent acoustic response.
The seat of the Smart 13030 tilts automatically using an extremely quiet double spring system inserted inside the seat shell.

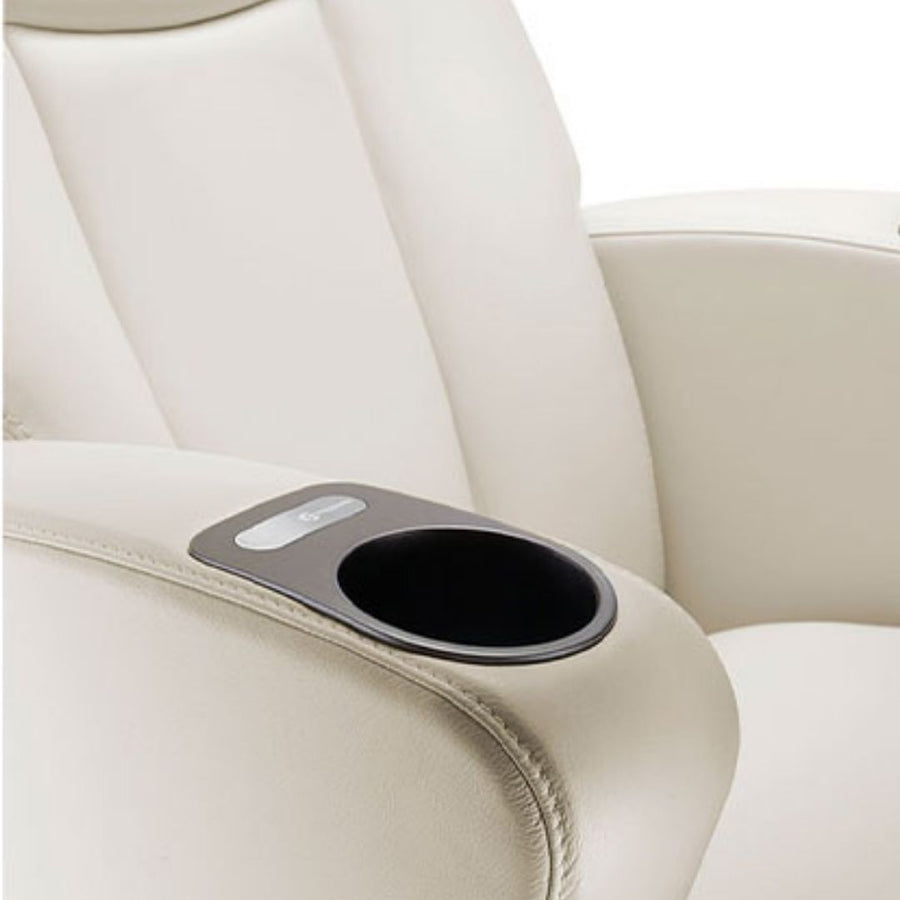

The armrests, made of blown plastic, are always upholstered and incorporate an integrated one-piece cup holder.
Technical specifications
› Types of environments
- Congress Center.
- Auditoriums.
- Corporate Rooms
- Universities.
- Stadium and arenas.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
> Fur
- Adhesion of the finish according to UNE-EN ISO 11644: >2.5 N/cm2.
- Color fastness according to UNE-EN ISO 11640: (Dry, 1,000 Cycles) >4.
> Polypropylene
- Material: Polypropylene Copolymer IF-727.
- Tensile strength according to ISO 527-2: 26 Mpa.
- Modulus of elasticity according to ISO 527-2: 1250 Mpa.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
