SMART ARMCHAIR 13033 | COMMERCIAL ARMCHAIRS

The Smart 13033 is a generously sized seat designed for parliaments, conference rooms, corporate rooms, conference centers or auditoriums that require a product that provides the user with great comfort.

The seat and backrest are composed of two molded polyurethane foam blocks that incorporate an internal metal structure and the upholstery that is completely integrated into the foam using the system. Integral Form , seamless.

The backrest cushion is anatomically shaped to provide optimal comfort to the user. Both the seat and back cushions have a polypropylene shell on the back that protects the upholstery.

The seat folds automatically using an extremely quiet double spring system located inside the seat shell, ensuring that the space is always tidy and ensuring a quiet environment when the user leaves the seat.

The armrests can be completely upholstered or in a wood finish. The chair can also go without armrests.

The seat is mounted on two sides in which the ball joint is incorporated with a locking mechanism in which the seat axles fit. This allows for easy replacement of the seat.

The sides of the seat are fully upholstered and are attached to a steel base, through which it is fixed to the floor with an anchor that is hidden. The top part of the armrest incorporates a layer of foam to make it soft to the touch.

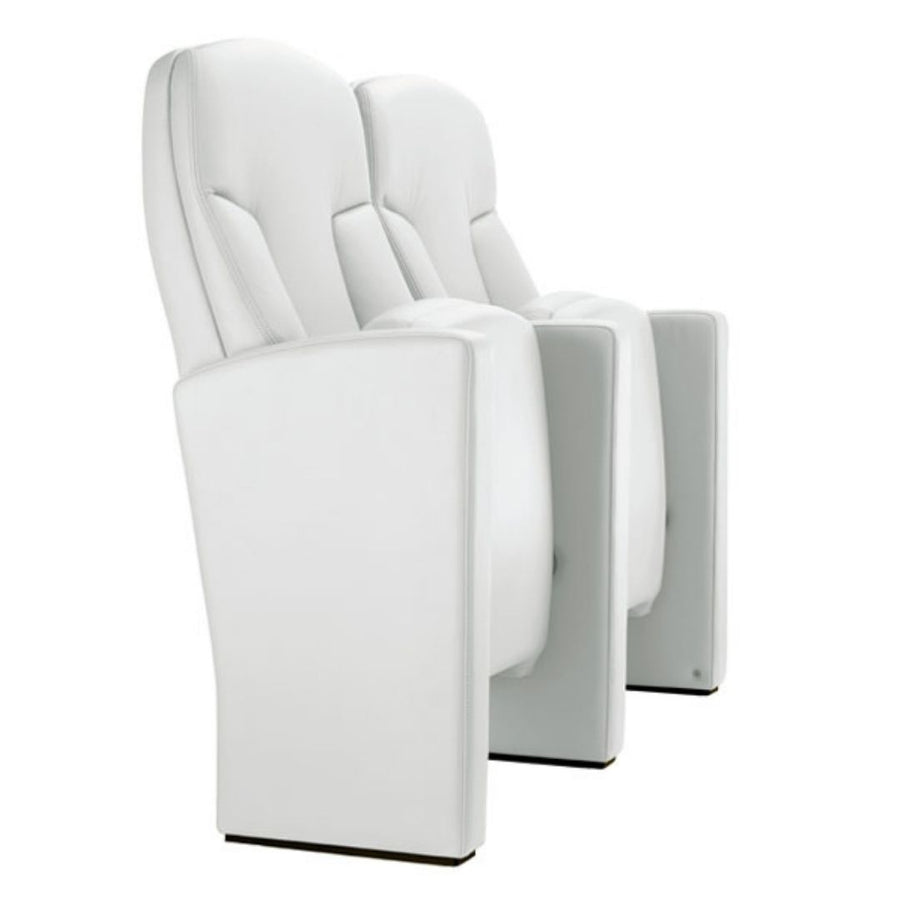

The seat adapts through its base to the specific slope of the floor of the room. The rows are made up of interconnected seats, ensuring a rigid and stable configuration of the rows, reinforcing anchorage to the ground.

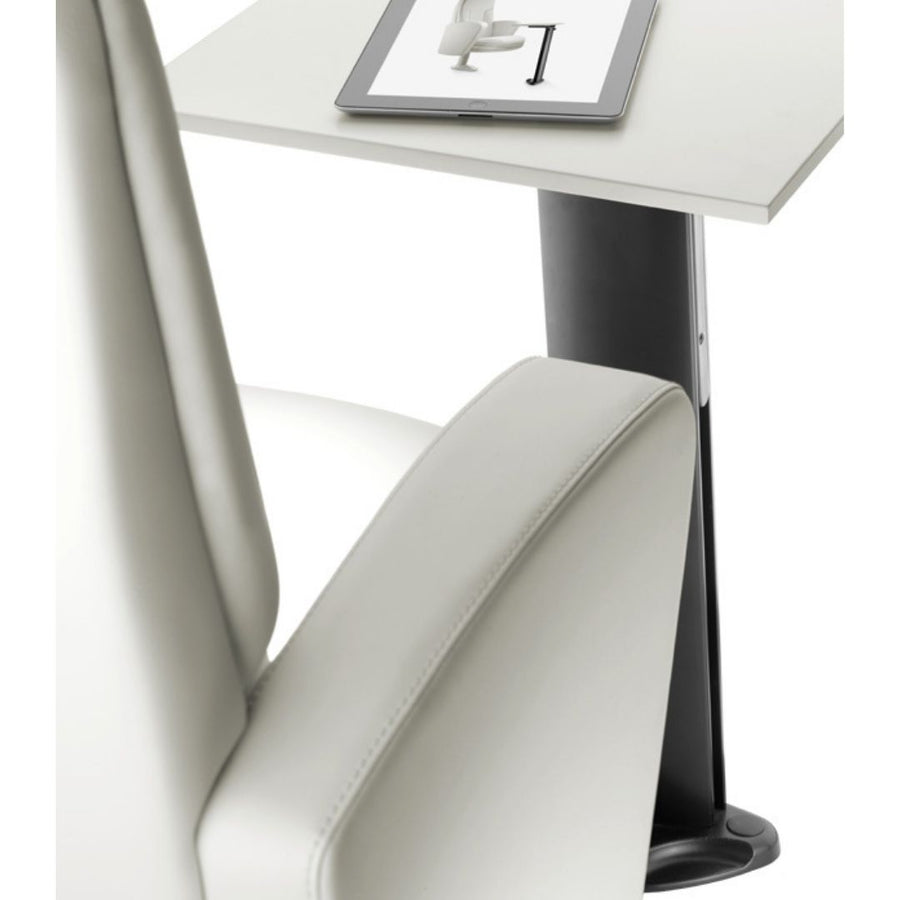

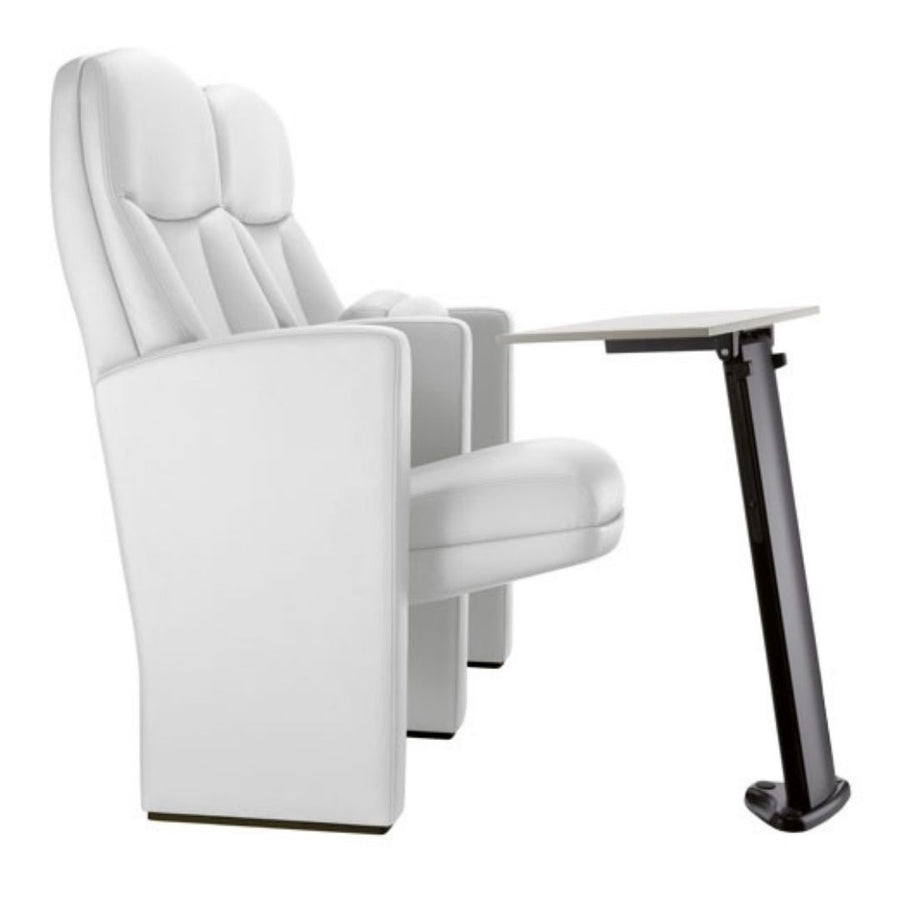

This seat, together with the lecterns APL, GPL and PLX, it becomes an optimal solution for long work sessions and conferences.

Technical specifications

› Types of environments

• Congress Center.
• Auditoriums.
• Corporate Rooms
• Universities.
• Stadium and arenas.

> Structure

• Made of steel tube and sheet, arc welded with continuous wire.

> Polyurethane foam

• Seat density: 60-65 Kg/m3.
• Backing density: 50-55 Kg/m3.

> Paint

• Electrostatic polyester powder paint.
• Paint thickness: 70-80 microns.
• Grid adhesion according to UNE-EN ISO 2409: 100%.

› Upholstery

• Fire reaction standards:

- Spain: UNE-EN 1021 Parts 1 and 2.

- France: NF D 60-013.

- Italy: UNI 9175 Class 1.IM.

- Germany: DIN 66084.

- USA: CAL TB 117.

> Fur

• Adhesion of the finish according to UNE-EN ISO 11644: >2.5 N/cm2.
• Color fastness according to UNE-EN ISO 11640: (Dry, 1,000 Cycles) >4.

> Polypropylene

• Material: Polypropylene Copolymer IF-727.
• Tensile strength according to ISO 527-2: 26 Mpa.
• Modulus of elasticity according to ISO 527-2: 1250 Mpa.

> Fire resistance

• BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
• USA: CAL TB 133 (with approved fabric).

› Resistance and durability classification

• UNE-EN 12727 Level 4 (Severe use).

Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
