WE WILL ADVISE YOU AND GIVE YOU A FREE QUOTE.
BUTTOP5036-001
IMPORTANT
IF YOU WANT A DETAILED BUDGET YOU CAN REQUEST IT
ATTACHING PROJECT PLANS TO INFO@ARQMAT.COM

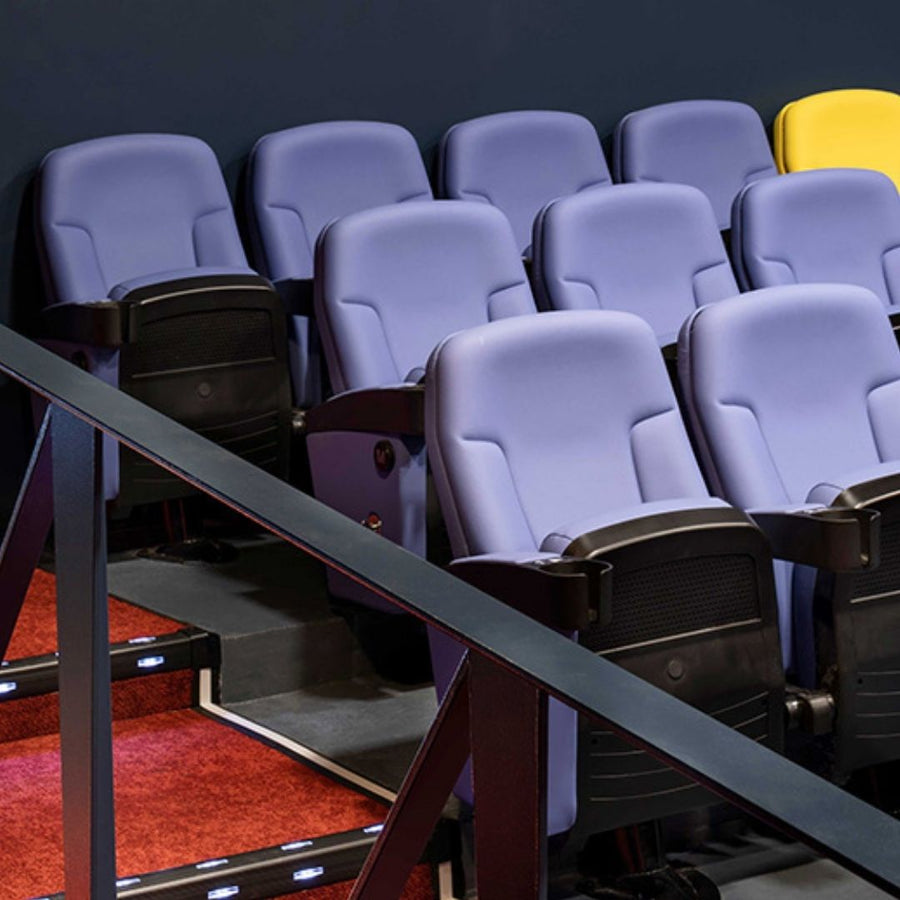

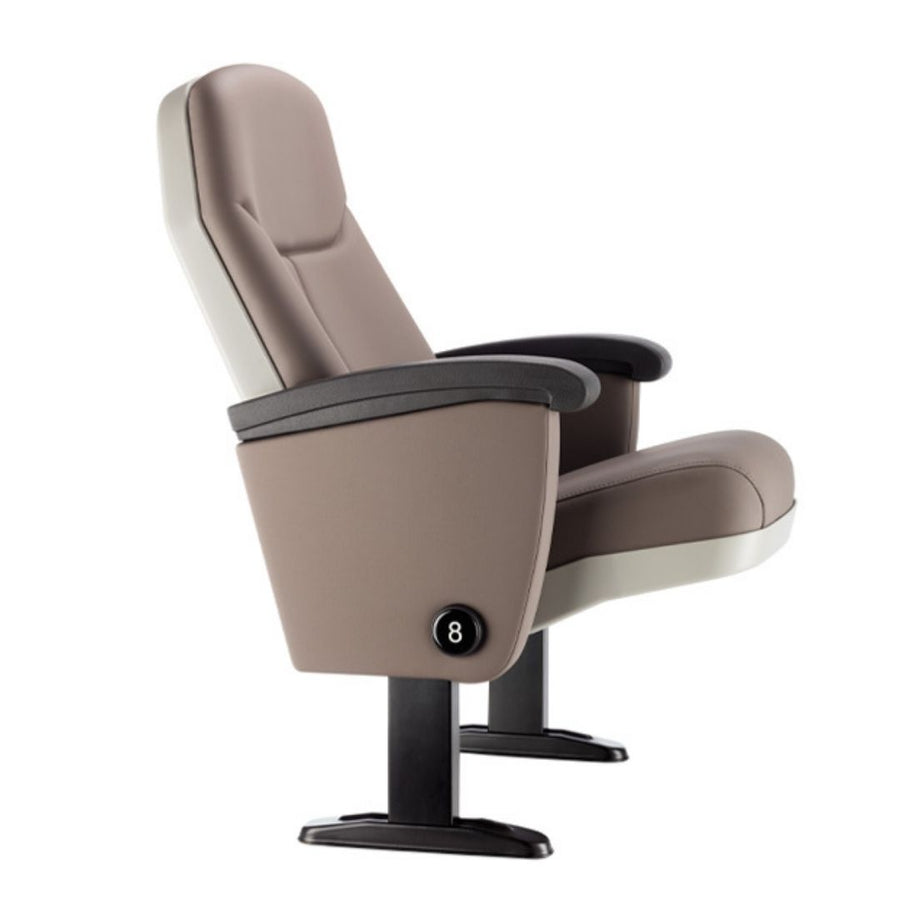

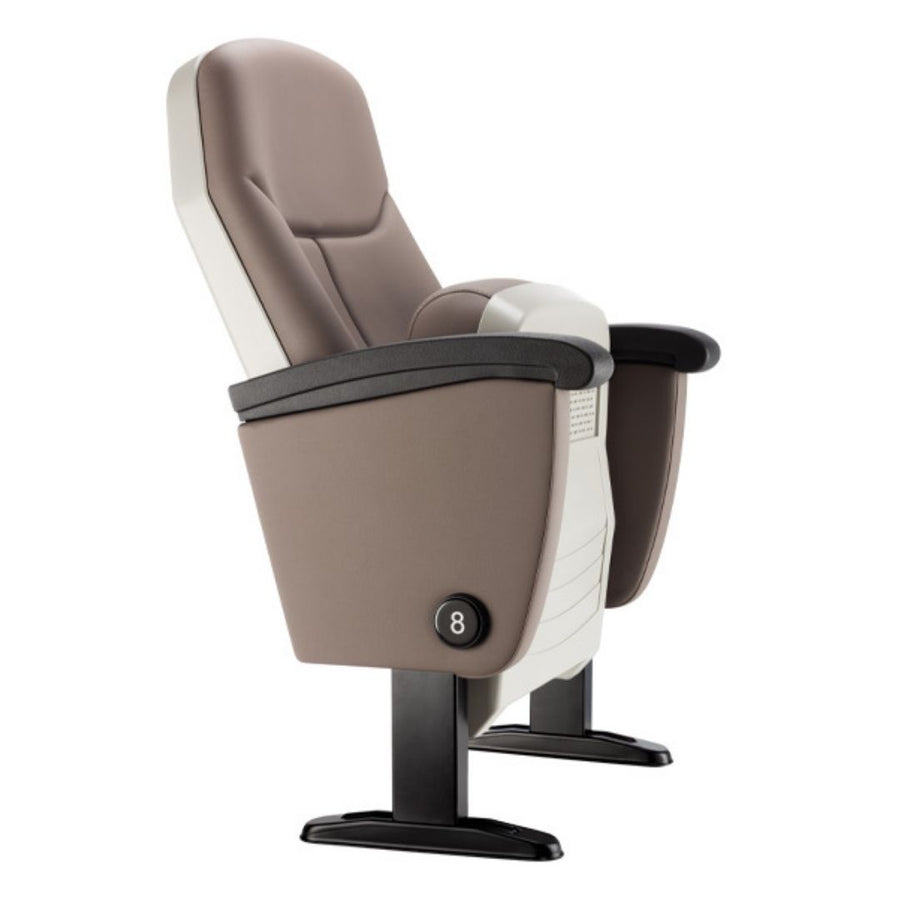

ARMCHAIR TOP 5036 | COMMERCIAL ARMCHAIRS
The TOP 5036 is a modular armchair with a folding seat. This armchair is made up of completely interchangeable elements.
The seat and backrest are composed of two molded polyurethane foam blocks that incorporate an internal metal structure. The upholstery can be completely integrated into the foam using the system Integral Form , seamless.
The backrest and seat cushion are anatomically shaped to ensure maximum comfort. The seat cushion has no grooves of any kind to prevent the accumulation of dirt.

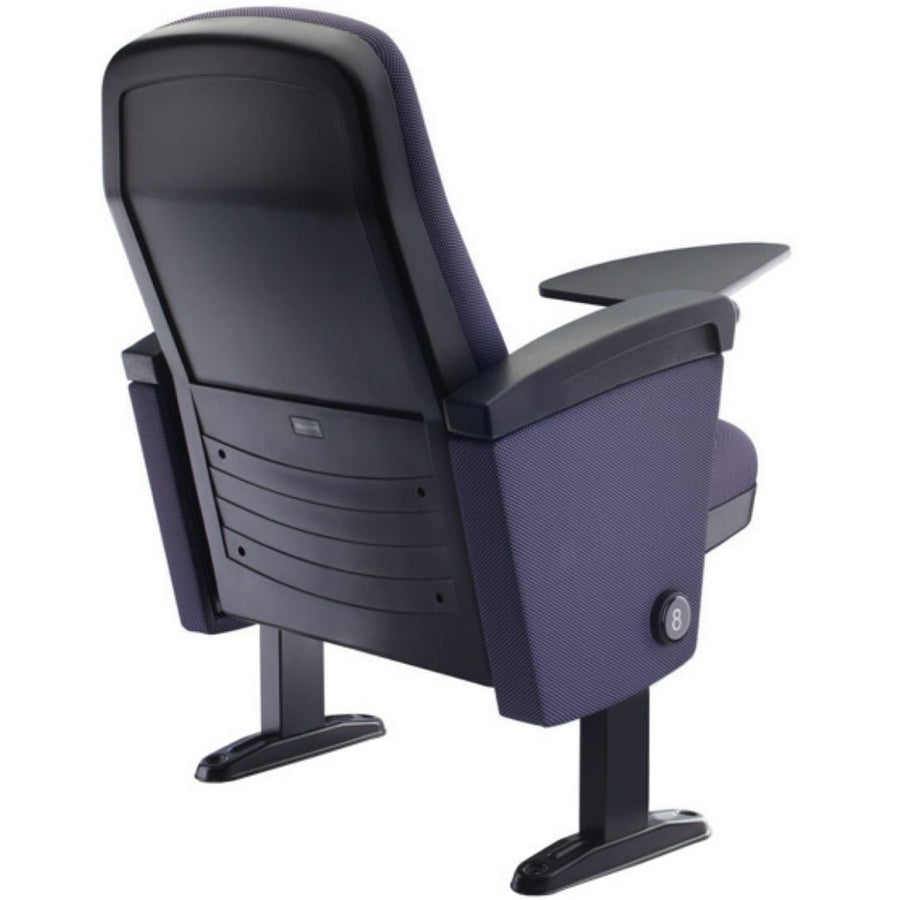

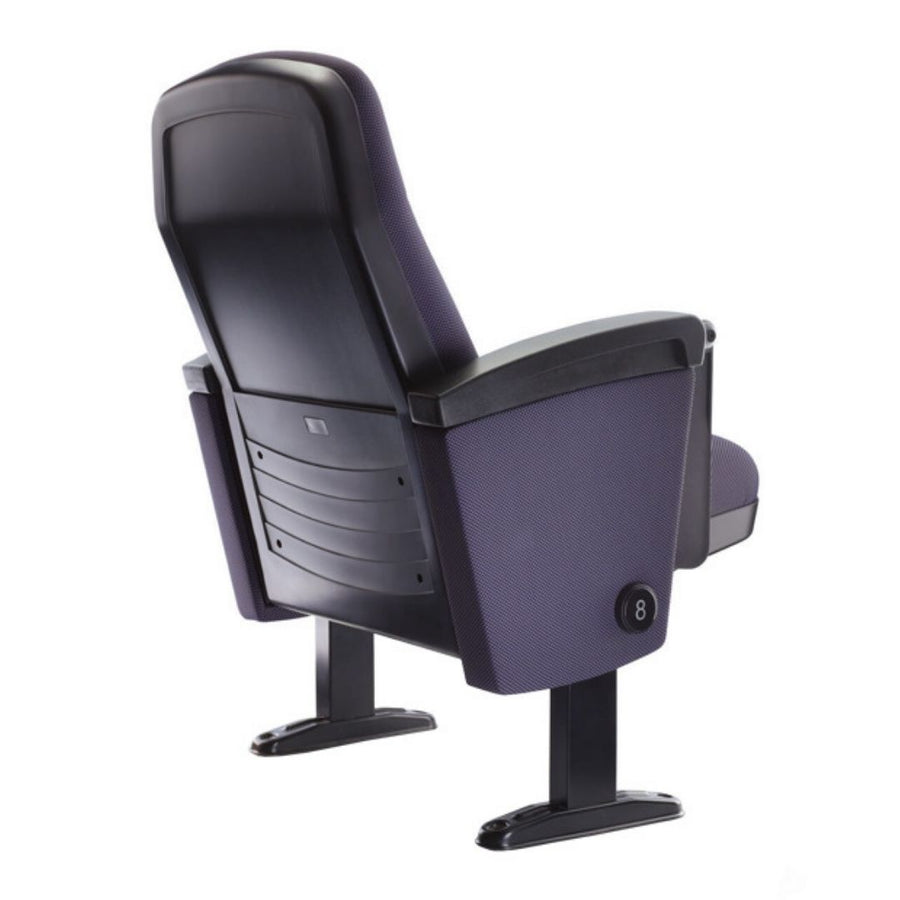

The seat and backrest have a fully washable polypropylene back shell that prevents scratches and dirt from appearing on the rear upholstery. Optionally, these shells can be upholstered.
The seat folds automatically using an extremely quiet double spring system located within the seat base, this way the space is always kept tidy and a quiet environment is ensured when an attendant vacates their seat.
The seat is mounted on two metal feet and fixed to the floor by a base that can adapt to different inclinations.
The arms are double injected, combining polypropylene for the rigid parts and a "soft" elastomer on the surface of the armrest. Optionally, a polypropylene writing stand, the PLX table with anti-panic folding system, can be added to the armrest.
Technical specifications
› Types of environments
- Congress centers.
- Auditoriums.
- Corporate rooms.
- Universities.
- Stadiums.
- Sand.
- Worship centers.

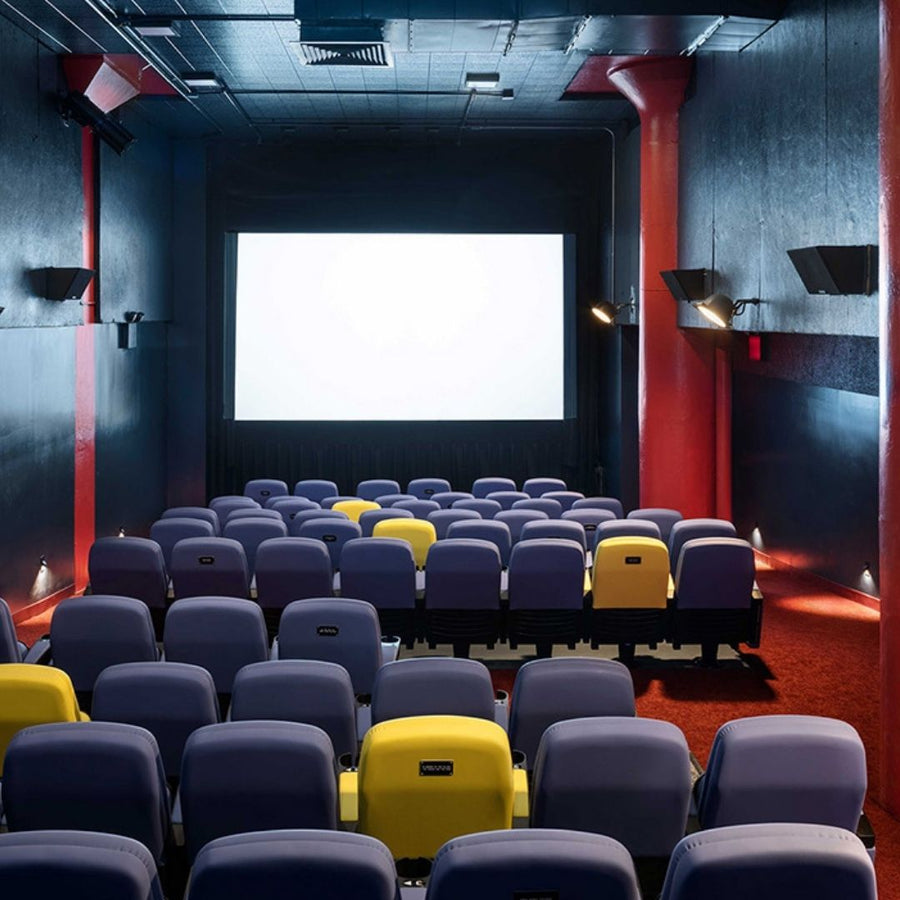

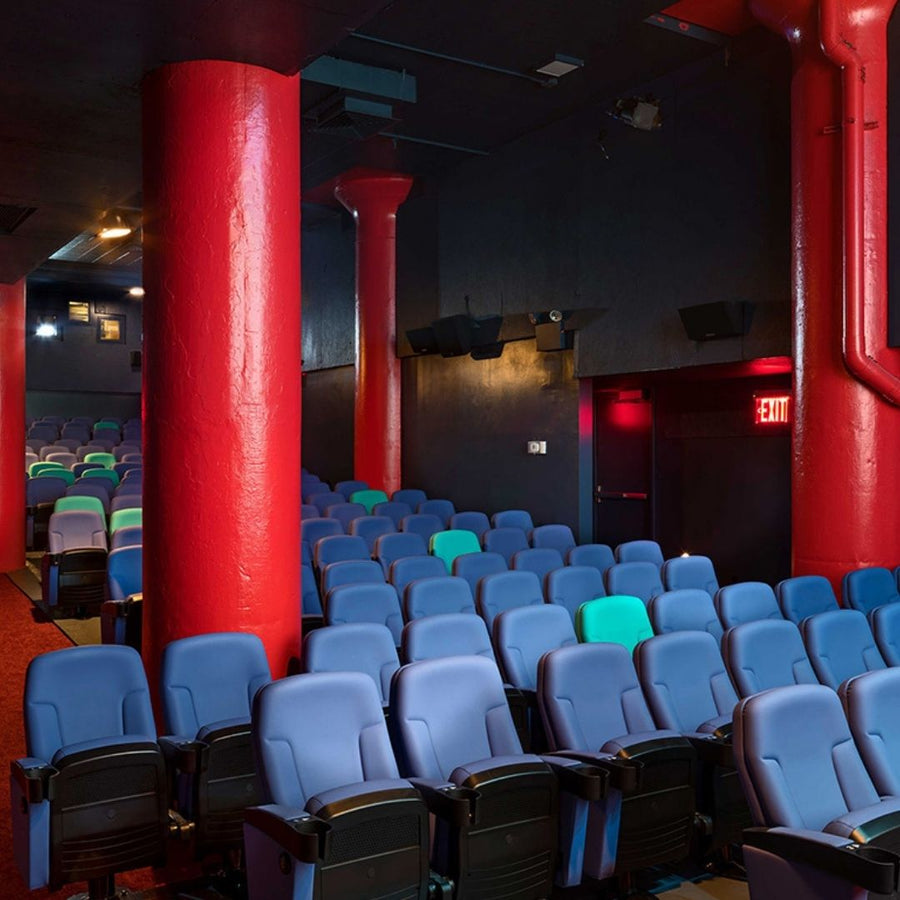

- Cinemas.
> Structure
- Made of steel tube and sheet, arc welded with continuous wire.
> Polyurethane foam
- Seat density: 60-65 Kg/m3.
- Backing density: 50-55 Kg/m3.
> Paint
- Electrostatic polyester powder paint.
- Paint thickness: 70-80 microns.
- Grid adhesion according to UNE-EN ISO 2409: 100%.
› Upholstery
- Fire reaction standards:
- Spain: UNE-EN 1021 Parts 1 and 2.
- France: NF D 60-013.
- Italy: UNI 9175 Class 1.IM.
- Germany: DIN 66084.
- USA: CAL TB 117.
> Polypropylene
- Material: Polypropylene Copolymer IF-727.
- Tensile strength according to ISO 527-2: 26 Mpa.
- Modulus of elasticity according to ISO 527-2: 1250 Mpa.
> Fire resistance
- BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
- USA: CAL TB 133 (with approved fabric).
› Resistance and durability classification
- UNE-EN 12727 Level 4 (Severe use).
Delivery Time: Consult
Place of Origin: Spain
Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
