ARMCHAIR TOP 5043 | COMMERCIAL ARMCHAIRS

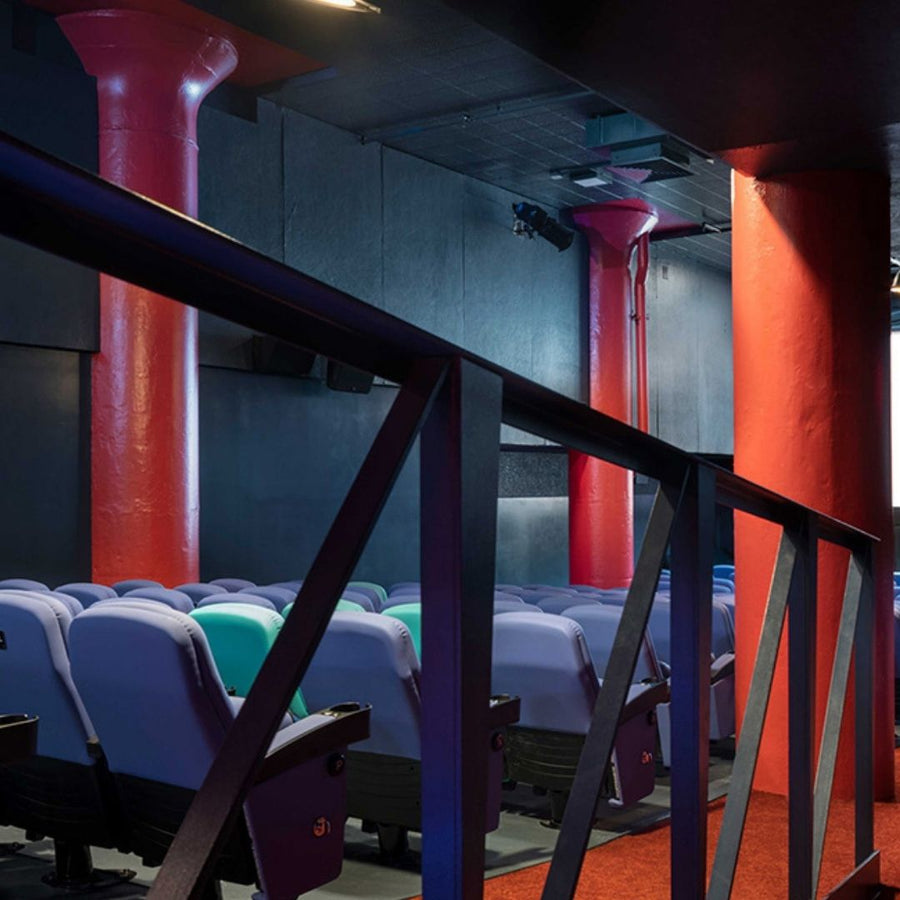

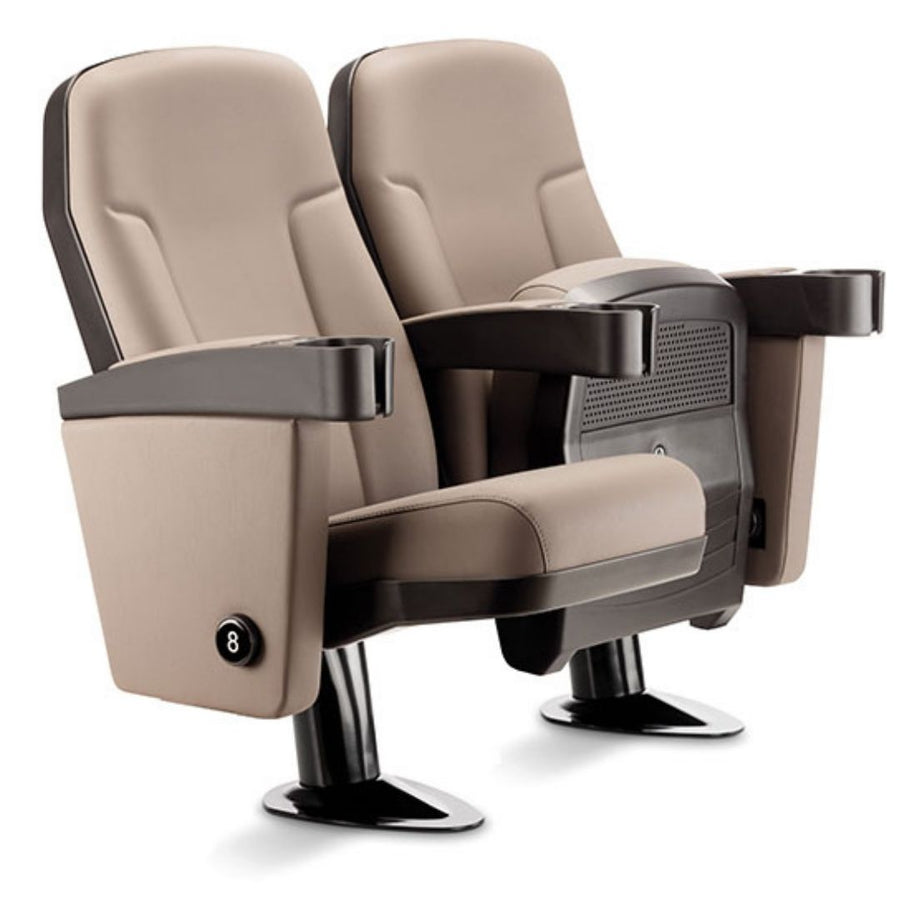

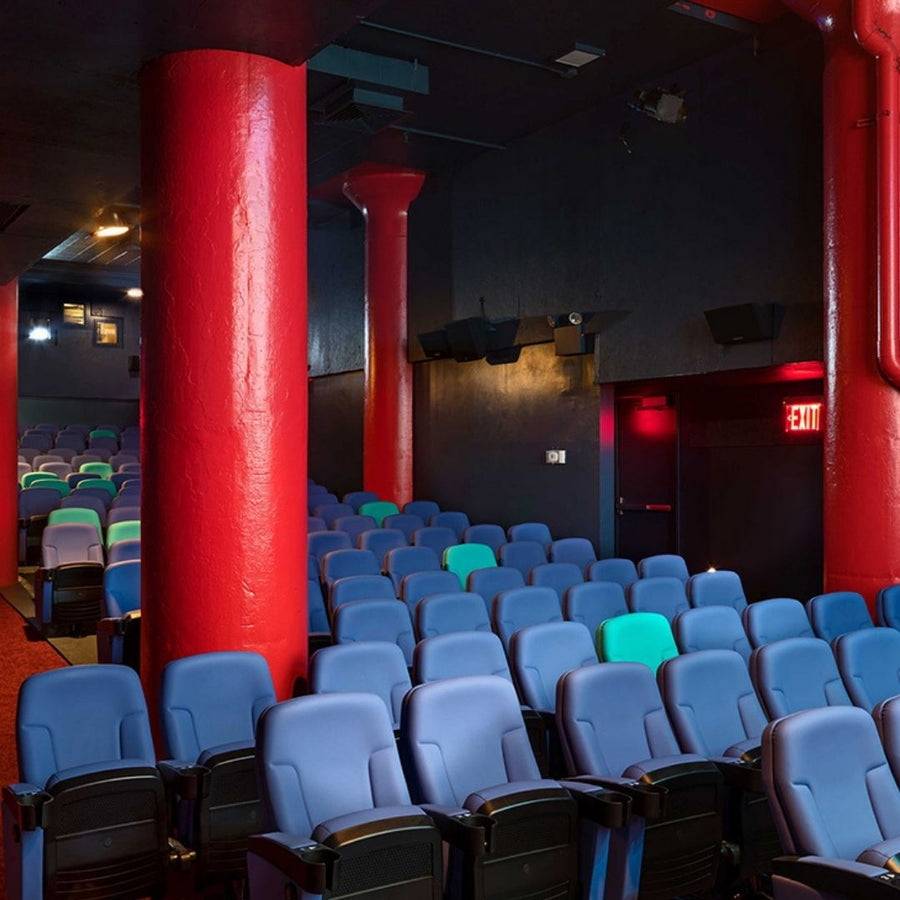

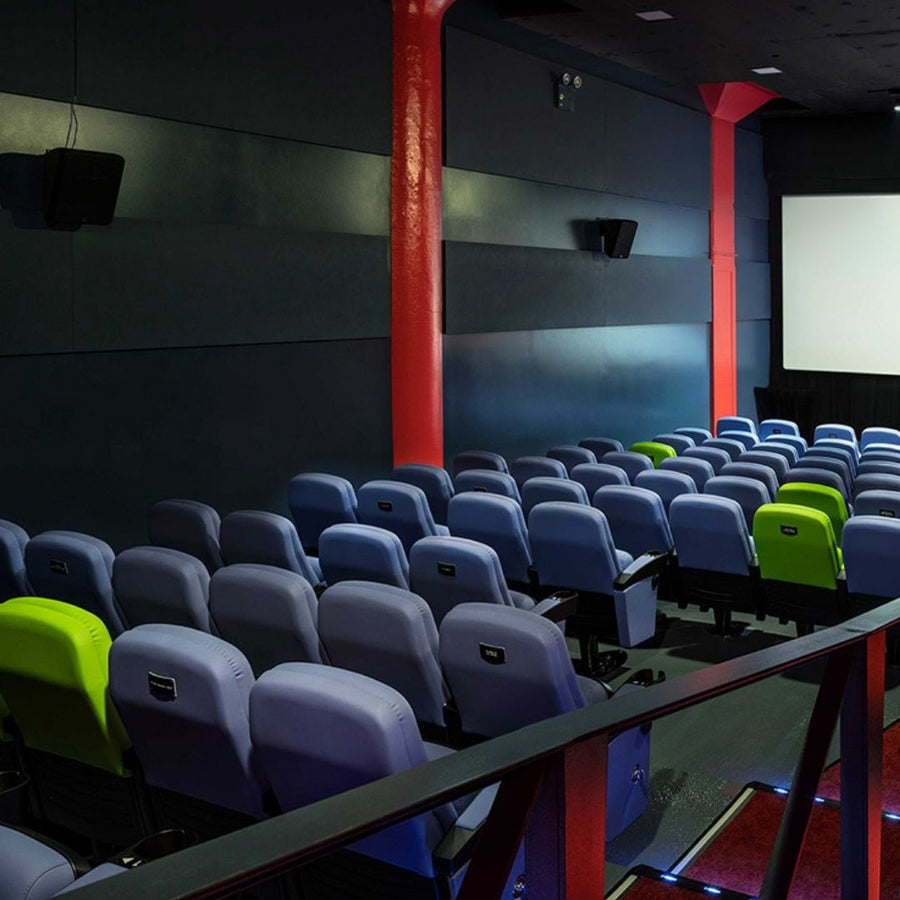

The TOP 5043 is a modular armchair with an automatic folding seat, made up of completely interchangeable elements. This Figueras model has been specially designed for cinemas as well as for the most exclusive areas of stadiums and arenas.

The seat and backrest are composed of two blocks of molded polyurethane foam, with an internal metal structure and the upholstery fully integrated into the foam using the patented system. Integral Form , without seams or trims.

The backrest and seat padding are anatomically shaped to ensure user comfort. The seat padding has no grooves of any kind to prevent the accumulation of dirt. Optionally, the backrest can incorporate a headrest.

The seat, backrest and headrest have a polypropylene back shell that is fully washable, preventing scratches and dirt from appearing on the rear upholstery.

The seat folds automatically using an extremely quiet double spring system located inside the seat base, keeping the space always tidy and ensuring a quiet environment when the user gets up.

The seat is mounted on a central foot and supported by a rigid bridge that ensures the stability of the rows.

The armrests are double injected, combining polypropylene in the rigid parts and a "soft" elastomer on the surface of the armrest. A coaster is incorporated in the front part. Optionally, the pads can be upholstered.

Top

Technical specifications

 Types of environments

  • Congress Center.
  • Auditoriums.
  • Corporate rooms.
  • Universities.
  • Stadiums.
  • Sand.
  • Worship centers.
  • Cinemas.

    > Structure

    • Made of steel tube and sheet, arc welded with continuous wire.

    > Polyurethane foam

    • Seat density: 60-65 Kg/m3.
    • Backing density: 50-55 Kg/m3.

    > Paint

    • Electrostatic polyester powder paint.
    • Paint thickness: 70-80 microns.
    • Grid adhesion according to UNE-EN ISO 2409: 100%.

    › Upholstery

    • Fire reaction standards:

    - Spain: UNE-EN 1021 Parts 1 and 2.

    - France: NF D 60-013.

    - Italy: UNI 9175 Class 1.IM.

    - Germany: DIN 66084.

    - USA: CAL TB 117.


        > Polypropylene

        • Material: Polypropylene Copolymer IF-727.
        • Tensile strength according to ISO 527-2: 26 Mpa.
        • Modulus of elasticity according to ISO 527-2: 1250 Mpa.

        > Fire resistance

        • BS 5852. Clause 12. Ignition sources 0, 1 and 5. (with approved fabric).
        • USA: CAL TB 133 (with approved fabric).

        › Resistance and durability classification

        • UNE-EN 12727 Level 4 (Severe use).


        Delivery Time: Consult
        Place of Origin: Spain

        Shipping Type: Sea and Air (Note: The actual transportation time will be defined at the time of purchase).
